I N S T A L L A T I O N M A N U A L
ADRENALINE

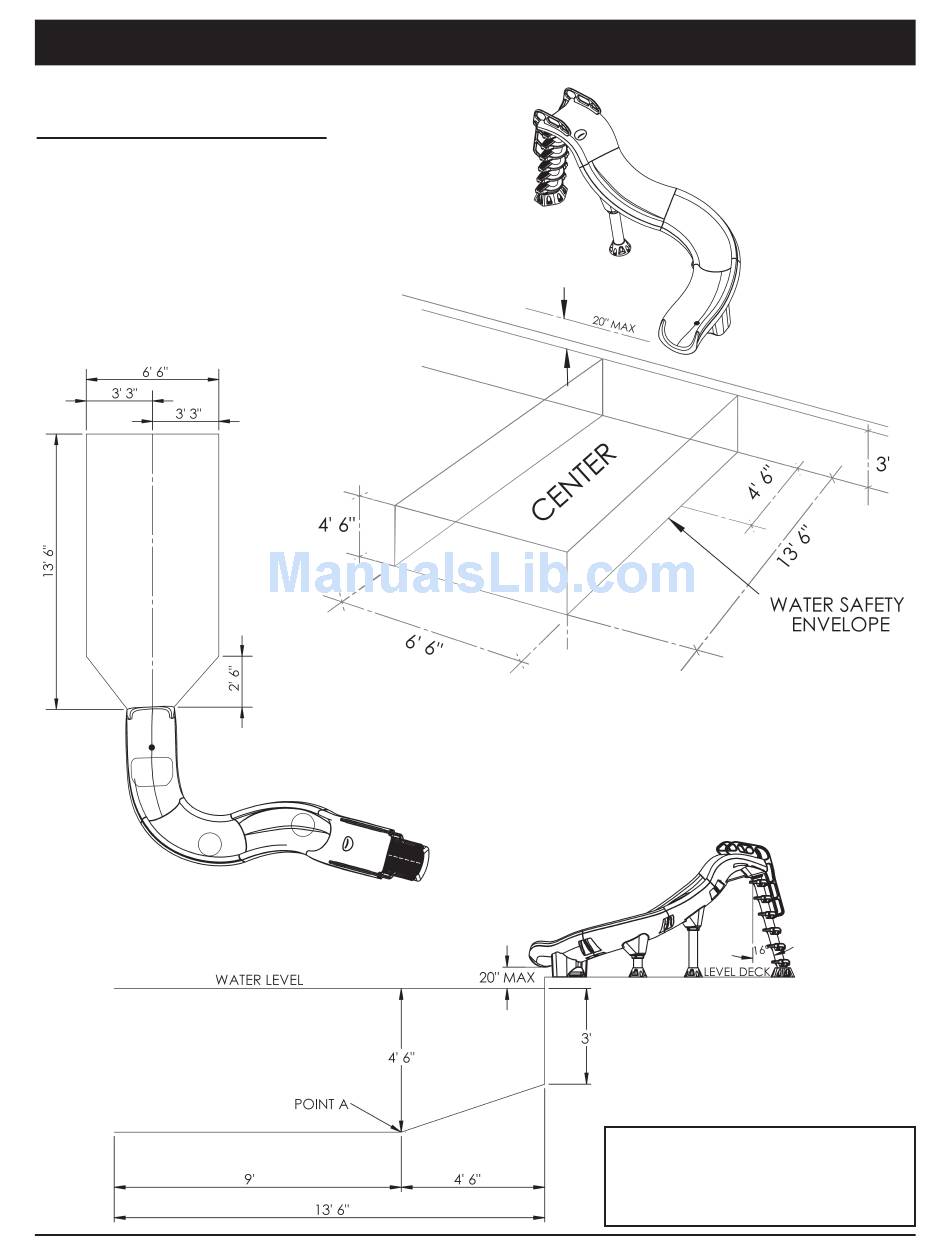

WATER SAFETY ENVELOPE:

A minimum water depth of three feet (3') under the exit
of the slide which increases to a depth of four feet (4'6")
at point A which is located four feet six inches (4'6")
from the back wall of the pool. A minimum depth of
four feet (4'6") must be maintained at a distance of
nine feet (9') along the centerline of the slide from point
A. The above described water depth profile shall
extend a minimum of three feet three inches (3'3") on
either side of the centerline of the slide.
(See Diagrams A, B & C)
DIAGRAM C
(NOT TO SCALE)
Minimum Water Safety Envelope
ADR1-IM Rev. 4/16 (ADR-INSTALL)
DIAGRAM B
(NOT TO SCALE)
Minimum Slide Clearance Area
4
A D R E N A L I N E ™ S L I D E
DIAGRAM A
(NOT TO SCALE)
ALL SLIDES SHOULD
BE GROUNDED
Check your local electrical
code requirements.
