Water Safety Envelope - Inter-fab ZOOMERANG SLIDE Assembly/Installation Instructions

I N S T A L L A T I O N M A N U A L
ZOOMERANG

WATER SAFETY ENVELOPE:

A minimum water depth of three feet (3') under the exit
of the slide which increases to a depth of three feet six
inches (3'6") at point A which is located four feet six
inches (4'6") from the back wall of the pool. A minimum
depth of three feet six inches (3'6") must be maintained
at a distance of three feet six inches (3'6") along the
centerline of the slide from point A. The above described
water depth profile shall extend a minimum of three feet
(3') on either side of the centerline of the slide.

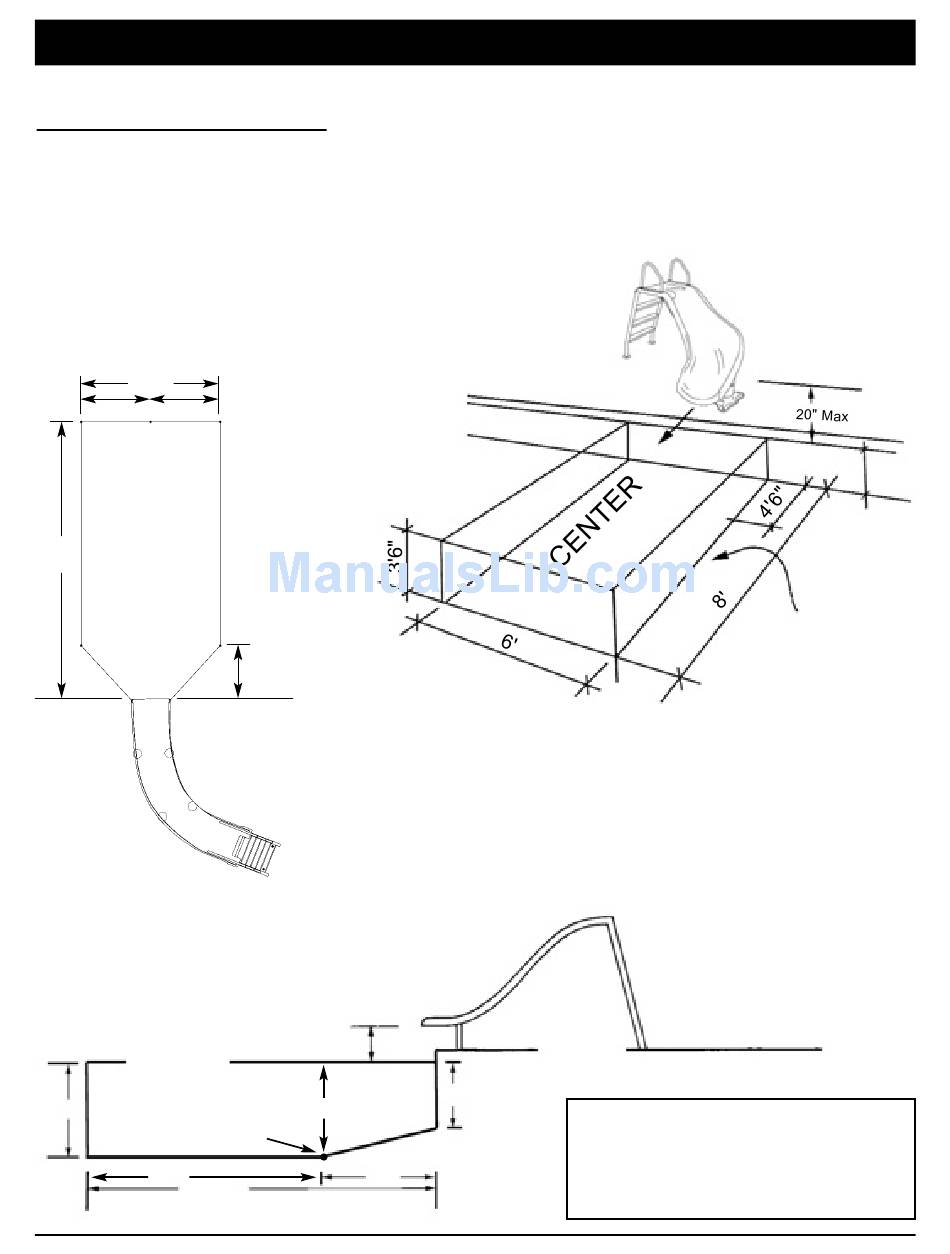

(See Diagrams A, B & C)
6'
3' 3'
8'
C/L
DIAGRAM C
(NOT TO SCALE)
Minimum Water Safety Envelope
Water Level
3'6"
3'6"
8'
ZOOM-IM Rev. 9/09 (SBK-INSTAL ZOOM)
2'6"
DIAGRAM B
(NOT TO SCALE)
Minimum Slide
Clearance Area
20" Max
3'6"
Point A
4'6"
Z O O M E R A N G ™ S L I D E
Level Deck
3'
ALL SLIDES SHOULD
Check your local electrical
code requirements.
3
DIAGRAM A
(NOT TO SCALE)
WATER SAFETY
ENVELOPE
BE GROUNDED
3'
