Storage server components

The following sections show the components of the storage server.
The hot-swap features of the storage server enable you to remove and replace hard
disk drives, power supplies, RAID controllers, and fans without turning off the storage
server. Therefore, you can maintain the availability of your system while a hot-swap
device is removed, installed, or replaced.

Front view

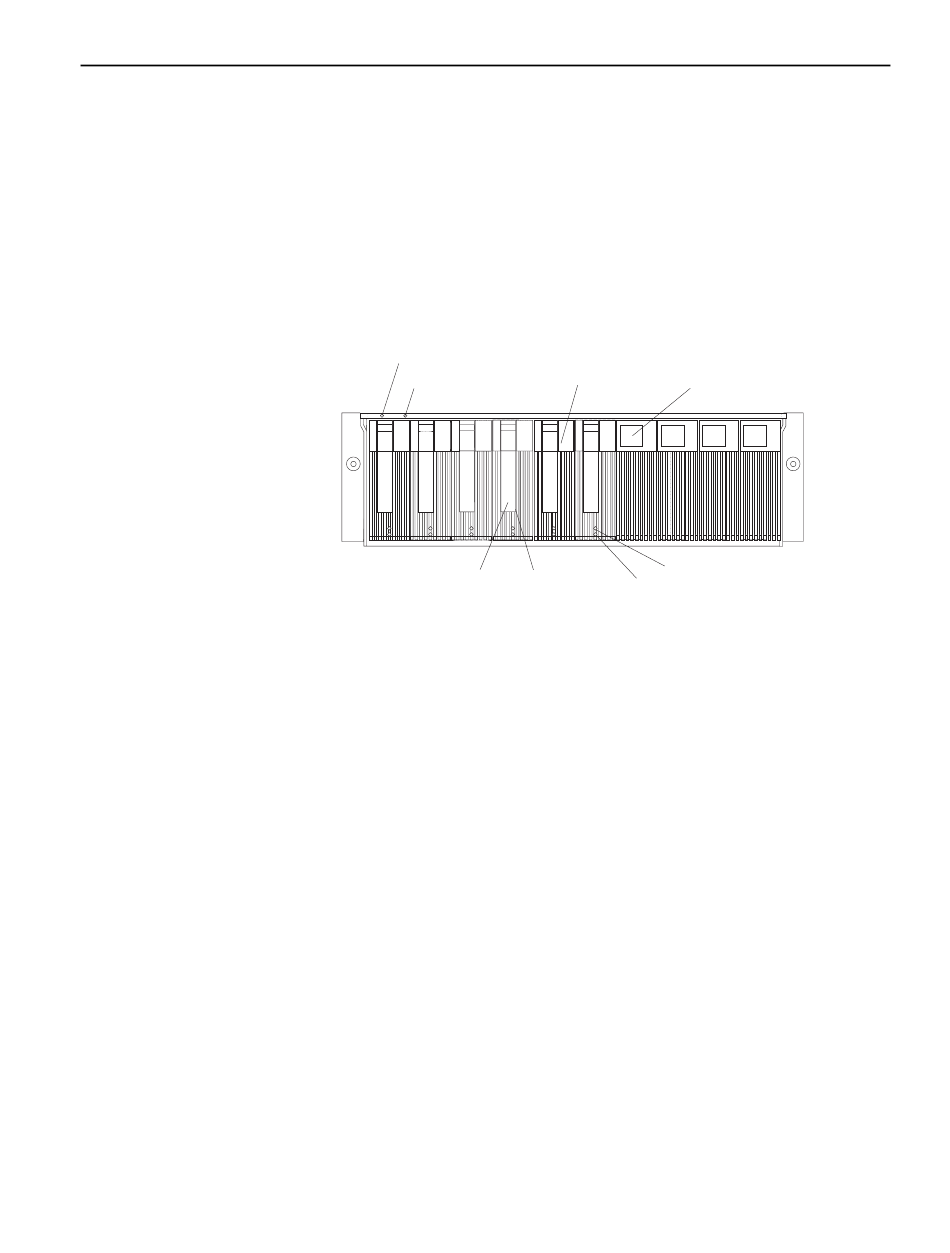

The following illustration shows the components and controls on the front of the
storage server.
Power-on LED
General-system-error LED
Hot-swap drive CRU
Filler panel
Drive activity LED
Drive fault LED
4
IBM FAStT200 and FAStT200 HA Storage Servers Installation and User's Guide
Power-on LED
General-system-
error LED
Tray handle
When on, this green light indicates that the unit has good dc power.
When on, this amber LED indicates that the storage server has a fault, such
as in a power supply, fan unit, or hard disk drive.
Note: If the General-system-error LED is on continuously (not flashing), there
is a problem with the storage server. Use the storage-management
software to diagnose and repair the problem. For more information,
see "Checking the LEDs" on page 29.
You can install up to 10 hot-swap drive customer replaceable units (CRUs) in
the storage server. Each drive CRU consists of a hard disk drive and tray.
The storage server comes without drives installed and contains filler panels in
the unused drive bays. Before installing new drives, you must remove the
filler panels and save them. Each of the 10 bays must always contain either a
filler panel or a drive CRU. Each filler panel contains a filler piece for use with
a slim drive.
Each drive CRU has a green Drive activity LED. When flashing, this green
LED indicates drive activity. When on continuously, this green LED indicates
that the drive is properly installed.
Each drive CRU has an amber Drive fault LED. When on, this amber LED
indicates a drive failure. When flashing, this amber LED indicates that a drive
identify or rebuild process is in progress.
Hot-swap Filler panel
drive CRU
Drive activity LED
Latch
Drive fault LED
