Latch
Tray handle
For information on installing and replacing drive CRUs, see "Working with hot-swap
drives" on page 37. For more information about the LEDs, see "Checking the LEDs"
on page 29.
Back view

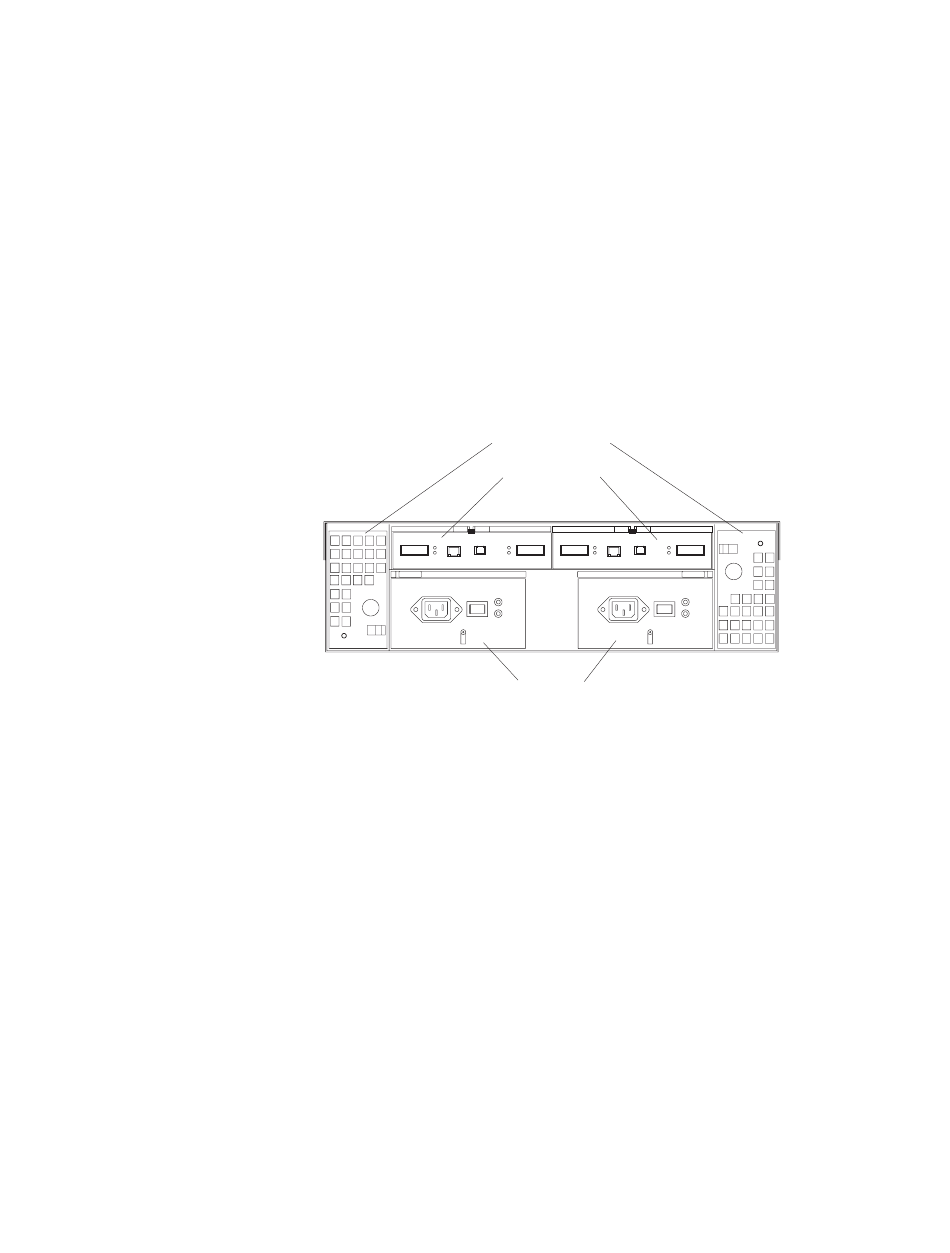

The following illustration shows the components at the back of the IBM FAStT200 HA
Storage Server.
Note: If your storage server is a Model 1RU, there is only one RAID controller. There
RAID controller
Hot-swap fans
Hot-swap power supplies
This multipurpose blue latch releases or locks the drive CRU in place.
You can use this multipurpose handle to insert and remove a drive CRU in the
bay.
is a blank panel in the second RAID controller opening. The blank panel must
remain in place to maintain proper cooling.
The storage server comes with one or two hot-swap RAID controllers. Each
RAID controller contains two ports for Gigabit Interface Converters (GBICs)
which connect to the Fibre Channel cables. One GBIC connects to a host
system. The other GBIC is used to connect additional expansion units to the
storage server.
Each RAID controller also contains a battery to maintain cache data in the
event of a power failure. For more information, see "Cache memory and RAID
controller battery" on page 34.
The storage server has two interchangeable hot-swap and redundant fan
CRUs. Each fan CRU contains two fans. If one fan CRU fails, the second fan
CRU continues to operate. Both fan CRUs must be installed to maintain
proper cooling within your storage server, even if one fan CRU is not
operational.
The storage server comes with two hot-swap power supplies. Both power
supplies must be installed to maintain proper cooling.
Hot-swap fan bays
Raid controllers
Hot-swap
power supplies
