Redundant host and drive loops

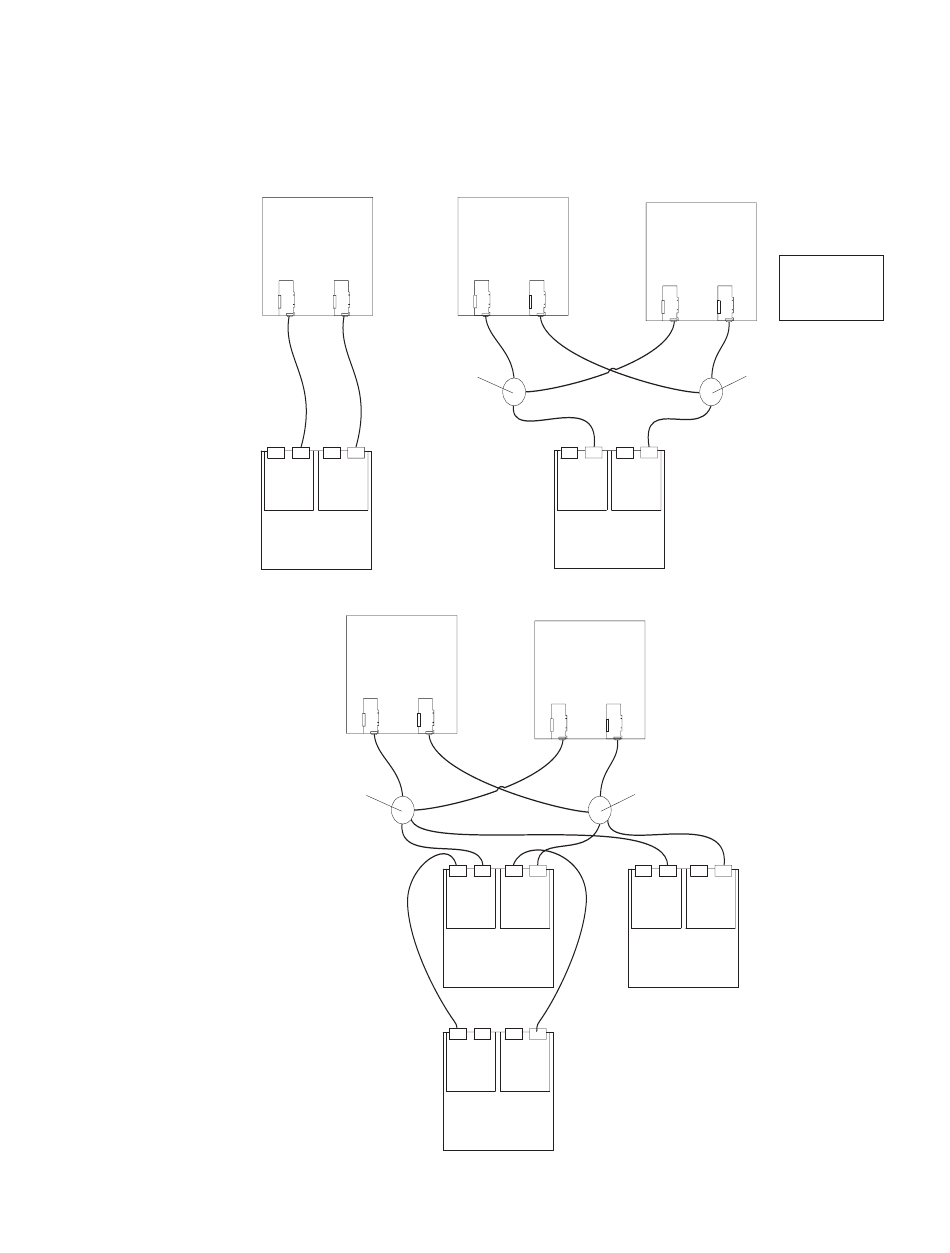

The following illustration shows examples of redundant host and drive loop Fibre
Channel configurations.
Note: These configurations have host and drive path failover protection and are
Figure 3. Redundant host and drive Fibre Channel loop configurations
12
IBM FAStT200 and FAStT200 HA Storage Servers Installation and User's Guide
recommended for high availability.
Host system
with two host
adapters
Managed hub
or switch
3542-2RU
Host system
with two host
adapters
Managed hub
or switch
(Expansion unit)
Host system
with two host
adapters
3542-2RU
Host system
with two host
adapters
Managed hub
or switch
3542-2RU
3560
Host system
with two host
adapters
Note: Node level
redundancy with
cluster software.
Managed hub
or switch
3542-2RU
