IBM FAStT200 Installation And User Manual page 93

5
Clip
nuts

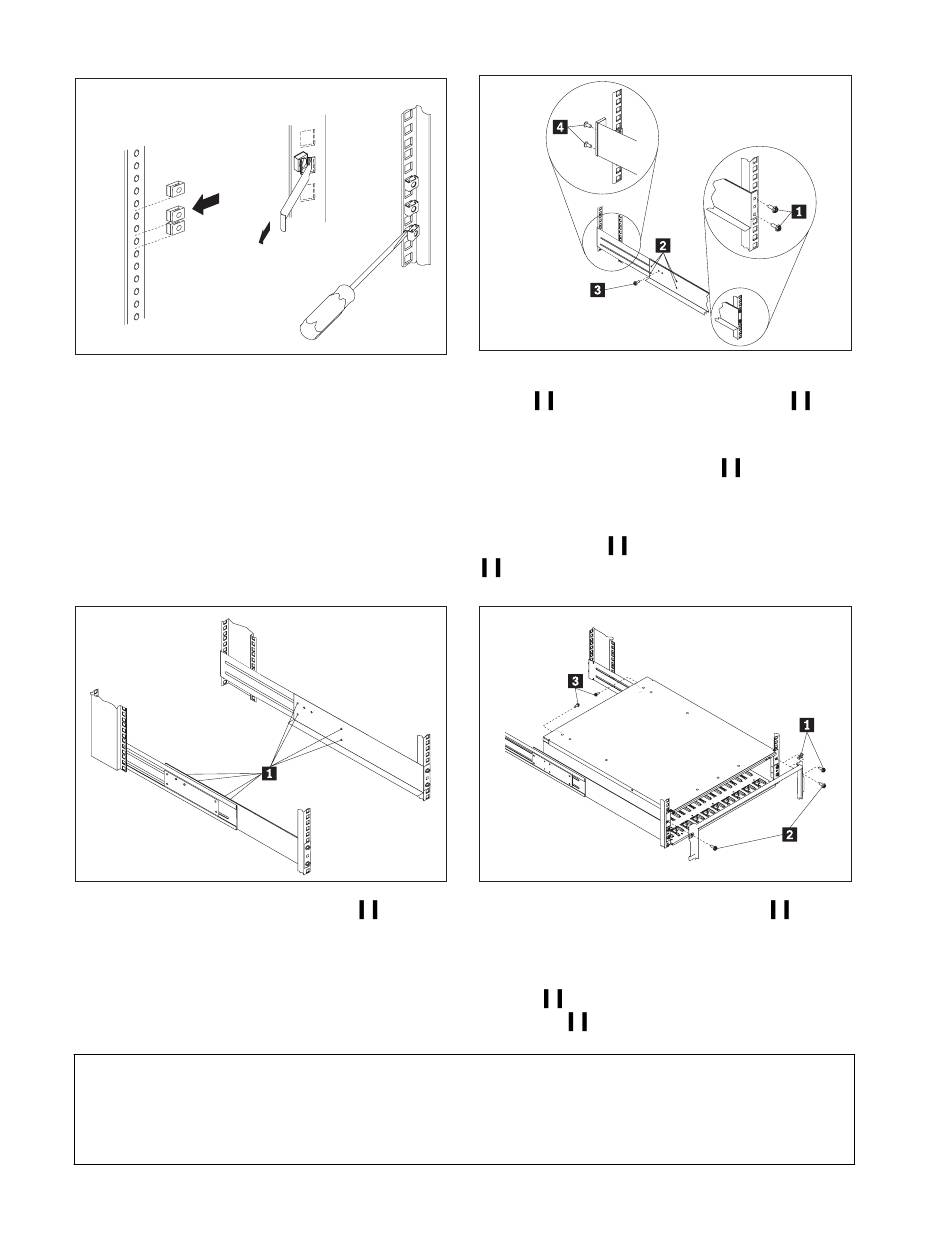

Use the attached template and stickers to
mark the appropriate holes on your rack; then,
install clip nuts or cage nuts as required for
your rack cabinet.
Note: Use the cage-nut-insertion tool or a
flat-blade screwdriver to install cage
nuts.
7
Tighten the rail adjustment screws 1 on both
rails.
9
Reverse step 1 through step 4 to reinstall the components that you removed; then, refer to your
storage server documentation to complete your installation. Store this information with your
storage server documentation for future use.
Cage
nuts
Cage
nuts
On the rail marked R, remove the 6-32 in.
screw 3 and loosen the four screws 2 ;
then, hold the front of the rail against the
outside of the right rack-mounting-flange and
loosely install two M6 screws 1 .
Extend the rear of the rail outside of the rear
rack-mounting-flange; then, install and tighten
two M6 screws 4 . Tighten the front screws
Remove the white screws and nuts 1 from
the storage server bezel; then, slide the
storage server into the rack. Align the bezel
locator pins and attach the bezel with two M6
screws 2 ; then, install and tighten the 6-32
in. screws 3 .
6
1 and repeat this step for the other rail.
8
Appendix B. Rack mounting template and instructions
75
