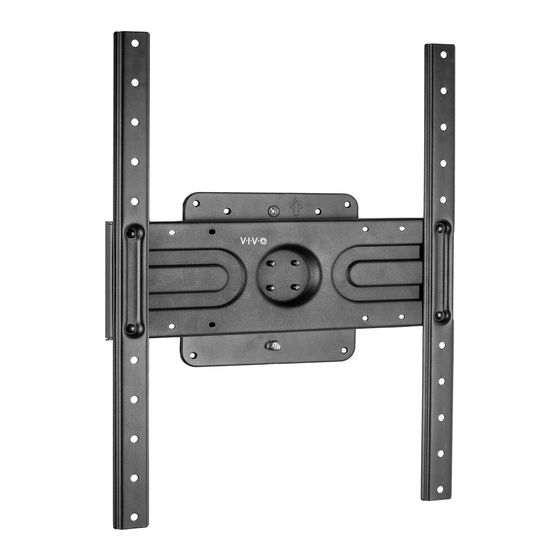

Rotating TV Wall Mount
Instruction Manual
SKU: MOUNT-VW080P
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-vw080p
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Related Manuals for Vivo MOUNT-VW080P
Summary of Contents for Vivo MOUNT-VW080P
- Page 1 Rotating TV Wall Mount Instruction Manual SKU: MOUNT-VW080P Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-vw080p GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Assembly Steps
CAUTION! DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us. com, email at help@vivo-us.com, or call us at 309-278-5303. - Page 4 STEP 2 OPTION A: WOOD STUD WALL Using the center holes on the mount, mark drilling locations. Use of a stud finder is highly recommended. Drill 2.4” (60mm) deep holes using a 3/16” (4.5mm) drill bit, and secure the mount to the wall using flat head screws (W-D) in upper two holes, and hex head screw (W-A) with washer (W-C) in the lower hole.
- Page 5 STEP 2 (Continued) OPTION B: CONCRETE/BRICK WALL Using the upper side holes and lower center hole on the mount, mark drilling locations. Drill 2.6” (65mm) deep holes using a 1/2” (12mm) drill bit, press anchors (W-B) into holes, and secure the mount to the wall using hex head screws (W-A) and washers (W-C).
- Page 6 STEP 4 With TV face down on a flat surface, secure assembled VESA brackets to the TV using bolts (M-A, M-B, M-C, M-D, M-E) and washers (M-F). Use spacers (M-G, M-H) between the TV and brackets if needed.
- Page 7 STEP 5 Carefully place the TV plate with brackets and TV into the opening on top of the mount until the latch has engaged. The cord may be hidden by attaching to any part of the steel mount. STEP 6 Freely rotate the TV to the desired position and adjust the tilt as desired.
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! AVG. RESOLUTION TIME : 5M 4S 309-278-5303 (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
