5.6 Dimensions

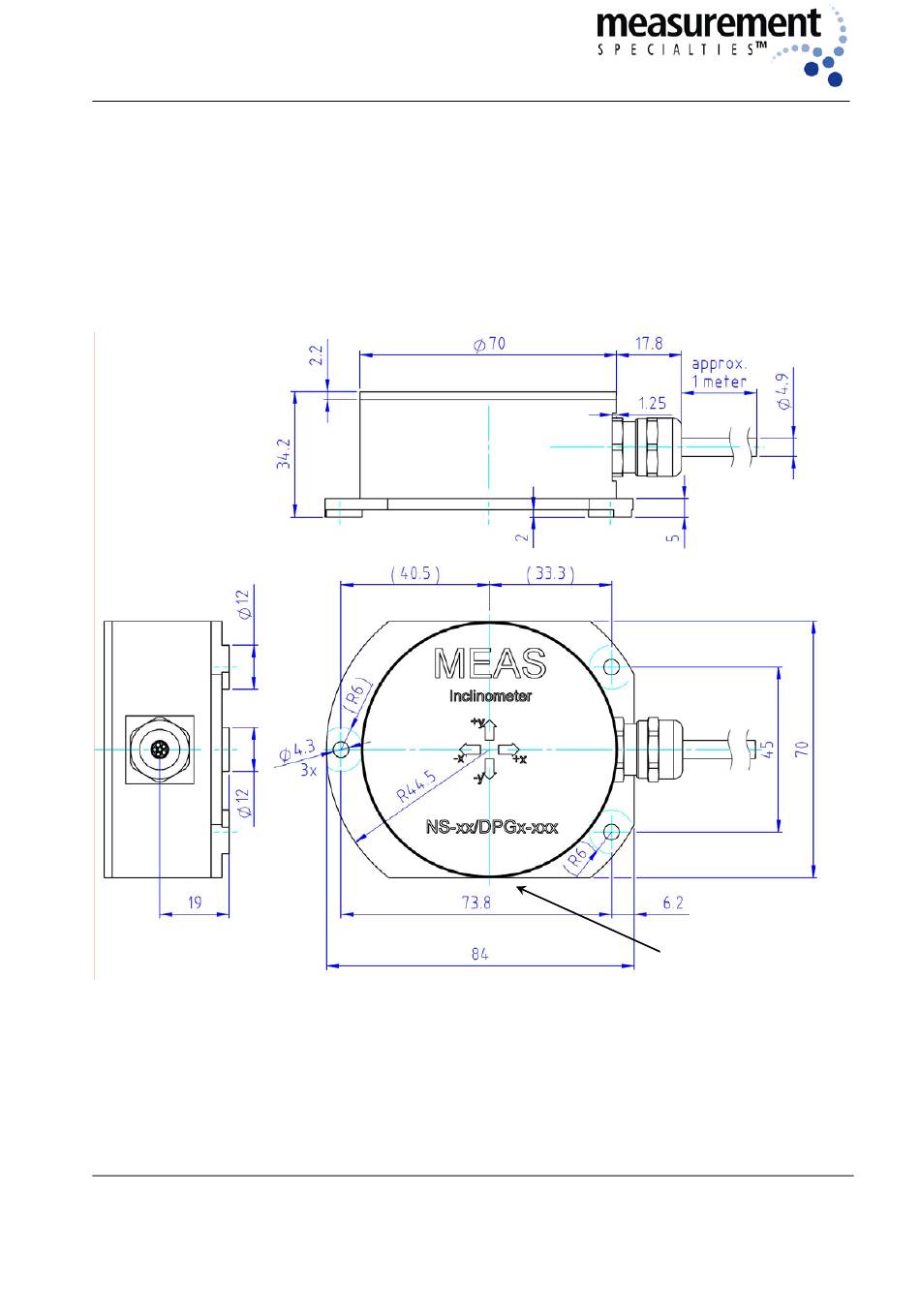

The mechanical dimensions of the module are shown in Fig. 5.2
Fig. 5.2 Top and lateral views with dimensions of the inclinometer with metric cable screw
