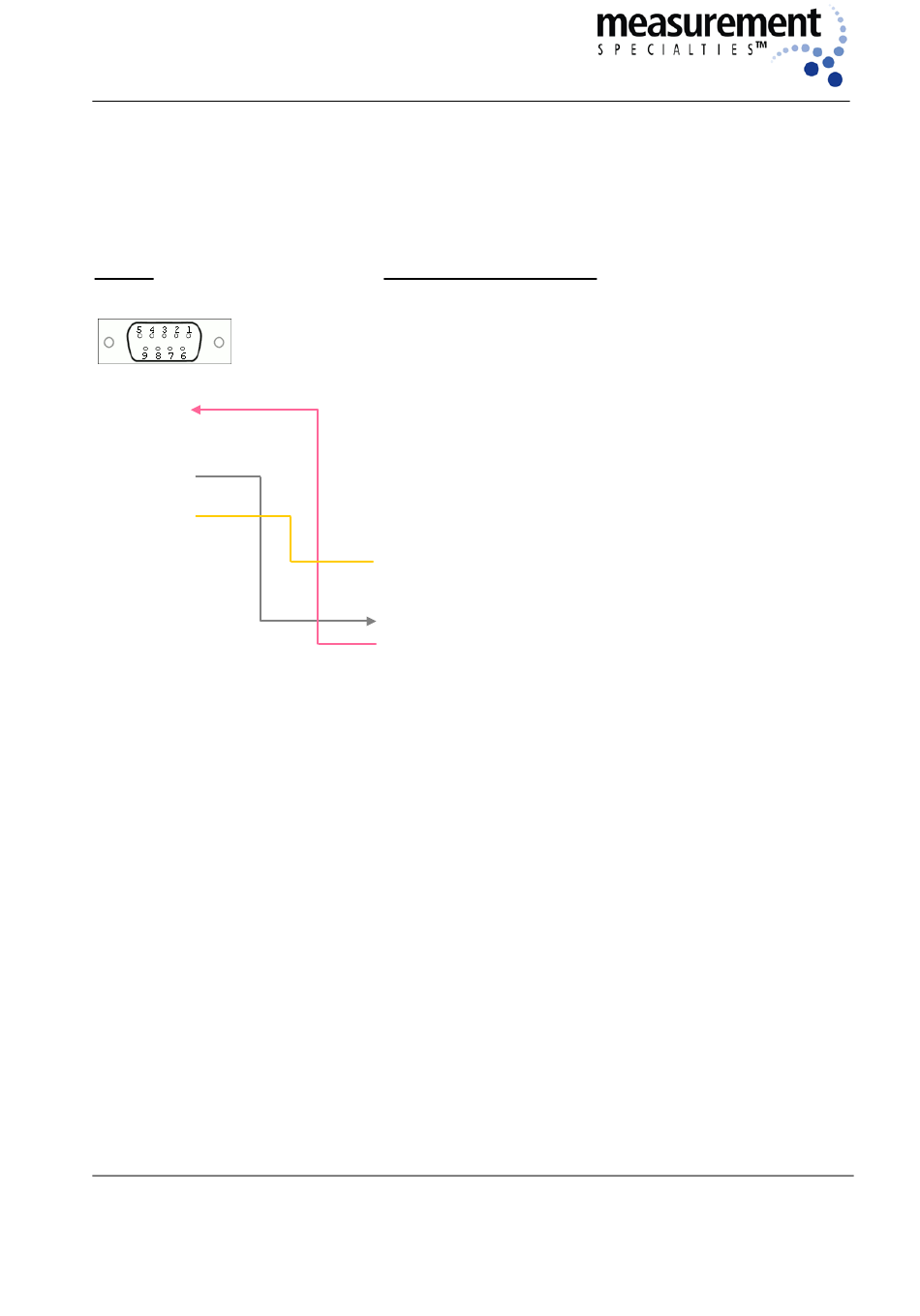

5.9 Connecting to a PC using an RS 232 interface

PC side
Sub D-connector 9 pins
Pin 2 RxD
Pin 3 TXD
Pin 5 GND
MEAS Deutschland GmbH
Hauert 13, D-44227 Dortmund, Germany
DPG-Series Inclinometer
Cable/wire of NS-xx/DPG2-x
white +Ub
brown Out
green Outy
yellow GND
grey RxD
pink TXD
www.meas-spec.com
9 of 15
July 2015
supply positive power supply
(use ext. supply via battery, accu
or power pack)
output analogue voltage output signal x-
axis
output analogue voltage output signal y-
axis
supply negative power supply, ground
(use ext. supply via battery, accu,
or power pack)
input Rx, RS232 digital serial signal
output Tx, RS232 digital serial signal
