5.7 Label information

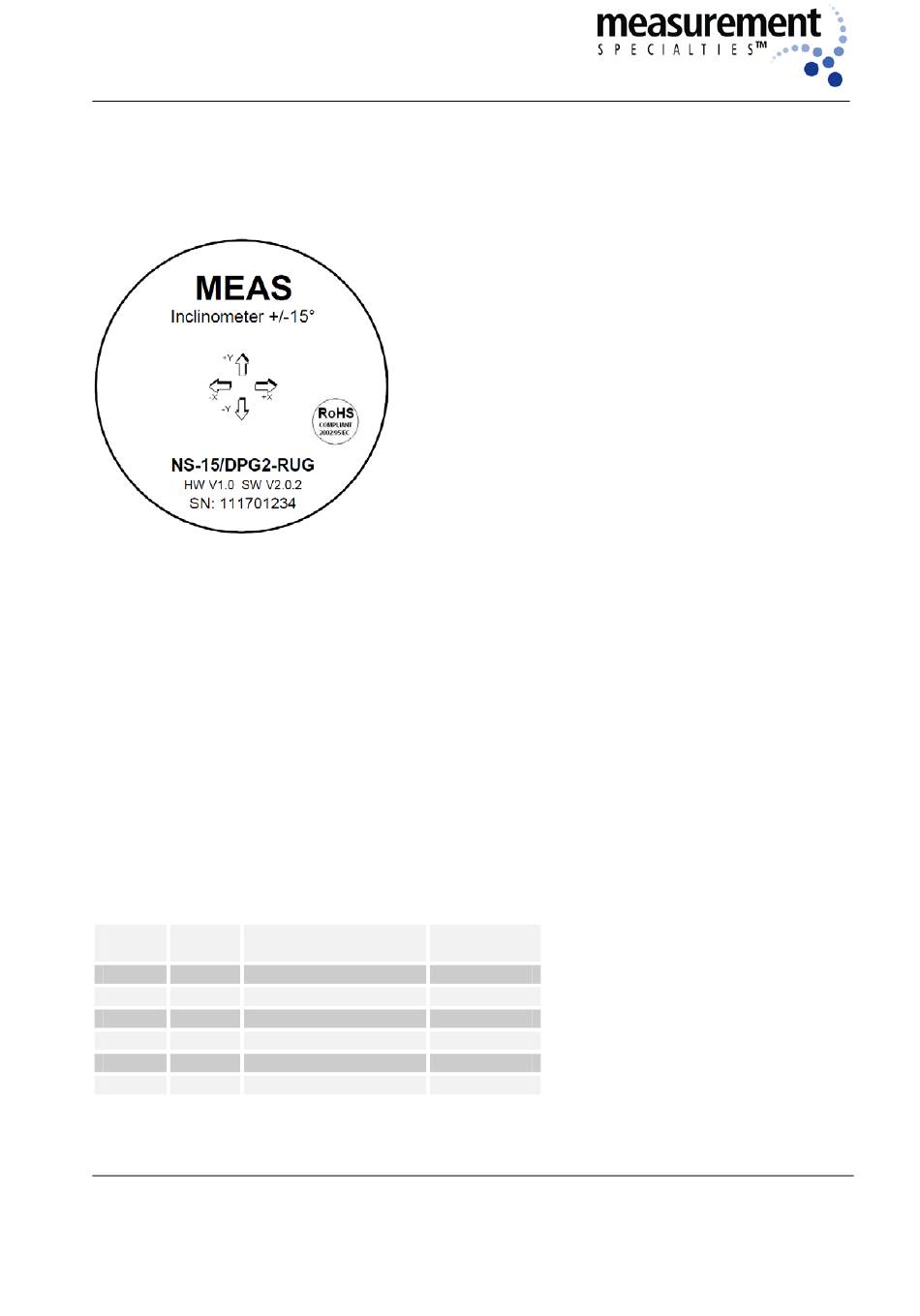

The label placed on top of the module contains the following information:
Type Code : see table in chapter 2.2
HW/SW Code : internal Hardware/Software-Versions
Serial No.: YYWWNNNNN
Serial Number consists of nine digits. YY shows the year of production (2011=11), WW the week of
the production and NNNNN the unique number for identification and traceability.

5.8 Cable and configuration

The inclinometer is delivered with a cable of approximately 1 m length.
Type of cable:
Conductor resistance:
Capacity:
Following configuration/cable color scheme is in use:
Cable Name
color
White Vcc Positive power supply
Yellow GND
Brown Out X
Green Out Y
Grey RxD
Pink TxD
MEAS Deutschland GmbH
Hauert 13, D-44227 Dortmund, Germany
DPG-Series Inclinometer
2
LiYCY 6x0.14mm
131 Ohm/km
90pF/m at 1kHz
Description
Supply, Input
Ground Supply, Input
Voltage output X
Voltage output Y
RS 232 input
RS 232 output
www.meas-spec.com
July 2015
Type
Output
Output
Input
Output
8 of 15
