Dimensions / Mounting/ Electrical Connections

5.1 Dimensions [mm] of the Dual Axis Unit

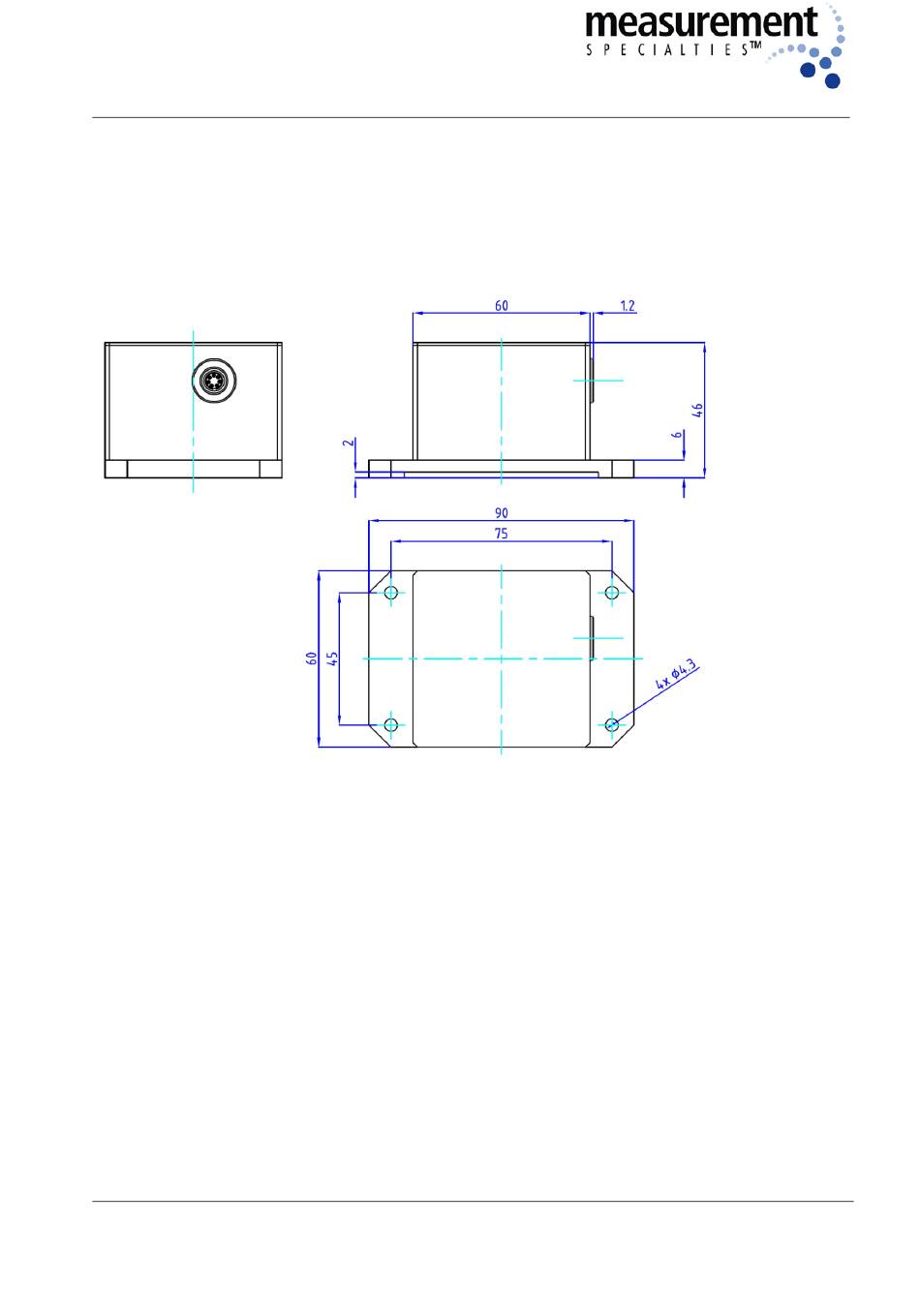

Fig. 5.1.1 View of the dual axis inclinometer housing and connector
