C200 Installation Guide

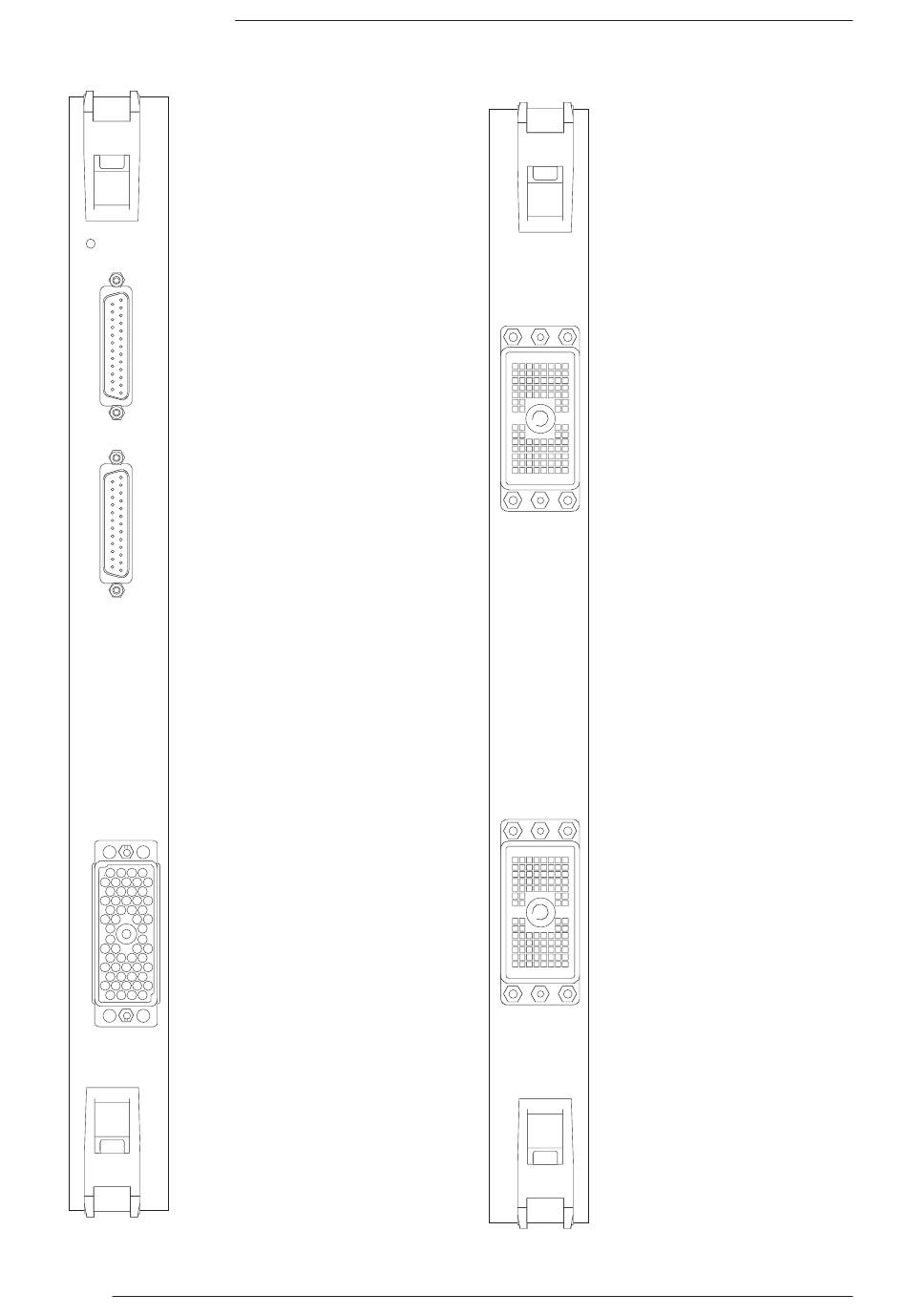

Micamp Input Card
+5V
SPLIT OUTPUTS
7-12
Split Output Connectors
25-pin D-type female
1-6
MIC IN
1 - 12
Microphone input Connector
Varicon 56-way female
Page 32
Analogue I/O Card
ANALOGUE IN
1 - 24
A1
Analogue Input Connector
DL96 female
ANALOGUE OUT
1 - 24
A1
Analogue Output Connector
DL96 female
