Appendix A - Wiring Sketches

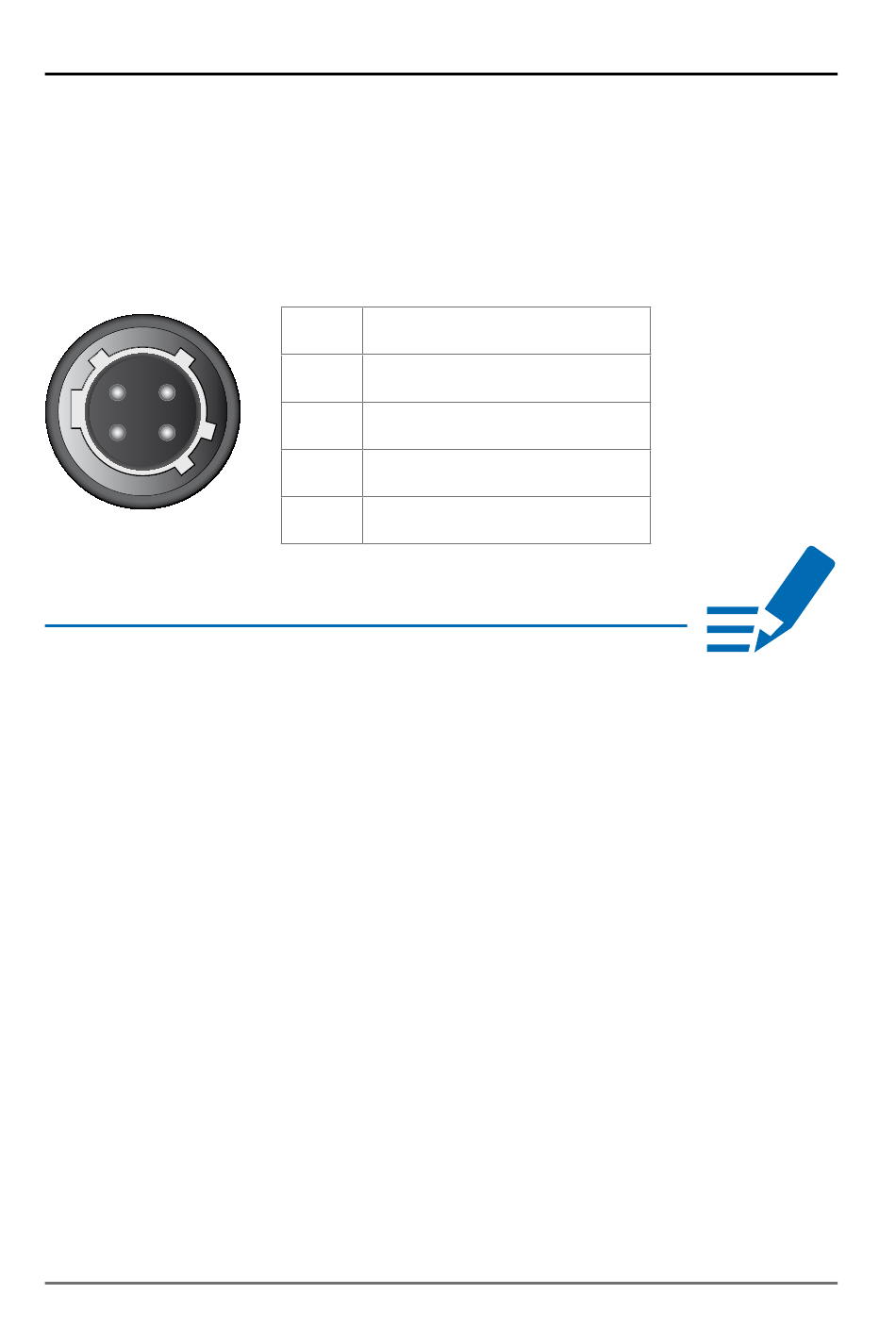

Hirose HR10 (DC PSU)

1 2
4 3
NOTE
To ensure proper operation all pins should be
connected.
Ground is connected with the chassis of the plug
(safety class 1).
EXBOX.AES Manual - Version 2.0
Pin Signal
1 DC +
2 DC +
3 DC -
4 DC -
