Sample Rates

Depending on the clock setting the scaling factor of
the sample rate has to be defi ned manually (MADI) or
is set by the AES input signal automatically.

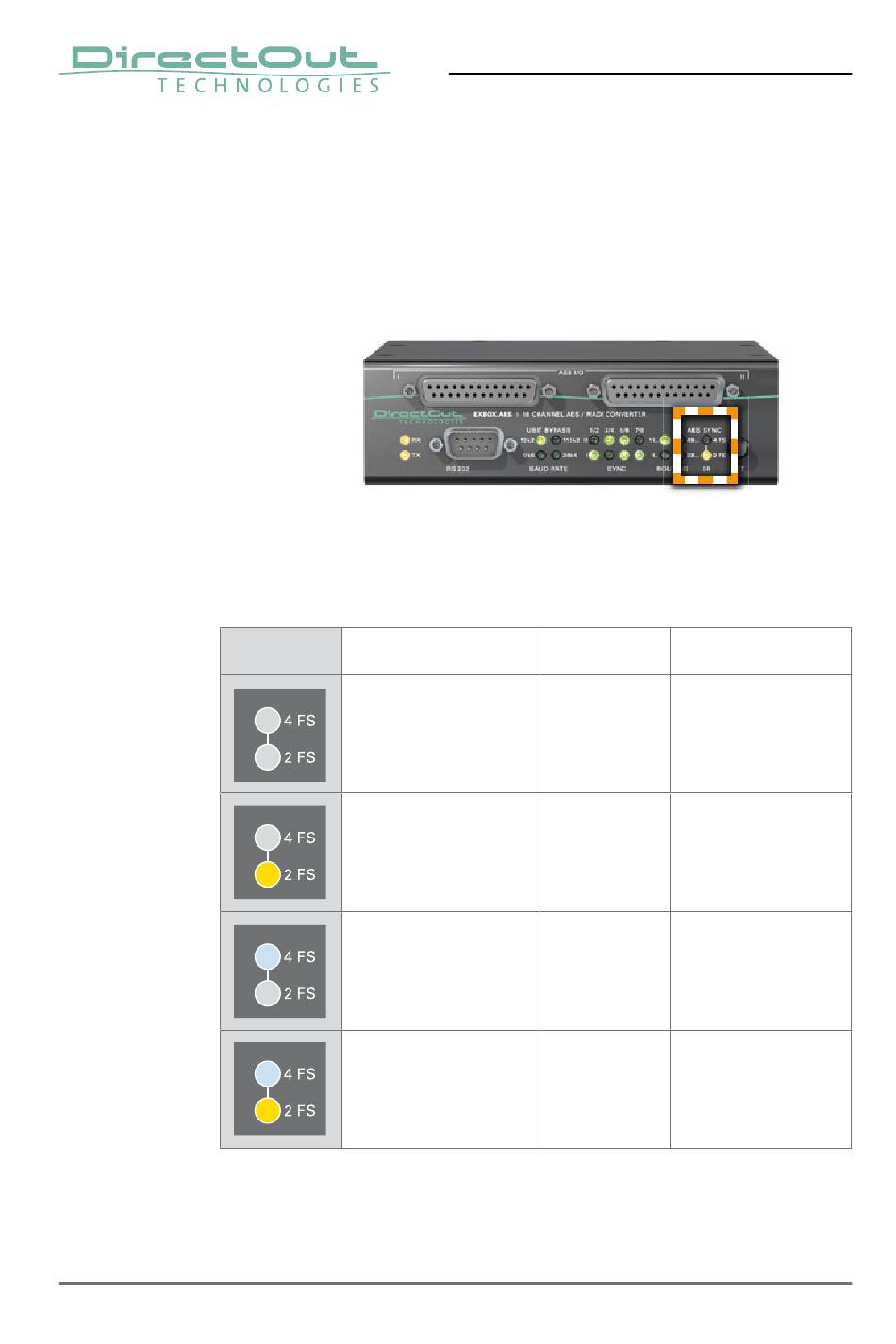

Two LEDs indicate the scaling factor and the implicit
setting of the clock source.
LED Code
4 FS = OFF
2 FS = OFF
4 FS = OFF
2 FS = ON
4 FS = ON
2 FS = OFF
4 FS = ON
2 FS = ON
CHAPTER 4: Operation
Setting
1 FS
2 FS
4 FS
AES
EXBOX.AES Manual - Version 2.0
Clock source
MADI input
MADI input
MADI input
AES input
