Embedder / De-Embedder

The local RS 232 port can both be used to embed
serial data into the MADI output signal and to
de-embed serial data from the MADI input signal. The
serial data is tunnelled by using the user bits of audio
channel 1 to 9.
RS 232
RS 232
TX
RS 232
RX
* Pinout - see „DSUB-9 - RS 232" on page 55.
EXBOX.AES Manual - Version 2.0

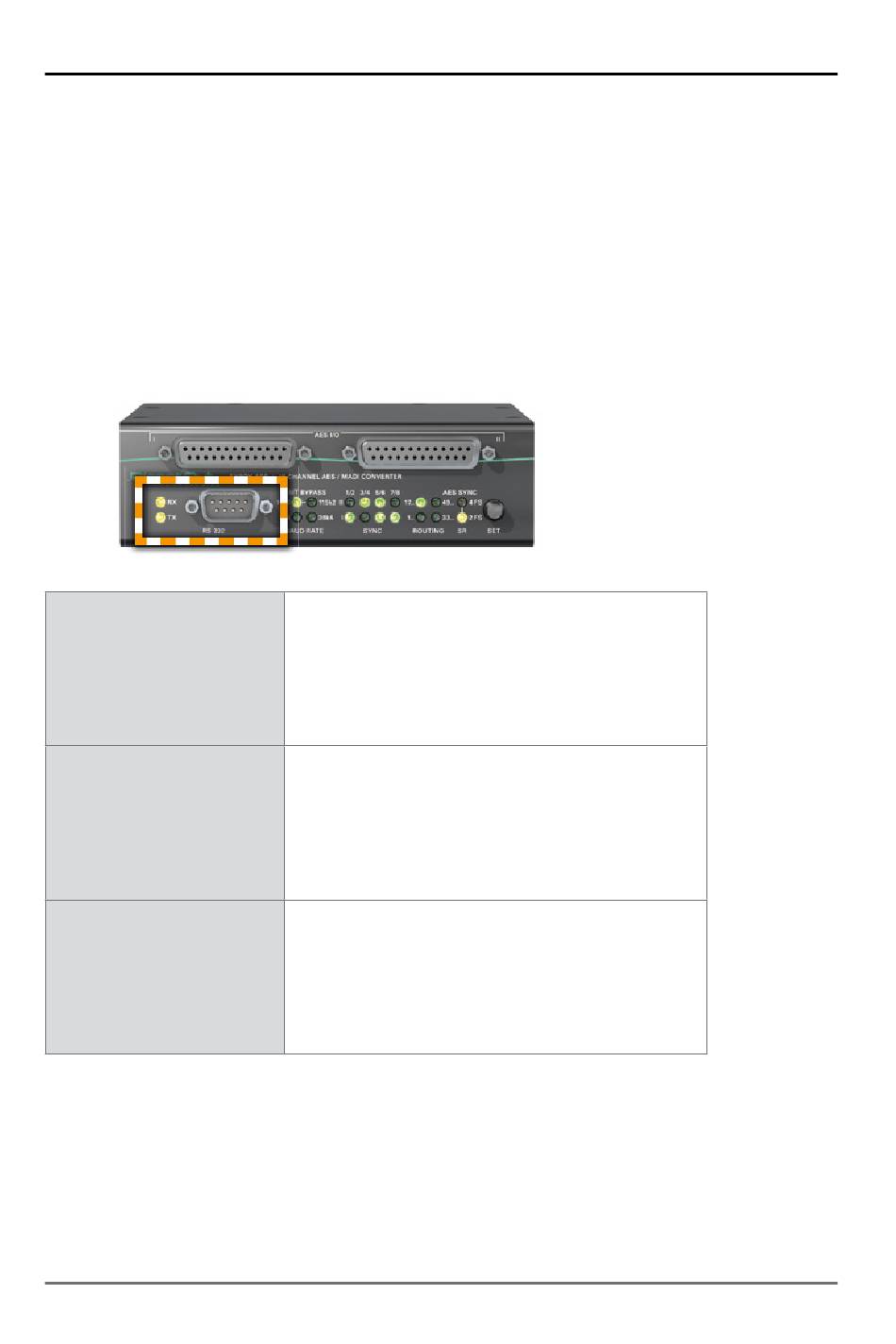

DSUB-9 socket*
Serial data I/O - connect here for
embedding or de-embedding
RS 232 data.
LED (yellow) indicates
outgoing serial data at the
RS 232 output
LED ON = serial data is sent
LED (yellow) indicates
incoming serial data at the
RS 232 input
LED ON = serial data is received
