Operation Manual
SI-500
Mix Smart
PLEASE READ THIS MANUAL CAREFULLY BEFORE
OPERATION
3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529
mrc@mrclab.com
MRC.VER.01-12.12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SI-500 Mix Smart and is the answer not in the manual?

Questions and answers

Summary of Contents for MRC SI-500 Mix Smart

  • Page 1 Operation Manual SI-500 Mix Smart PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION 3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529 mrc@mrclab.com MRC.VER.01-12.12...
  • Page 2 Foreword Thank you for purchasing our Products: Mix Smart. This Manual for users contains function and operation of the Instrument. In order to use the instrument properly, please read this manual carefully before using the Instrument. Opening Check Please check the Instrument and Appendix with the packing list when you first open the instrument packing case.
  • Page 3 Safety Warnings and Guidelines 1. Important operation information of the security: Before the users’ operation, they should have a perfect conception of how to use the Instrument. Therefore, read this Manual carefully before using it. Operation before reading the Manual is forbidden. Read the guidelines and directions below and carry out the countermeasure according to them.
  • Page 4 Before power on, guarantee the voltage used should be accordant to the voltage needed, and the rated load of electrical outlet should not lower than the demand. If the electric line is damaged, you should replace it with the same type. You should assure there’s nothing on the electric line and you should not put the electric line in the ambulatory place.
  • Page 5: Table Of Contents

    Contents Chapter 1 Introduction ------------------------------------------------------------------------- 1 Chapter 2 Specifications ---------------------------------------------------------------------- 2 1. The normal operating condition --------------------------------------------- 2 2. The basic parameters and the function ----------------------------------- 2 3. Mixing load limitation------------------------------------------------------------ 2 Chapter 3 Preparations ------------------------------------------------------------------------ 3 1. Structure Description ----------------------------------------------------------- 3 2.
  • Page 6: Chapter 1 Introduction

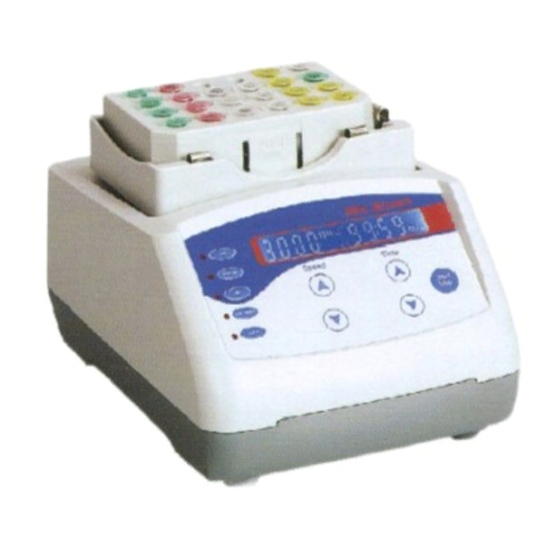

    SI-500 Mix Smart Operational Manual Chapter 1 Introduction Chapter 1 Introduction The Mix Smart SI-500 allows aqueous solutions and suspensions to be effective in a wide range of micro test tubes or plates. The Mix Smart supports from 0.2 ml PCR tubes to 2.0 ml micro test tubes as well as PCR, MTP and DWP plates up to 384 wells.
  • Page 7: Chapter 2 Specifications

    SI-500 Mix Smart Operational Manual Chapter 2 Specification Chapter 2 Specifications 1. The normal operating condition: Ambient temperature: : : : 4° ° ° ° C ~ ~ ~ ~ 45° ° ° ° C The relative humidity: ≤70% Power supply: : : : 24VDC 2.0 A 2.
  • Page 8: Chapter 3 Preparations

    SI-500 Mix Smart Operational Manual Chapter 3 Preparations Chapter 3 Preparations This chapter introduces Mix Smart’s mechanical structure and the central panel’s functions and some preparations before power-on. You should be familiar with this chapter before the Orbital shaker is first operated.
  • Page 9: Keyboard And Display Pane

    SI-500 Mix Smart Operational Manual Chapter 3 Preparations Keyboard and Display panel LED Display Window Start Start/stop mixing run Stop Increasing key for speed and time, it can setup speed and time Decreasing key for speed and time, it can setup speed and time...
  • Page 10: Optional Tube Holder For The Mix Smart

    SI-500 Mix Smart Operational Manual Chapter 3 Preparations 1400 micro test tubes (1.5/2.0ml) 5-80 3. Optional tube holder for the Mix Smart a. 1.5/2.0ml tube holder: for max. 24 micro test tubes (1.5 and 2.0ml) ; b. PCR 96 tube holder: : : : For one PCR plate (96-well, semi-skirted or unskirted) or a max.
  • Page 11: Power Connection

    SI-500 Mix Smart Operational Manual Chapter 3 Preparations 4.2 Insert the tube holder in the plate holder a) Hold the tube holder up against the back edge of the plate holder so that the engaging lugs fit in the holes. (See fig. a) b) Engage the tube holder by pressing gently on the front.
  • Page 12: Chapter 4 Operation Guide

    SI-500 Mix Smart Operational Manual Chapter 4 Operation Guide Chapter 4 Operation Guide 1. Speed and time setting When instrument powers 8888 88:88 display screen will show “ ”. one by one. The instrument goes into the initial state with the sound of “du…”...
  • Page 13: Touch-Vortex Mode With 3500Rpm

    SI-500 Mix Smart Operational Manual Chapter 4 Operation Guide e) If you want to set speed 2400rpm and timing 2hours, press key “ ” below Speed, and the set 2400 09:30 value will be increase to 2400rpm. Keep off the key, the device will save the value automatically.
  • Page 14: Chapter 5 Failure Analysis And Handling

    SI-500 Mix Smart Operational Manual Chapter 5 Failure analysis and handling Chapter 5 Failure analysis and handling Failure analysis and processing procedures Phenomenon Cause Remedy Power supply interrupted Check mains No display connection and the power supply to the lab...
  • Page 15: Annex 1. Wiring Diagram For Si-500

    SI-500 Mix Smart Operational Manual Chapter 5 Failure analysis and handling Annex 1: : : : Wiring Diagram for SI-500 Mix Smart AC100~240V Switch Adapter J1 U J7 V J8 W Main Board Motor LCD PORT Key and Display...
