BEKA HAMAX System 2 Operating Instructions Manual page 28

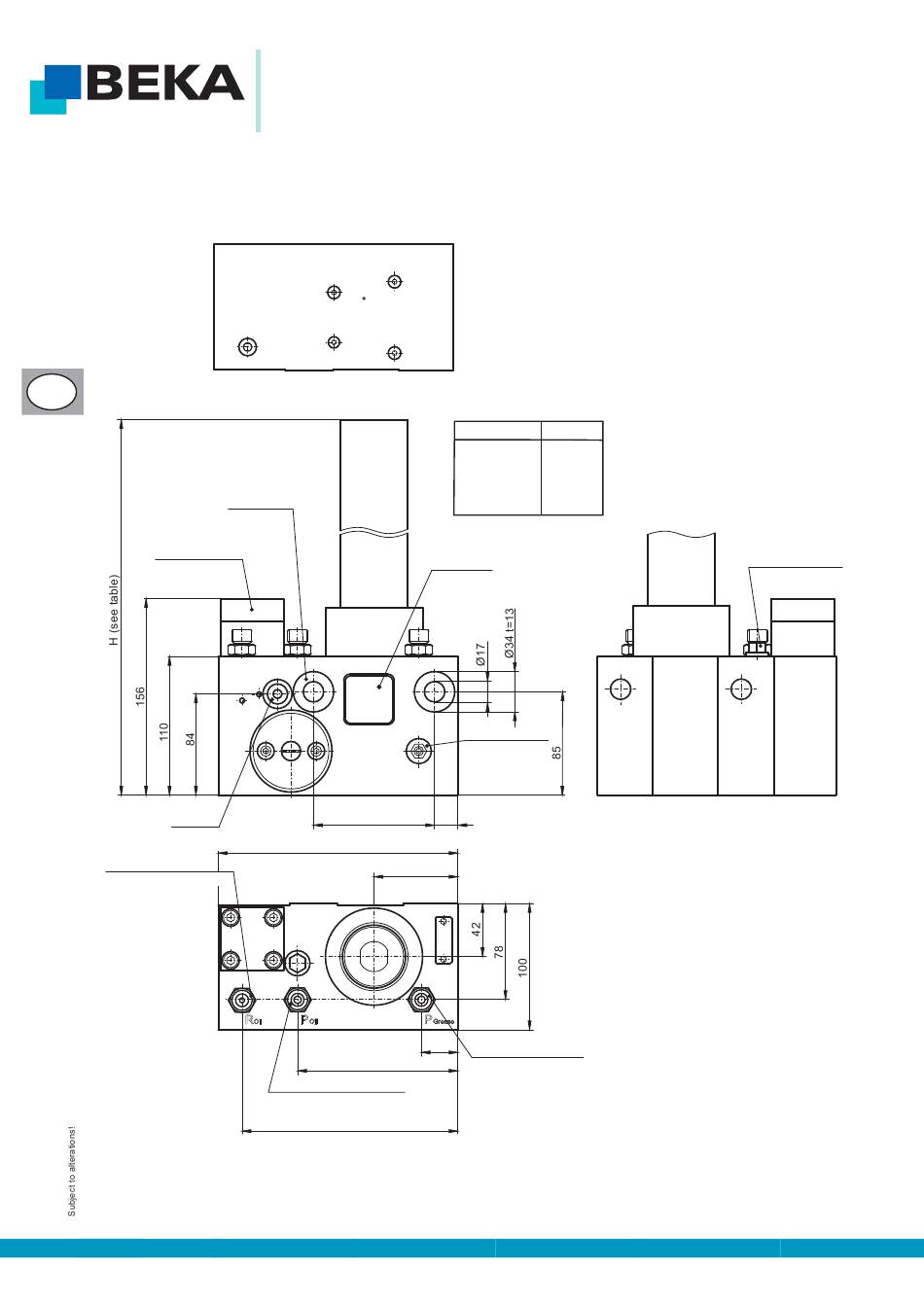

Installation dimensions
GB
Hydraulic motor
28
Throttle
S2
Hydraulic return socket
...a product of BEKA
for model connection M16 -
Fixing hole
96
190
127
S3
Hydraulic supply socket
171,3
Fig 3 .
Cartridge H
Type S 300
Type F 310
Type L 265
Type R 300
Type Ra 290
Inspection
window
Grease nipple
18,5
66,5
30,5
S1
Lubricant connector
Filter with orifice
Revers:
