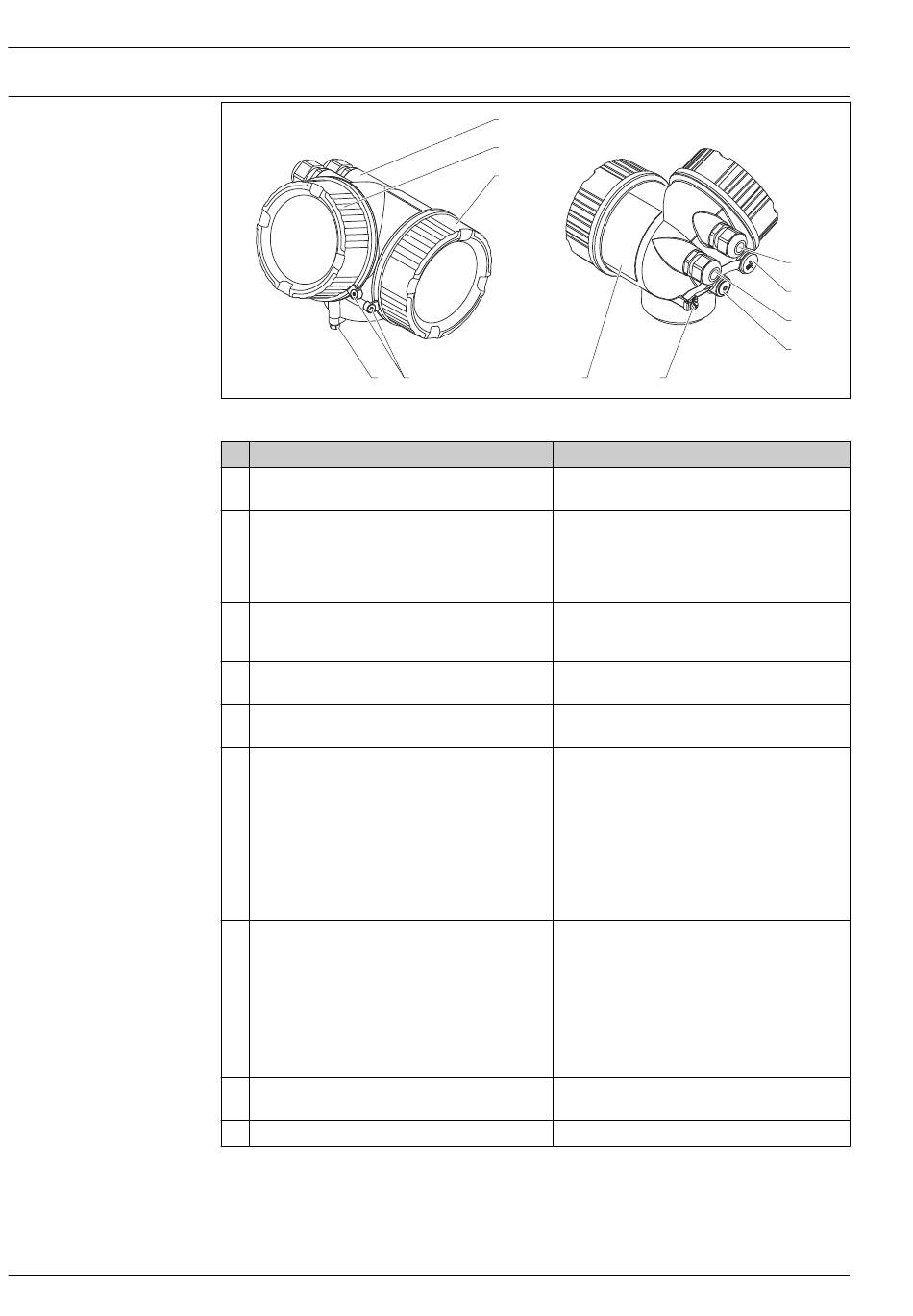

Materials: GT20 housing

(die-cast aluminum, powder-
coated)
60
4
Nr. Part
1 Housing, RAL 5012 (blue)
2.1 Cover of the electronics compartment; RAL 7035
(gray)
2.2 Cover of the terminal compartment; RAL 7035
(gray)
3 Cover lock
4 Lock at the housing neck
5.1 Dummy plug, cable gland, adapter or plug
(depending on the device version)
5.2 Dummy plug, cable gland or adapter (depending on
the device version)
6 Dummy plug or M12 socket (depending on the
device version)
7 Pressure relief stopper
1
2.1
2.2
3 9
Material
• Housing: AlSi10Mg(<0,1% Cu)
• Coating: Polyester
• Cover: AlSi10Mg(<0,1% Cu)
• Window: Glass
• Cover seal: NBR
• Seal of the window: NBR
• Thread-coating: Graphite-based lubricant varnish
• Cover: AlSi10Mg(<0,1% Cu)
• Cover seal: NBR
• Thread-coating: Graphite-based lubricant varnish
• Screw: A4
• Clamp: 316L (1.4404)
• Screw: A4-70
• Clamp: 316L (1.4404)
• Dummy plug, depending on the device version:
– PE
– PBT-GF
• Cable gland, depending on the device version:
– Nickel-plated brass (CuZn)
– PA
• Adapter: 316L (1.4404/1.4435)
• Seal: EPDM
• M12 plug: Nickel-plated brass
• 7/8" plug: 316 (1.4401)
• Dummy plug, depending on the device version:
– PE
– PBT-GF
– Nickel-plated steel
• Cable gland, depending on the device version:
– Nickel-plated brass (CuZn)
– PA
• Adapter: 316L (1.4404/1.4435)
• Seal: EPDM
• Dummy plug : Nickel-plated brass (CuZn)
• M12 socket: Nickel-plated GD-Zn
Nickel-plated brass (CuZn)
Levelflex FMP51 Modbus
5.2
6
5.1
7
8
A0013788
