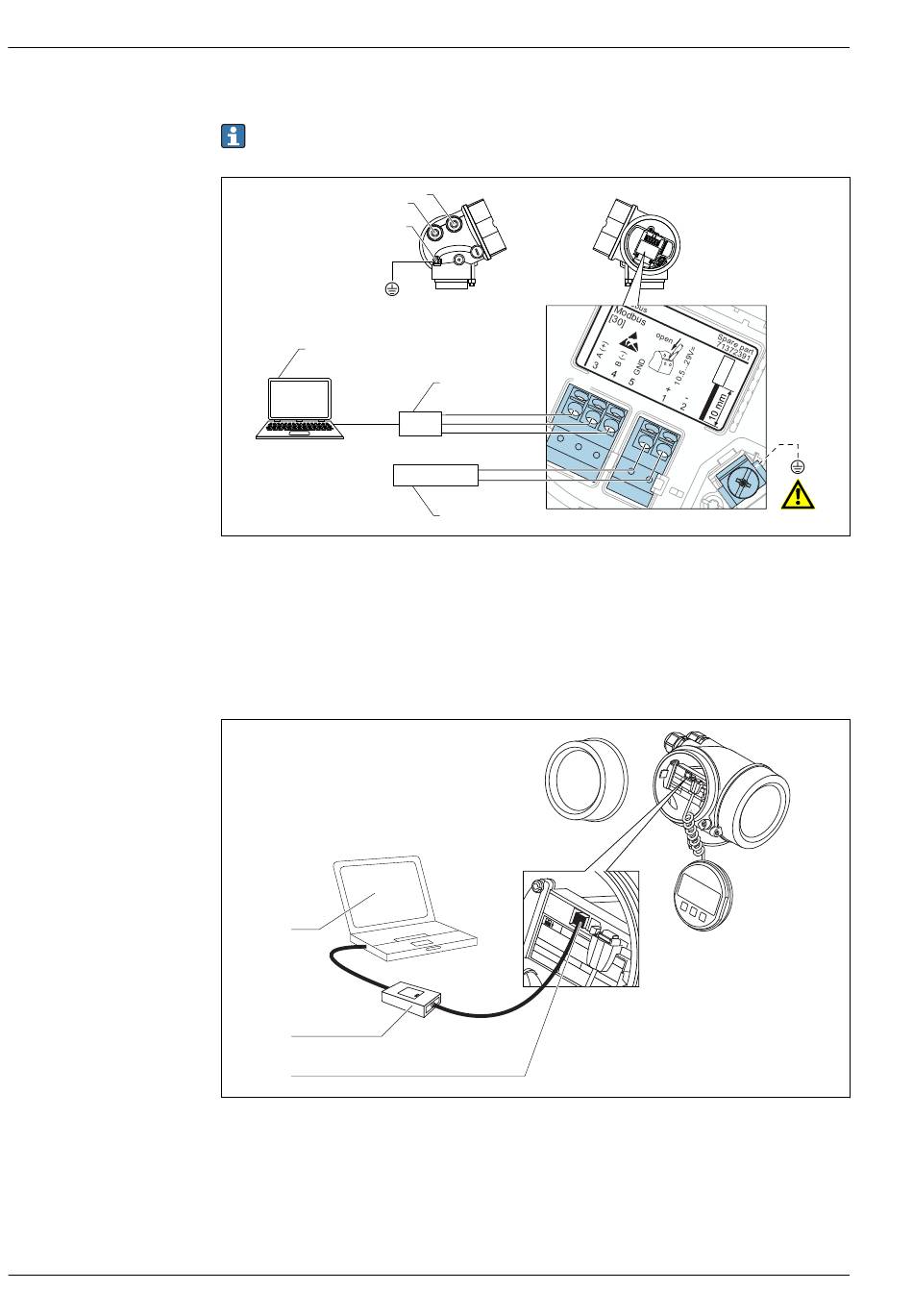

Connection to FieldCare/DeviceCare via RS485
To configure the device via FieldCare or DeviceCare, it is recommended to disconnect it from the
Modbus master and to connect it to the computer via a USB to RS485 interface.
1
USB
1 Computer with FieldCare/DeviceCare
2 USB to RS485 interface
3 Power supply
4 Cable entry for RS485 connection
5 Cable entry for supply voltage
6 Protective earth connection
Connection to DeviceCare/FieldCare via service interface
3
2
1
1 Service interface (CDI) of the measuring device (= Endress+Hauser Common Data Interface)
2 Commubox FXA291
3 Computer with DeviceCare/FieldCare operating tool
4
5
6
2
RS485
10.5 - 29V
DC
3
Levelflex FMP51 Modbus
A0035158
A0032466
