Endress+Hauser Levelflex FMP51 Modbus Technical Information page 54

B
SW55
AF55
G1½
I
SW10
AF10
ø4 (0.16)
M14
ø22 (0.87)
54

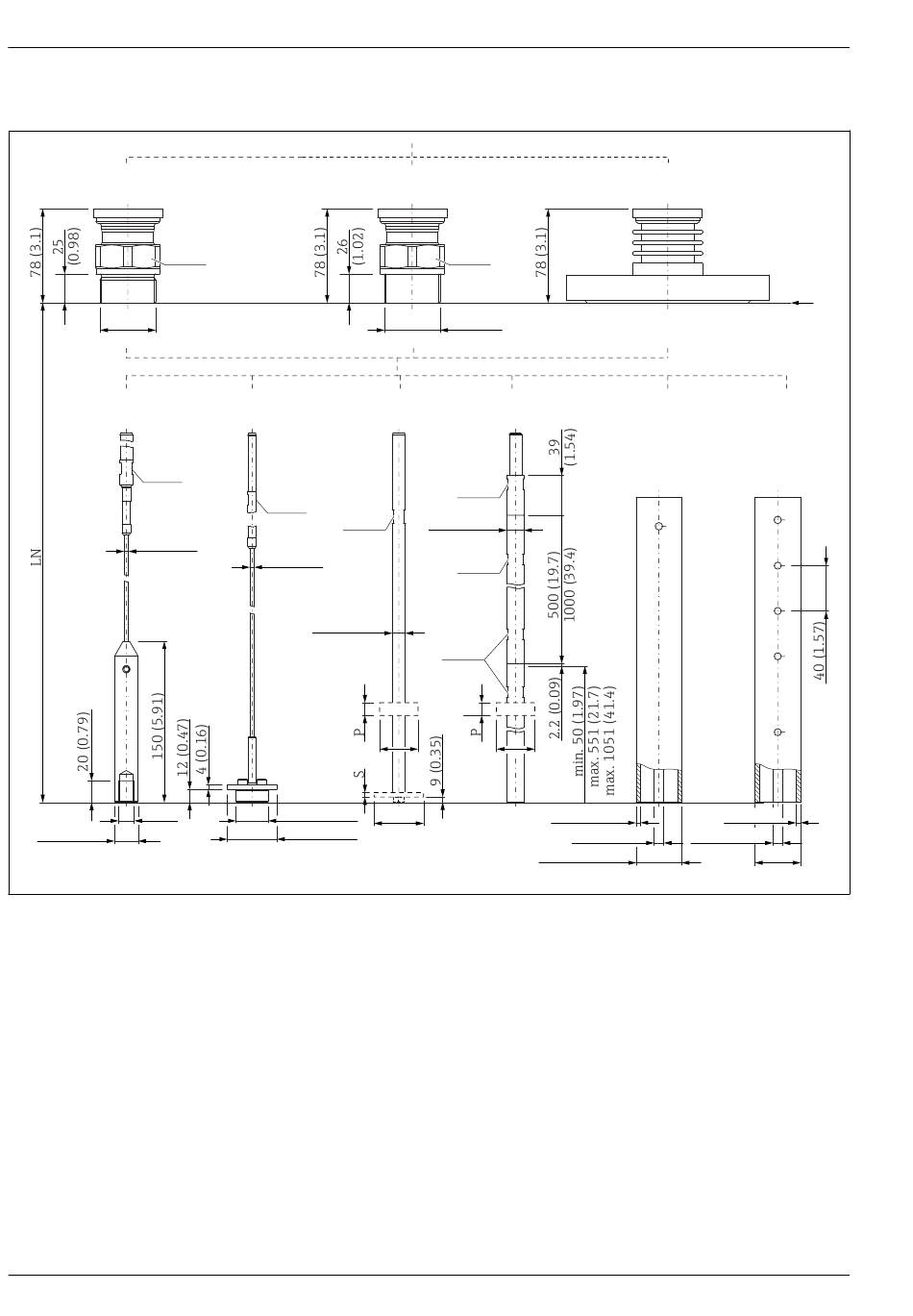

FMP51: Dimensions of process connection (G1½,NPT1½,flange) and probe
J
SW10
AF10
SW10
AF10
ø4 (0.16)
ø12 (0.47)
ø29.5 (1.16)
ø75 (2.95)
 19 FMP51: Process connection / probe; dimensions: mm (in). Unit of measurement mm (in)
B Thread ISO228 G1-1/2 (Feature 100)
C Thread ANSI MNPT1-1/2 (Feature 100)
D Flange ANSI B16.5, EN1092-1, JIS B2220 (Feature 100)
I Rope probe 4mm or 1/6" (Feature 060)
J Rope probe 4mm or 1/6"; centering disk optional (Features 060 and 610)
K Rod probe 12mm or 1/2"; centering disk optional, see table below (Features 060 and 610)
L Rod probe 16 mm or 0.63in, 20" or 40" divisible; centering disk optional, see table below (Feature 060 and
610)
M Coax probe; AlloyC (Feature 060); with venting hole Ø approx. 8 mm (0.3 in)
N Coax probe; 316L (Feature 060); with venting holes Ø approx. 10 mm (0.4 in)
LN Length of probe
P Thickness of the centering star; table of values: see below
Q Diameter of the centering star; table of values: see below
R Reference point of the measurement
S Thickness of the center washer or centering star; table of values: see below
T Diameter of the center washer or centering star; table of values: see below
C
SW55
AF55
NPT1½
K L
SW14
AF14
ø16 (0.63)
SW14
AF14
SW14
AF14
Q Q
2.77 (0.11)
T
ø42.2 (1.66)
Levelflex FMP51 Modbus
D
M
2 (0.08)
ø12.7 (0.5) ø12 (0.47)
Endress+Hauser
R
N
ø42.4
(1.67)
A0012756
