Function
During this self test, when the device is being started, the alarm relays are not switched.
TEST
Measurement
√
Coupling
Earth connec-
tion
33 %

3.5.2 Automatic self test

All supply voltages are continuously monitored. The following tests are continuously car-
ried out in the background:
• E-KE connection
• Temperature monitoring of coupling and locating current injector
A self test is automatically run at 24-hour intervals.
During the automatic self test, the alarm relays K1 (11-12-14) and K2 (21-22-24) are not
switched. K3 will not be switched either.

3.5.3 Manual self test

The self test is started via the TEST button of the ISOMETER®.
The following tests are only carried out in the manual self test mode:
• Internal flash
• CPU register
• Watchdogs
• Oscillator
• Restart of the device including re-initialisation and recalibration
• Connection monitoring system
During the manual self test, all alarm relays are switched.
11

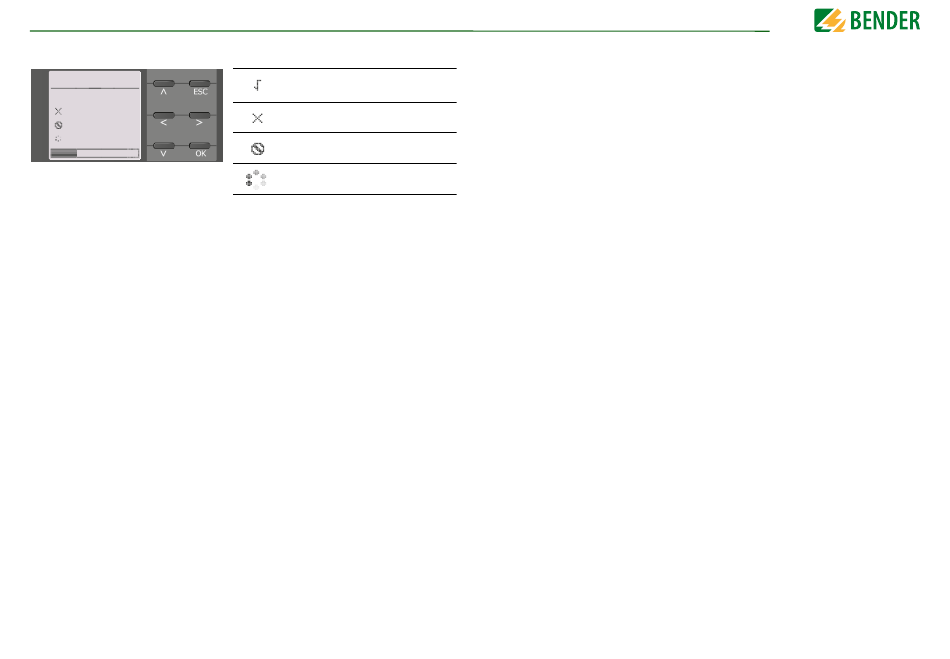

Test successful
Test not successful
Test not available
(e.g. incorrect device settings).
Test in progress
