Mounting and connection

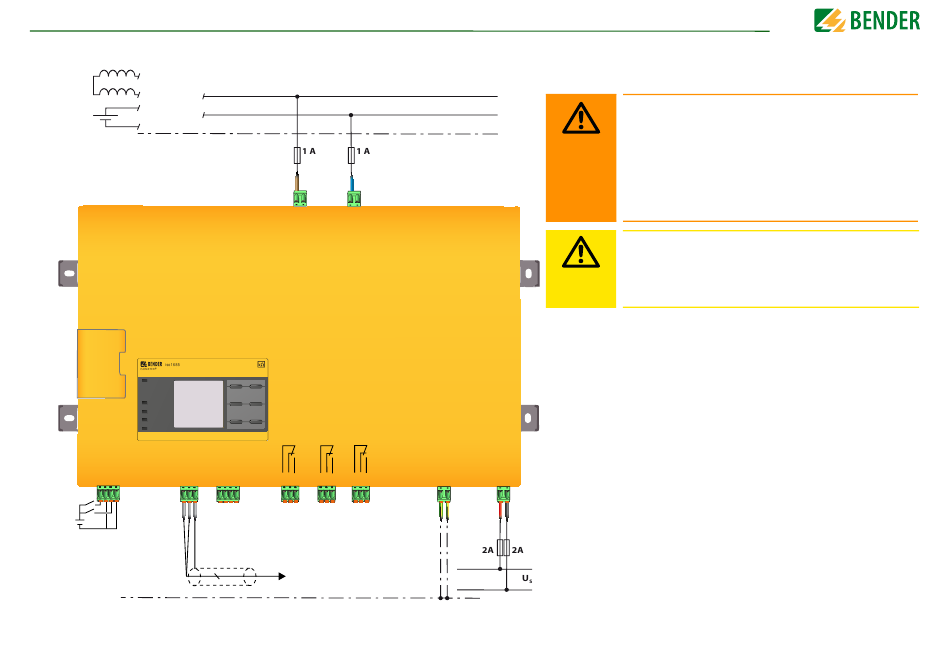

5.3 Connection to an AC system (L1; L2) /to a DC system (+; –)
AC
DC
A B S
I2+ I2- I1+ I1-
+
-
PE
18
1 A 1 A
L1/+ L2/-
K2 K1
K3
k I kT IT
31 32 34 21 22 24 11 12 14
BMS-Master
2
L1 / +
L2 / –
PE
WARNING
CAUTION
E KE A1 A2
Injury, fire and damage to property due to a short circuit
in isoHV1685D-425 and isoHR1685D-925
According to DIN VDE 0100-430, protective devices (fuses)
used to protect against short circuits when terminals L1/+
and L2/- are coupled to the IT system to be monitored can be
omitted if the wiring is designed in such a manner that the
risk of a short circuit is kept to a minimum. Ensure short-cir-
cuit-proof and earth-fault-proof wiring.
Make sure that the operating voltage is correct!
Prior to insulation and voltage tests, the ISOMETER® must be
disconnected from the IT system for the duration of the test. In
order to check the correct connection of the device, a function-
al test has to be carried out before starting the system.
isoxx1685Dx-x25_D00272_06_M_XXEN/04.2020
