Gigant sweeping machine
3.4.8 Readjustment of the sweeping proile
The safety instructions from Chapter 3.3 apply.
When operating the Gigant sweeping
N O T E
machine, there should be a sweeping proile
of a = 6 - 10 cm width (upon raising the
sweeping machine, the width of the cleaned
surface should be 6 - 10 cm).
Check the sweeping proile on even ground!
N O T E
If the width is not suficient, or the ground contact pressure
is too low, the suspension of the sweeping drum must
be readjusted evenly on both sides via the raster lever
system.
Take the sweeping drum's net weight into
ATTENTION
account!
Ensure that the routing of the hydraulic lines
ATTENTION
is free of twisting and kinks.

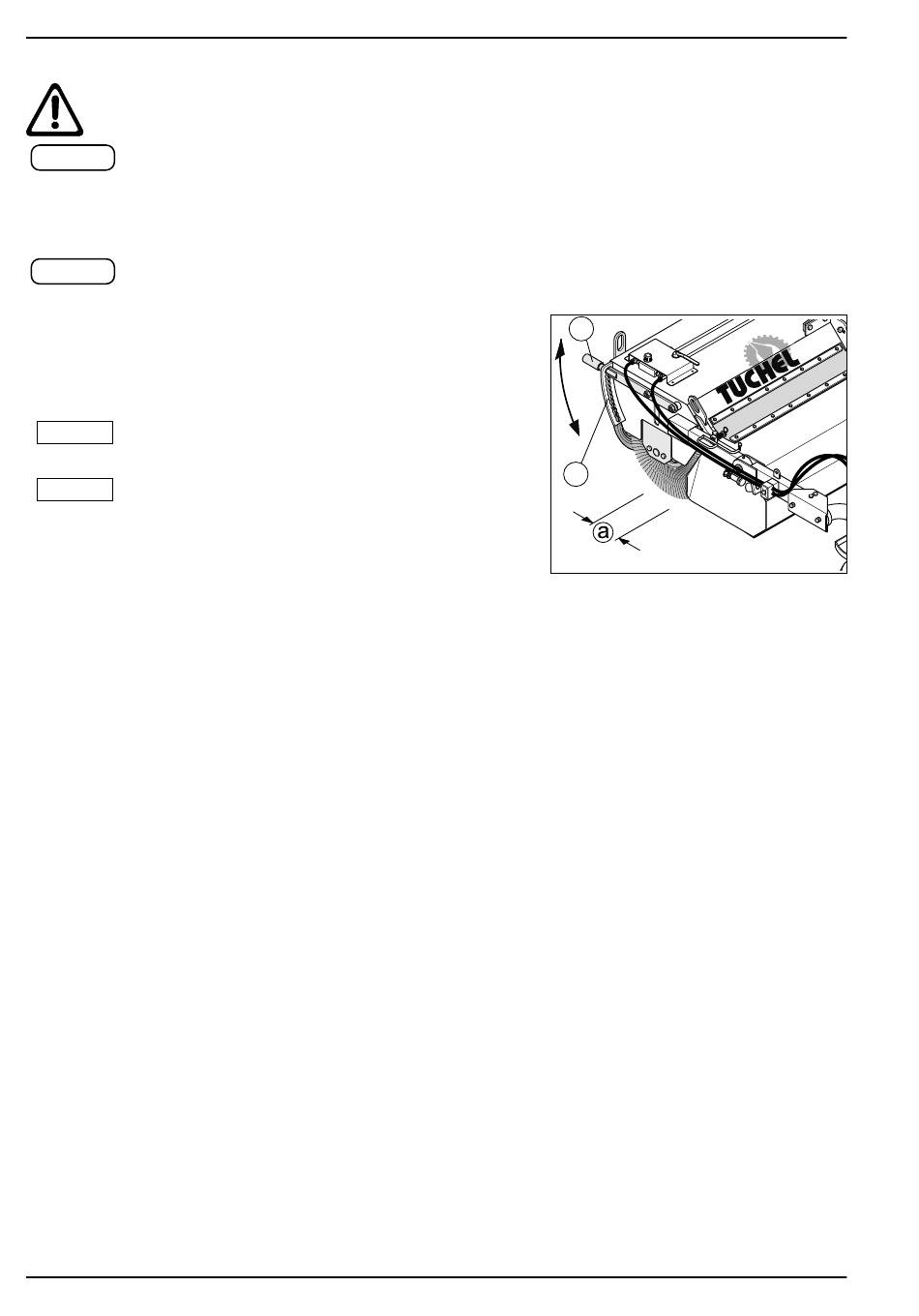

• Lift the sweeping machine and keep it close to the
ground.
• Pull the raster lever (1) of the raster setting backwards
• Latch the raster level into the desired position on the
adjustment raster (2).
• Carry out the raster setting of the sweeping drum evenly
on both sides.
• Check that the width of the sweeping proile is
a = 6 - 10 cm.
