3.4.5 Emptying the dirt collection vessel

The safety instructions from Chapter 3.3 apply.
The dirt collection vessel is opened via two hydraulic
cylinders. The tap for must be open for emptying.
• A high-level illing lap is loat-mounted in the dirt
collection vessel. This high-level illing lap serves to
increase the volume of the swept material. During
emptying of the dirt collection vessel, the high-level illing
lap swings away from the dumping area.
• Lift the Gigant sweeping machine.
No person must be present below the
ATTENTION
machine during emptying.
• Flip the control lever for the sweeping machine
hydraulics in the carrier vehicle. The direction of low
changes and the collector vessel opens.
• Close collector vessel by lipping back the previously
mentioned control lever in the carrier vehicle.
If the swept material is wet, it may be useful
N O T E
to actuate the control lever briely several
times to facilitate emptying.

3.4.6 Open sweeping

The safety instructions from Chapter 3.3 apply.
• Lift the Gigant sweeping machine and keep it close to
the ground.
• Flip the respective control lever for the sweeping
machine hydraulics in the carrier vehicle. The direction
of low is changed. Fully open the dirt collection vessel.
• Lower the Gigant sweeping machine until all castor
wheels are contacting the ground and the sweeping
machine is standing parallel to the surface to be
cleaned.
• Close the intake hose to the hydraulic cylinder of the
collector vessel. The tap points to the centre of the
sweeping machine.
• Lock the opened collector vessel into place by twisting
the control lever; it then remains open.
Position of sweeping machine during
N O T E
operation in front of the carrier vehicle, see
Chapter 3.4.2 Start-up!
26

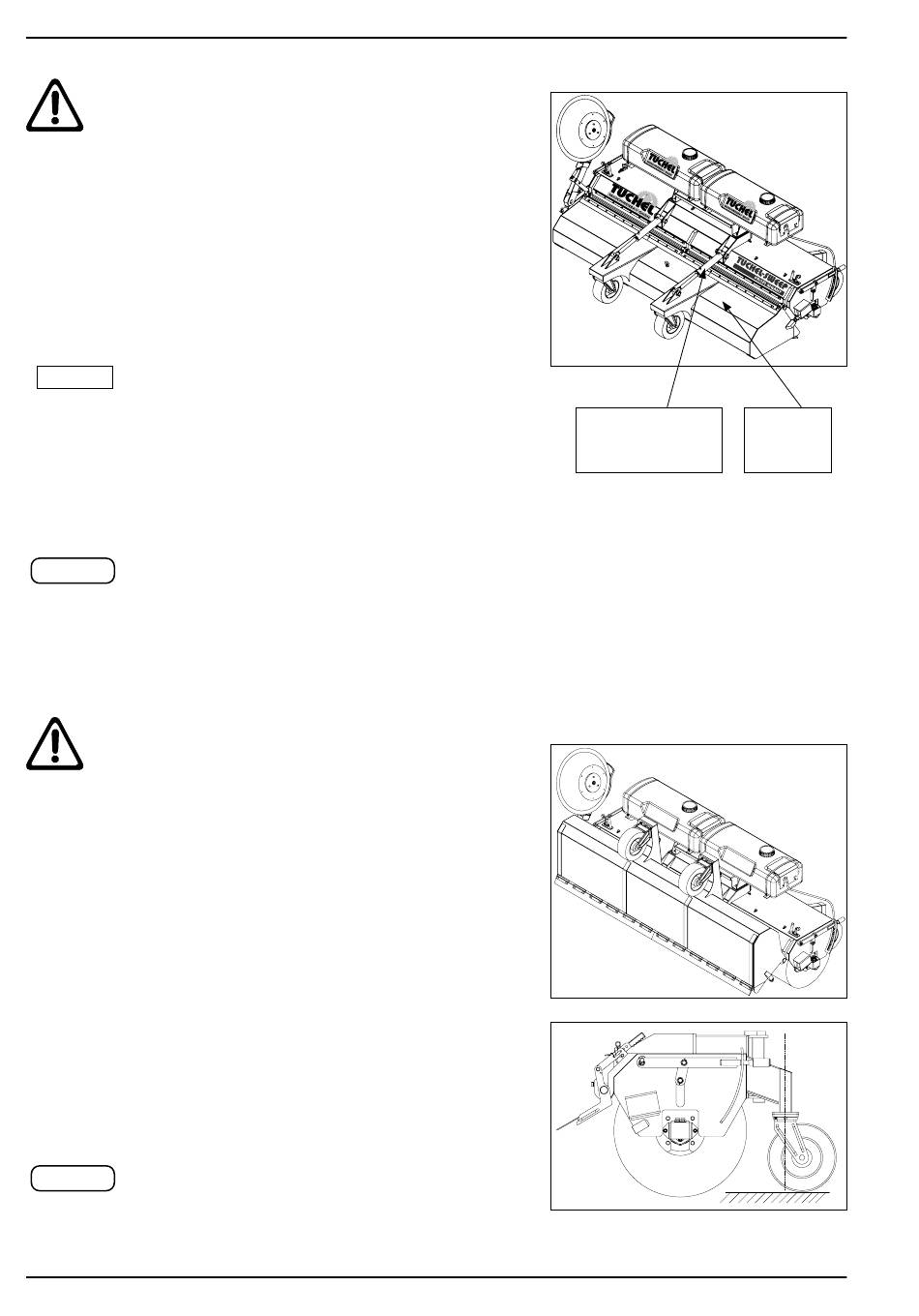

Hydraulic
Dirt
cylinder collector collection
vessel drainage vessel
