2.3.2 Control Principle

VLT® Midi Drive FC 280 is a general-purpose frequency converter for variable speed applications. The control principle is
+
based on VVC
.
FC 280 frequency converters can handle asynchronous motors and permanent magnet synchronous motors up to 22 kW
(30 hp).
The current-sensing principle in FC 280 frequency converters is based on the current measurement by a resistor in the DC
link. The ground fault protection and short circuit behavior are handled by the same resistor.
L1 91
L2 92
L3 93

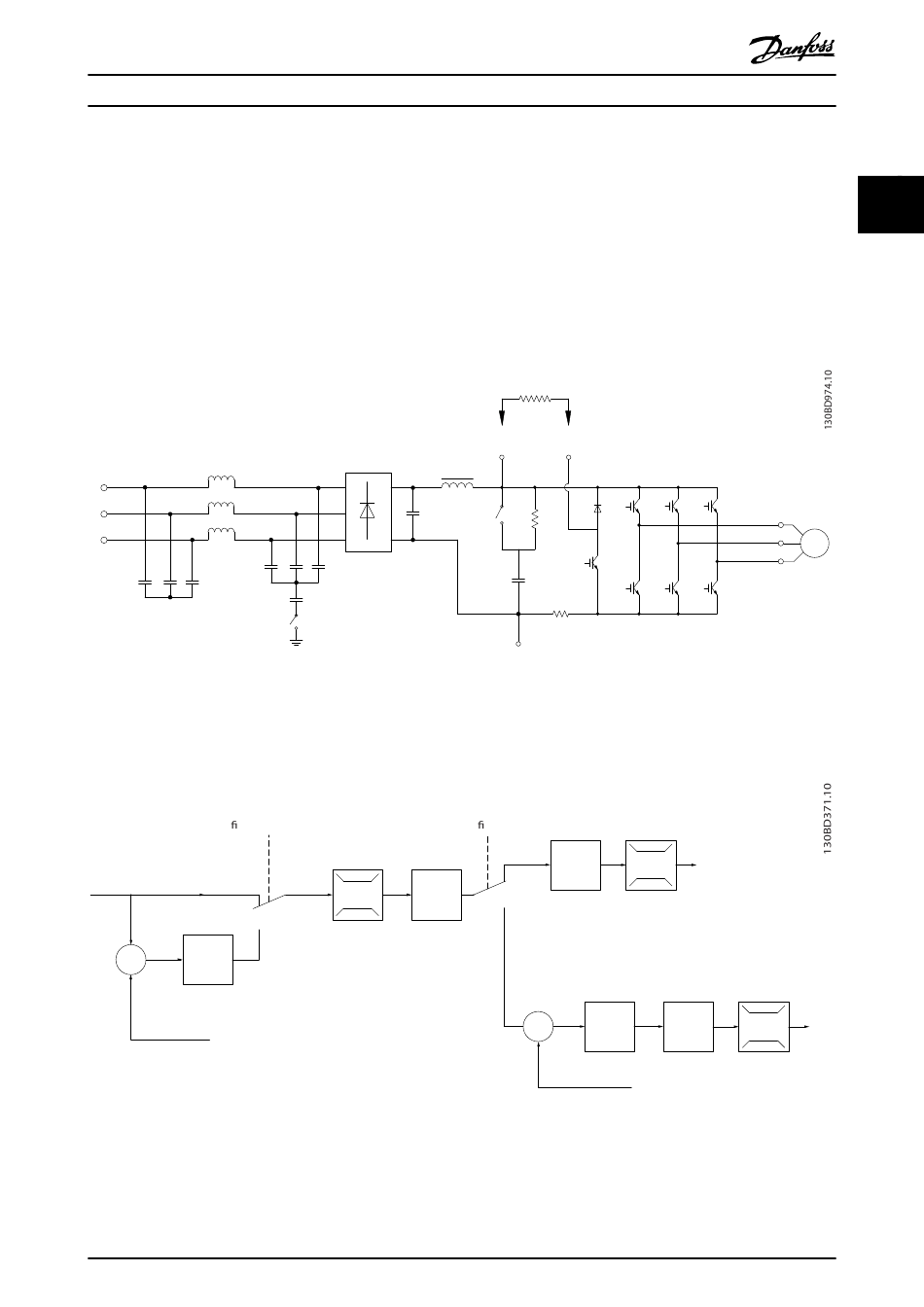

Illustration 2.9 Control Diagram

2.3.3 Control Structure in VVC

P 1-00
Con g. mode
Ref.
+
Process
S
_
P 7-20 Process feedback
1 source
P 7-22 Process feedback
2 source
Illustration 2.10 Control Structure in VVC
In the configuration shown in Illustration 2.10, parameter 1-01 Motor Control Principle is set to [1] VVC
parameter 1-00 Configuration Mode is set to [0] Speed open loop. The resulting reference from the reference handling system
