2.5.6 Ziegler Nichols Tuning Method

To tune the PID controls of the frequency converter,
Danfoss recommends the Ziegler Nichols tuning method.
NOTICE
Do not use the Ziegler Nichols Tuning method in
applications that could be damaged by the oscillations
created by marginally stable control settings.
The criteria for adjusting the parameters are based on
evaluating the system at the limit of stability rather than
on taking a step response. Increase the proportional gain
until observing continuous oscillations (as measured on
the feedback), that is, until the system becomes marginally
stable. The corresponding gain (K
gain and is the gain, at which the oscillation is obtained.
The period of the oscillation (P
period) is determined as shown in Illustration 2.25 and
should be measured when the amplitude of oscillation is
small.
1. Select only proportional control, meaning that
the integral time is set to the maximum value,
while the differentiation time is set to 0.
2. Increase the value of the proportional gain until
the point of instability is reached (sustained
oscillations) and the critical value of gain, K
reached.
3. Measure the period of oscillation to obtain the
critical time constant, P
4. Use Table 2.11 to calculate the necessary PID
control parameters.
The process operator can do the final tuning of the control
iteratively to yield satisfactory control.
y(t)
P u

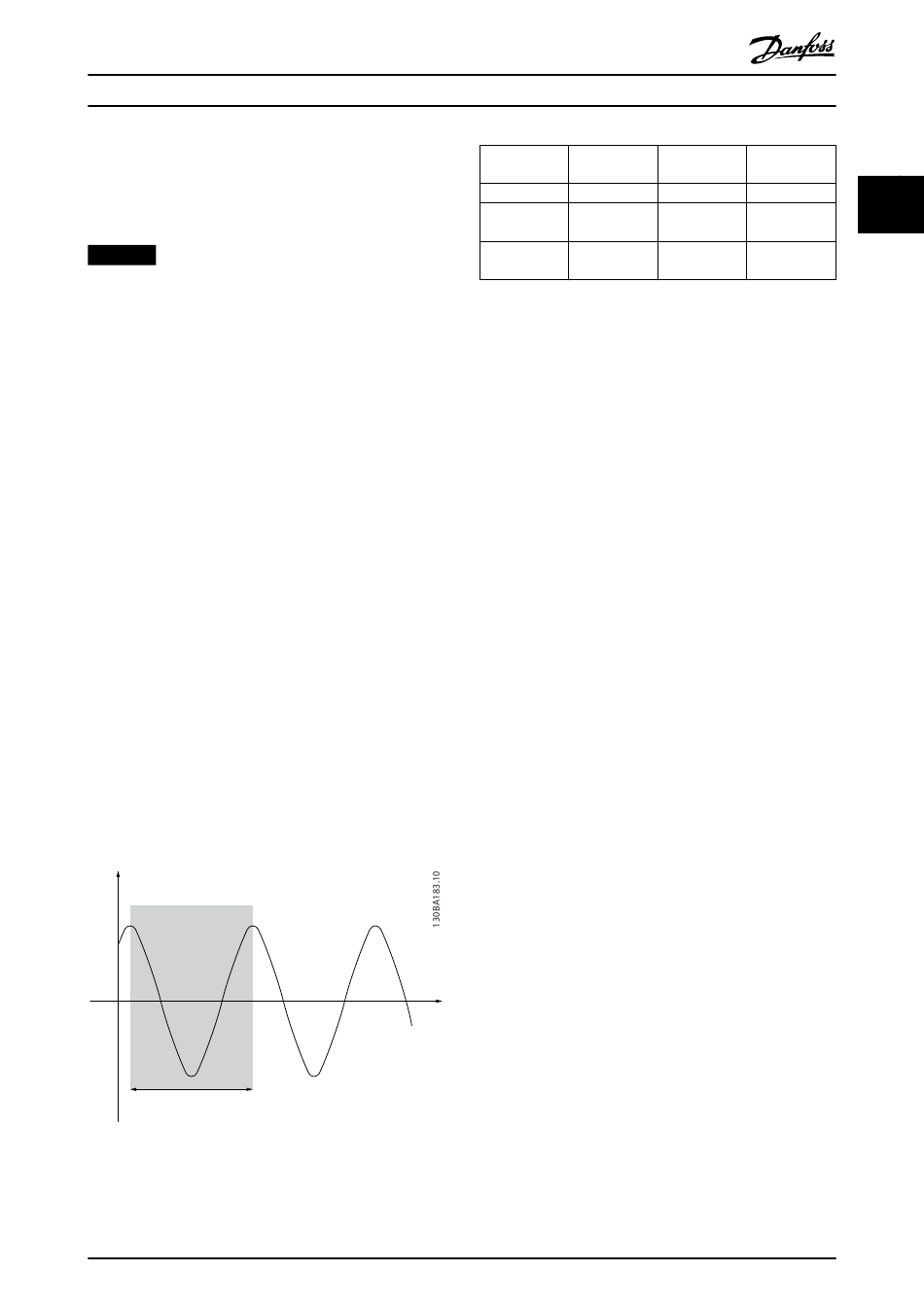

Illustration 2.25 Marginally Stable System
MG07B102
Design Guide
) is called the ultimate
u
) (called the ultimate
u
, is
u
.
u
t
Danfoss A/S © 03/2016 All rights reserved.
Type of Proportional
control gain
PI-control 0.45 x K
u
PID tight 0.6 x K
u
control
PID some 0.33 x K
u
overshoot
Table 2.11 Ziegler Nichols Tuning for Regulator
Integral time Differentiation
time
0.833 x P –
u
0.5 x P 0.125 x P
u u
0.5 x P 0.33 x P
u u
