Product Overview
1
9
10
L1
L2
L3
PE
1 PLC
2 Frequency converter
3 Output contactor (generally not recommended) 8
4 Grounding rail (PE)
5 Cable shielding (stripped)

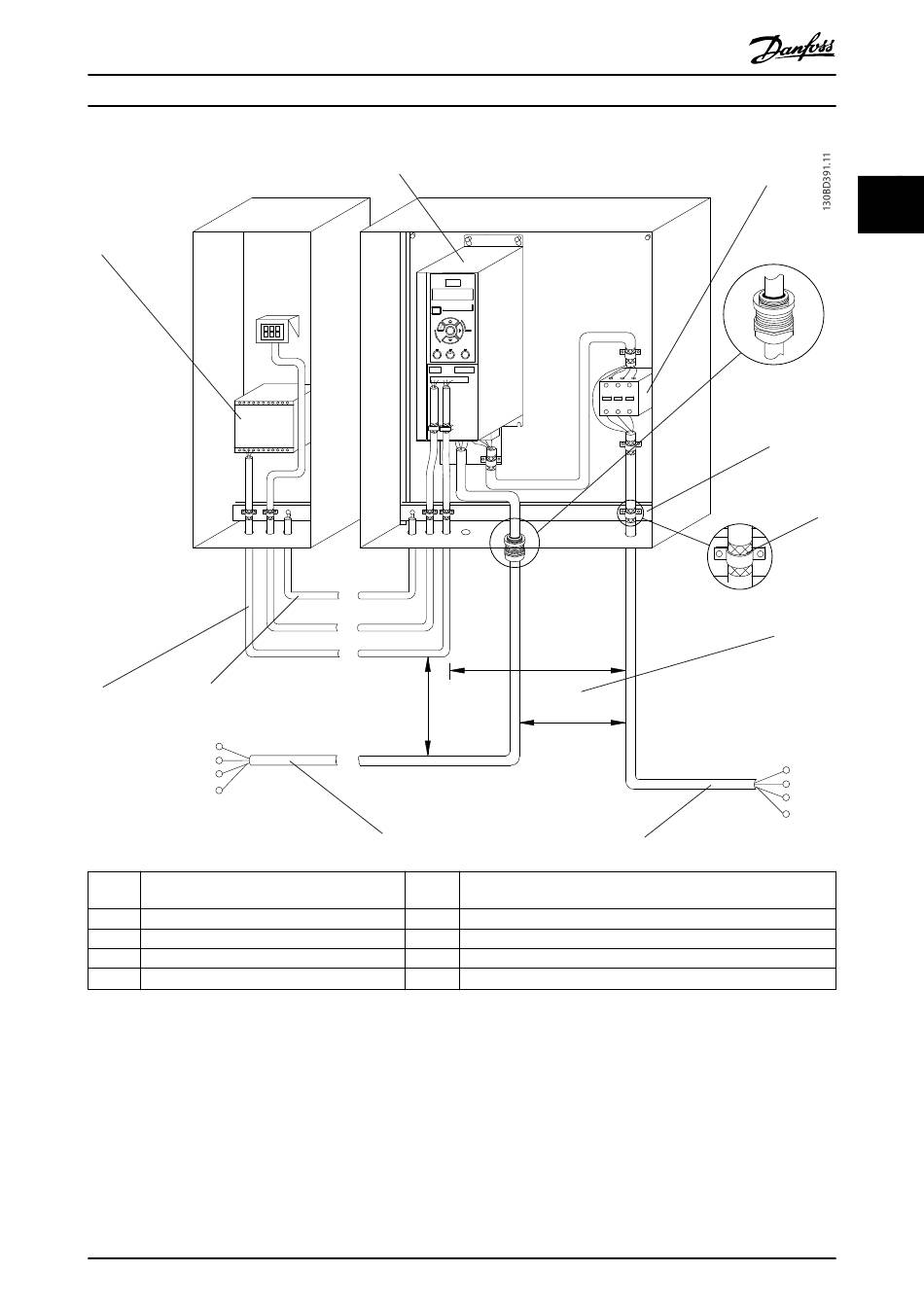

Illustration 2.2 Typical Electrical Connection
MG07B102
Design Guide
2
Status Quick Main
Menu Menu
Menu
OK
Hand Auto
On Reset On
8
6 Minimum 200 mm (7.9 in) between control cables, motor, and
mains.
7 Motor, 3-phase and PE
Mains, single-phase, 3-phase, and reinforced PE
9 Control wiring
10
Equalizing minimum 16 mm
