3.3.9

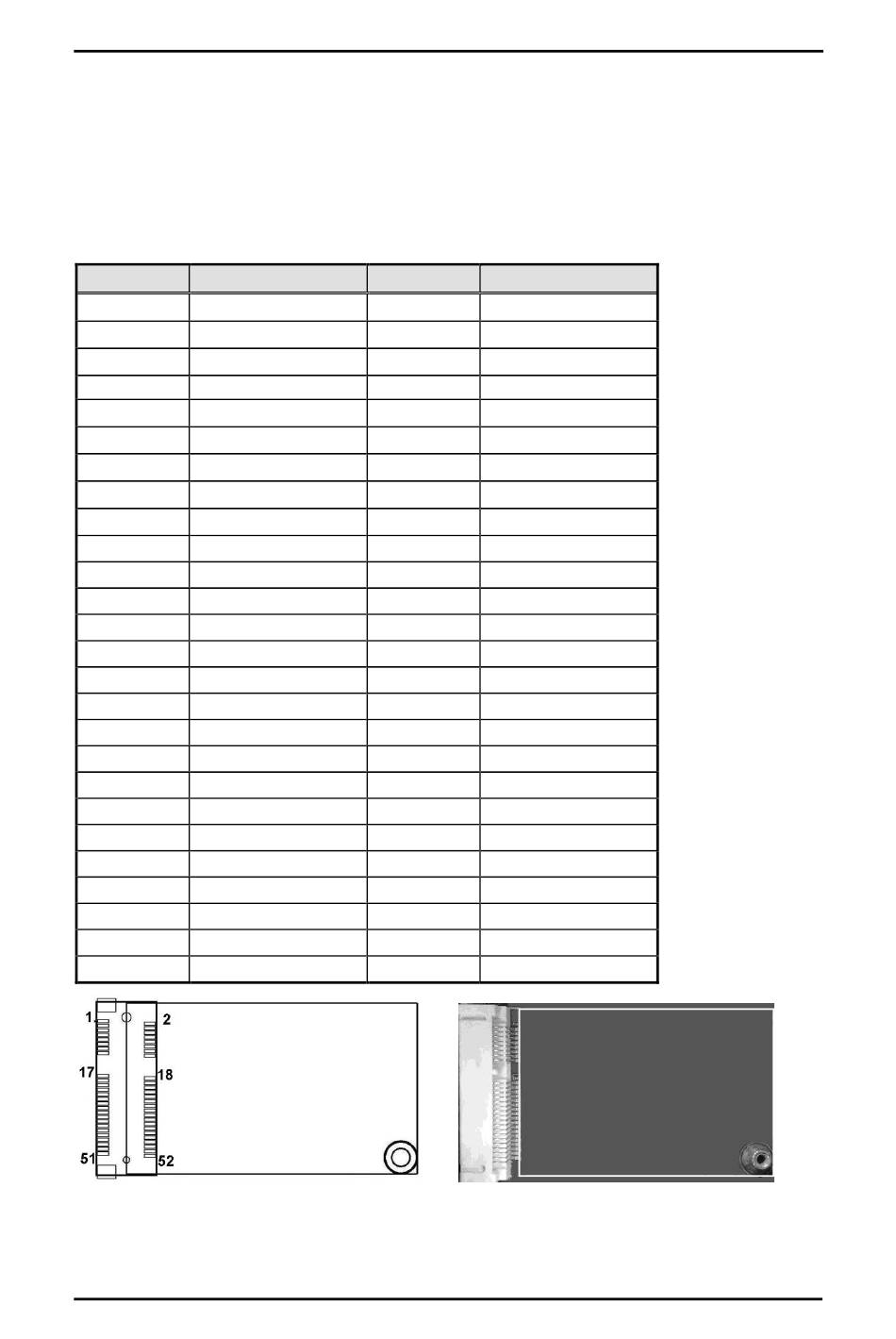

PCI-Express Mini Card Connector

The PCI Express Mini Card connectors with support for a PCI Express x1 link and a
USB 2.0 link. A PCI Express Mini Card can be applied to either PCI Express or USB
2.0. The USB 2.0 support will be helpful during the transition to PCI Express,
because peripheral vendors will need time to design their chipsets to have the PCI
Express function. During the transition, PCI Express Mini Cards can be quickly
implemented by using USB 2.0.
Pin Signal
1 WAKE#
3 No use
5 No use
7 CLKREQ#
9 GND
11 REFCLK-
13 REFCLK+
15 GND
No use
17
No use
19
21 GND
23 PE_RXN4
25 PE_RXP4
27 GND
29 GND
31 PE_TXN4
33 PE_TXP4
35 GND
37 GND
+3.3VSB
39
+3.3VSB
41
43 GND
No use
45
No use
47
No use
49
No use
51
Jumper Setting & Connector
tBOX321-870-FL Series User's Manual
Pin Signal
2 +3.3VSB
4 GND
6 +1.5V
No use
8
No use
10
No use
12
No use
14
No use
16
18 GND
20 +3.3VSB
22 PERST#
24 +3.3VSB
26 GND
28 +1.5V
30 SMB_CLK
32 SMB_DATA
34 GND
36 USB_D3-
38 USB_D3+
40 GND
LED_WWAN#
42
LED_WLAN#
44
LED_WPAN#
46
48 +1.5V
50 GND
52 +3.3VSB
