AXIOMTEK tBOX321-870-FL Quick Installation Manual

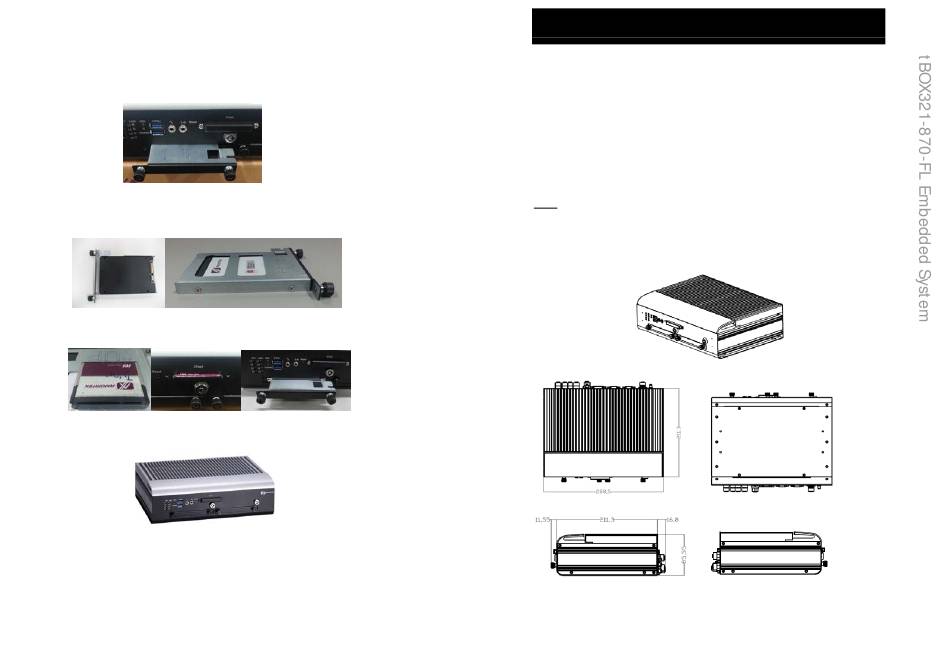

Installing the swappable HDD/SSD and CFast Card

Step 1 Turn off the system, and unplug the power cord. Locate
thumb screw at the front side, unlock and loosen
screws.
Step 2 Assembly the HDD/SSD bracket together with the SATA
HDD/SSD
Step 3 Slide CFast card or HDD/SSD into slot carefully
Step 4 Fasten screws of HDD/CFast bracket
4 9416N321010E
©
Copyright 2015 Axiomtek Co., Ltd.
Version A2 July 2015
Printed in Taiwan
tBOX321-870-FL Quick Installation Guide
Checklist
 tBOX321-870-FL System Unit x 1
 Quick Installation Guide x 1
 Screws Pack x 1
 Wallmount Bracket x 1
 Optional Mini Card Module
 Optional M12 power cable
 Optional M12 Audio cable
 Optional remote switch cable
Note: Please contact your local vendors if any damaged or missing items. DO
NOT apply power to the board if there is any damaged component.
Dimensions
9416N321010E
©
Copyright 2015 Axiomtek Co., Ltd.
Version A2 July 2015
Printed in Taiwan
 CD x 1 (for Driver & Manual)
 Foot Pad x4
 DIO female connector
 Key x2
 Optional HDD/SSD
 Optional CFast Card
 Optional M12 LAN cable(s)
 Optional M12 USB cable(s)
1
