Summary of Contents for NUVE NF48

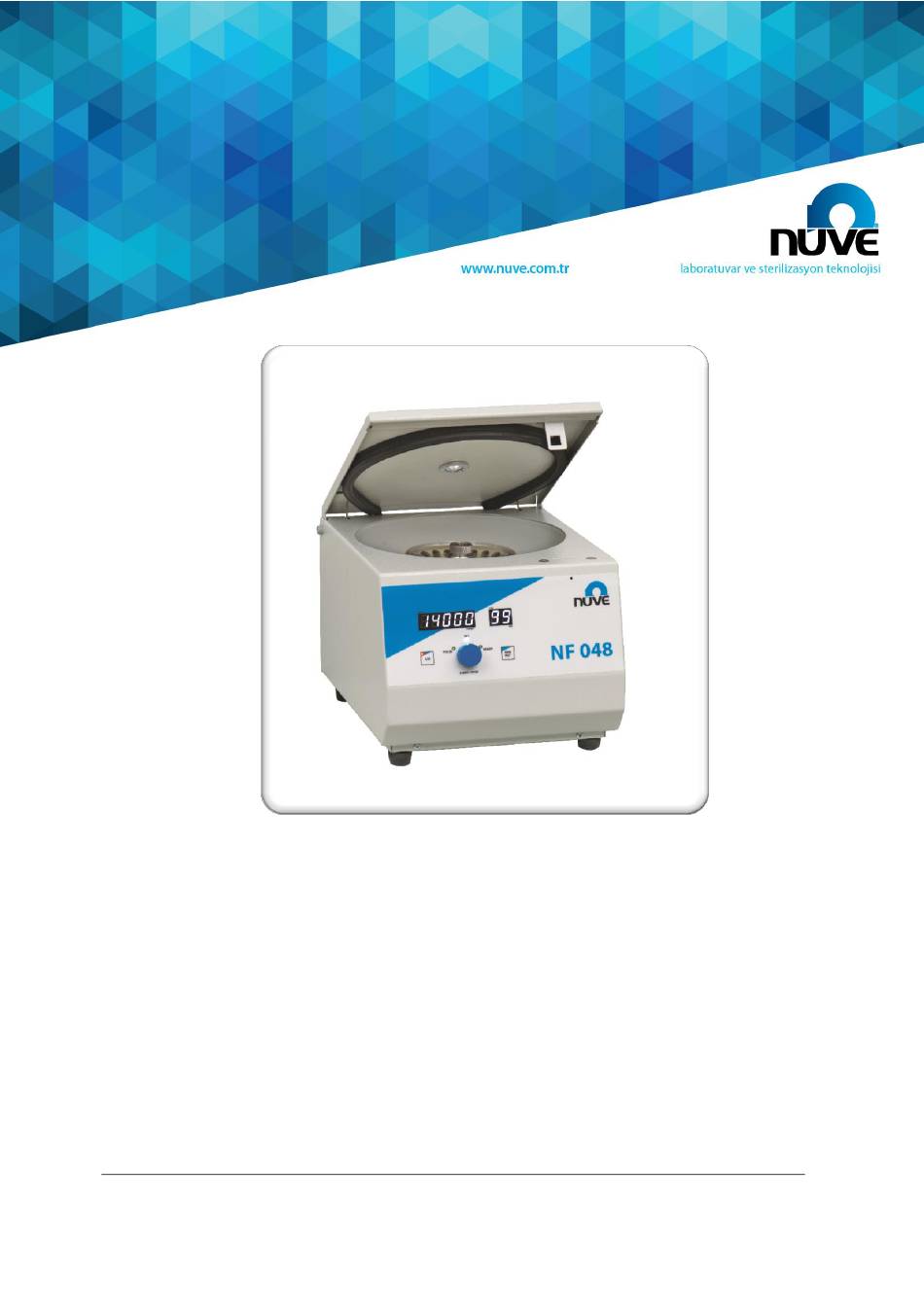

- Page 1 NF48 BENCH TOP CENTRIFUGE USER’S MANUAL NÜVE SANAYİ MALZEMELERİ İMALAT VE TİCARET A.Ş. Z14.K25.225 REV.NO.:07 REV.DATE:04/2017...
- Page 2 Akyurt 06750 Ankara TEL: +(90) 312 399 28 30 (pbx) FAX: +(90) 312 399 21 97 E-mail:satis@nuve.com.tr WARRANTY CERTIFICATE Nüve warrants that the equipment delivered is free from defects during material and workmanship. This warranty is provided for a period of two years. The warranty period begins from the delivery date.
- Page 3 Information contained in this document is the property of Nüve. It may not be duplicated or distributed without its permission. PLEASE REGISTER ONLINE TO VALIDATE WARRANTY: To register your warranty online, please visit our web page www.nuve.com.tr and fill in WARRANTY REGISTRATION FORM.
-
Page 4: Table Of Contents
USE AND FUNCTION ......................4 SECTION 2 – TECHNICAL SPECIFICATIONS ..................5 2.1. TECHNICAL SPECIFICATIONS TABLE ................. 5 2.2. ACCESSORIES FOR NF48 ....................5 2.3. GENERAL PRESENTATION ....................6 2.4. RECAUTIONS AND USAGE LIMITATIONS ................6 SECTION 3 – SYMBOLS ........................7 SECTION 4 –... -
Page 5: Section 1 - Introduction

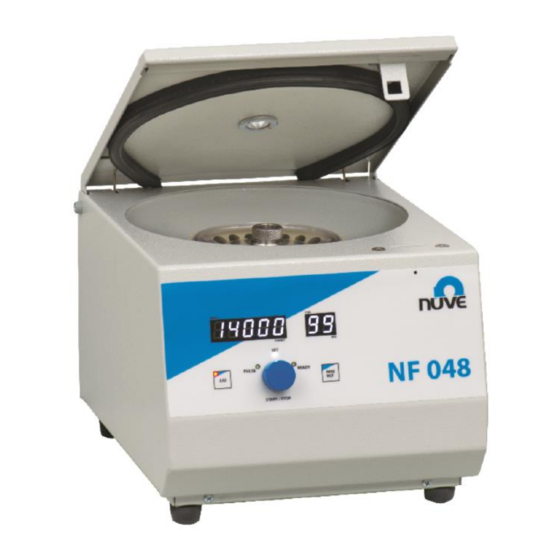

SECTION 1 – INTRODUCTION 1.1. USE AND FUNCTION NF 048 Bench Top Centrifuge is especially designed for the separation of blood samples, urine particles sedimentation and for carrying out the other routine applications in the microbiology laboratories. NF 048 is a compact centrifuge that can be used both as microliter and hematocrit centrifuge. -
Page 6: Section 2 - Technical Specifications
350x420x460 (WxDxH) mm. Net / Packed 13/17 weight (kg) 2.2. ACCESSORIES FOR NF48 A 14 005 Adaptor, 1x500/800 µl Capacity, Maximum Tube Diameter 8 mm A 14 007 Adaptor, 1x250/400/700 ul Capacity, Maximum Tube Diameter 6 mm A 14 006 Adaptor, 1x200 µl PCR Capacity, Maximum Tube Diameter 6.5 mm... -
Page 7: General Presentation
Apply the manual lid opening procedure in the case of power cut or in the case of any error. Use only the the spare parts, rotors and accessories which are supplied by NUVE. Load the rotor according to the explanations in the user’s manual. -
Page 8: Section 3 - Symbols
Tubes which are used in the centrifuge should not be deformed by the effect of the centrifuge force. Use glass tubes to balance, if glass tubes are used. Use plastics tubes to balance, if plastics tubes are used. ... -
Page 9: Main Supply
According to the standard IEC 61010-2-020, anyone and any hazardous materials should not be in the 300 mm safety zone while centrifuge is running. The centrifuges are designed to operate safely under the following conditions: - Indoor use only ° °... -
Page 10: Making Program
01- Status Display This display shows the speed values (RPM or RCF) during programming. It also indicates accelerating condition, braking condition, power failure condition, open lid condition and the condition that occurs when Start is pressed while the lid is open by the expressions Acc, br, E oFF, oPEn, cLoSE Lid, respectively. -
Page 11: Pulse Mode
Determine the rotor type, the speed and time, the acceleration and braking rates. Load the rotor with samples by paying attention to the dynamic and static balances. Set the all parameters for program. Close the lid, see that the lid open warning led turns off. ... -
Page 12: Safety Interlock System
You may display the RPM or RCF value on the speed display during the run by pushing the function button. The centrifuge waits at the stand-by position with the program values of the last program. Please open the lid after every operation, otherwise the centrifuge cannot be run again. -
Page 13: Preparation Of The Rotor To Run
PREPARATION OF THE ROTOR TO RUN Before installation, check the rotor for corrosion and cleanliness. Chemical corrosion or mechanical corrosion may do severe damage to the rotor and the centrifuge. Particles which are stuck inside the inserts cause the breakage of tubes and lead to major imbalance please check to make sure that no particles are left on the rotor. -
Page 14: Section 7 - Cleaning And Periodic Maintenance
Glutaraldehyde is a toxic substance and increases the rate of fatty acid in the body. CORROSION INFORMATIO N Nuve rotors which are made of aluminum are designed to spin at proper RCFs for many years. When used properly, their resistance to corrosion and their life span increases and the imbalance problems decrease. -
Page 15: Cleaning
If the centrifuged samples are corrosive, only rinsing with water is not sufficient. The residuals dissolve in the water and humidity on the rotor and in the buckets. Some particles may stick to the tubes, buckets and adapters. These particles crash and do harm to anodized surface during centrifugation and ease the occurrence of corrosion. -
Page 16: Bölüm 9 - Troubleshooting
BÖLÜM 9 – TROUBLESHOOTING If the centrifuge fails to operate, Check that, The on/off switch is on, The fuses are sound, The plug is not defective, The centrifuge is well connected to the supply, The electricity installation is not defective, ... -
Page 17: Section 10 - Electrical Circuit Diagrams
SECTION 10 – ELECTRICAL CIRCUIT DIAGRAMS... -
Page 18: Section 11 - Warning Label
SECTION 11 – WARNING LABEL EARTHED FUSES...
Need help?
Do you have a question about the NF48 and is the answer not in the manual?
Questions and answers
COMO SOLUCIONAR UNPROBLEMA QUE AL PULSAR EL BOTON DE COMIENZO SE ABRE LA TAPA
The NUVE NF48 centrifuge is designed not to operate if the lid is open. If the lid opens or remains open when the start button is pressed, ensure the following steps are taken:
1. Check the Lid Indicator: Ensure the lid indicator light is off. If it is on, the lid may not be properly closed.
2. Close the Lid Properly: Verify that the lid is securely closed and latched.
3. Inspect the Safety Interlock System: The centrifuge is equipped with a safety interlock system to prevent operation when the lid is open. If the issue persists, inspect the interlock system for any malfunction and ensure it is functioning correctly.
4. Contact Support: If the problem continues after performing these checks, consult the user manual for troubleshooting or contact the manufacturer's technical support for assistance.
Remember, the device should not start if the lid is open, as this is a safety feature.
