NÜVE SANAYİ MALZEMELERİ İMALAT VE TİCARET A.Ş.
NF 048
BENCH - TOP CENTRIFUGE
USER'S MANUAL
Z14.K 25 225
Rev. No: 06
Rev. Date: 01/2016
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NF 048 and is the answer not in the manual?

Questions and answers

Related Manuals for NUVE NF 048

Summary of Contents for NUVE NF 048

  • Page 1 NÜVE SANAYİ MALZEMELERİ İMALAT VE TİCARET A.Ş. NF 048 BENCH - TOP CENTRIFUGE USER’S MANUAL Z14.K 25 225 Rev. No: 06 Rev. Date: 01/2016...
  • Page 2 TEL: +(90) 312 399 28 30 (pbx) FAX: +(90) 312 399 21 97 E-mail: sales@nuve.com.tr WARRANTY CERTIFICATE Nüve warrants that the equipment delivered is free from defects during material and workmanship. This warranty is provided for a period of two years. The warranty period begins from the delivery date.
  • Page 3 Information contained in this document is the property of Nüve. It may not be duplicated or distributed without its permission. PLEASE REGISTER ONLINE TO VALIDATE WARRANTY: To register your warranty online, please visit our web page www.nuve.com.tr and fill in WARRANTY REGISTRATION FORM.

  • Page 4: Table Of Contents

    CLEANING ........................12 STERILIZATION ......................13 SECTION 8 - DISPOSAL MANAGEMENT CONCEPT..............13 SECTION 9 - TROUBLESHOOTING .................... 13 SECTION 10 - ELECTRICAL CIRCUIT DIAGRAM ..............15 10.1 NF 048 ELECTRICAL CIRCUIT DIAGRAM ..............15 SECTION 11 - WARNING LABEL ....................16...

  • Page 5: Section 1 - Introduction

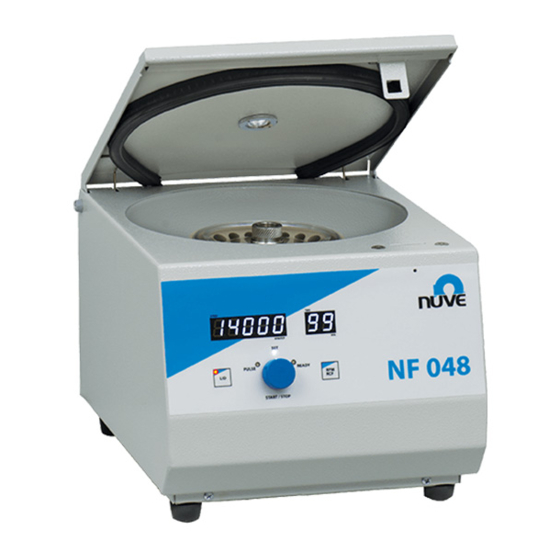

    NF 048 is a compact centrifuge that can be used both as microliter and hematocrit centrifuge. With its microliter rotor accepting small capacity tubes up to 2 ml, NF 048 is ideal for hospital and research laboratories and for applications such as pelleting of DNA and protein, DNA amplification, enzyme tests, centrifugation of cells, yeast and microorganisms at high speed.

  • Page 6: Section 2 - Technical Specifications

    275x355x240 Packing Dim.s (WxDxH) mm. 350x420x460 Net / Packed weight (kg) 13/17 2.2 ACCESSORIES FOR NF 048  Adaptor, 1x500/800 µl Capacity, Maximum Tube Diameter 8 mm A 14 005  Adaptor, 1x250/400/700 ul Capacity, Maximum Tube Diameter 6 mm A 14 007 ...

  • Page 7: General Presentation

    Apply the manual lid opening procedure in the case of power cut or in the case of any error.  Use only the the spare parts, rotors and accessories which are supplied by NUVE.  Load the rotor according to the explanations in the user’s manual.

  • Page 8: Section 3 - Symbols

     Do not use corrosive materials which may be harmful for the device integrity, rotor and accessories.  Do not use rotors and accessories with corrosion and mechanical damages.  Mains supply should be appropriate to power of the device and grounded. ...

  • Page 9: Positioning

    4.3 POSITIONING  Check that no damage has occurred during transport.  Check that the positioning is suitable for users.  Lift the centrifuge underneath and carry it to its place carefully. Check that the centrifuge is stable on its four pads. ...

  • Page 10: Section 5 - Operating Principles

    SECTION 5 OPERATING PRINCIPLES 5.1 CONTROL PANEL Figure 2 01-Speed Display :  This display shows the speed values (RPM or RCF) during programming. It also indicates accelerating condition, braking condition, power failure condition, open lid condition and the condition that occurs when Start is pressed while the lid is open by the expressions Acc, br, E oFF, oPEn, cLoSE Lid, respectively.

  • Page 11: Section 6 - Operating Principles

    07-Start Key and Led:  This key starts the centrifugation operation and the led turns on. The led turns off if the program is stopped manually or the lid is opened at the end of the program. 08-Value Decreasing Key : ...

  • Page 12: Programming

    6.2 PROGRAMMING At stand-by position,  Push the Set key. The rotor type starts to flash on the speed display.  Choose the rotor type by using the Value Increase and Decrease keys (nC for the microlitre rotor, HE for the haematocrit rotor). ...

  • Page 13: Periodic Maintenance

    Turn-off the equipment and plug it off prior to each maintenance, cleaning and sterilization. 7.1 PERIODIC MAINTENANCE  Before every use, check the rotor, inserts, adapters and motor shaft against corrosion, deformation and cracks.  Before loading the rotor, be sure that there is no substance in the tube inserts and the chamber. Any substance left in the tube inserts will break the tubes and any substance left in the chamber will damage the rotor and the chamber.

  • Page 14: Sterilization

     In case of any spillage or tube breakage, the rotor, the tube inserts and the adapters should be washed well. Special attention should be paid to the glass particles which may be left in the tube inserts and adaptors. Be sure that those kinds of particles are removed and cleaned well because the remaining particles may cause further tube breakage.
  • Page 15 It occurs in case of a power failure during the run. It dissapears if you wait for 2 minutes or open and close the lid again. PLEASE CONTACT TO AN AUTHORIZED NUVE AGENT TO SEEK TECHNICAL HELP IF AN ERROR OCCURS.

  • Page 16: Section 10 - Electrical Circuit Diagram

    SECTION 10 ELECTRICAL CIRCUIT DIAGRAM 10.1 NF 048 ELECTRICAL CIRCUIT DIAGRAM...

  • Page 17: Section 11 - Warning Label

    SECTION 11 WARNING LABEL GROUNDED PLUG...
