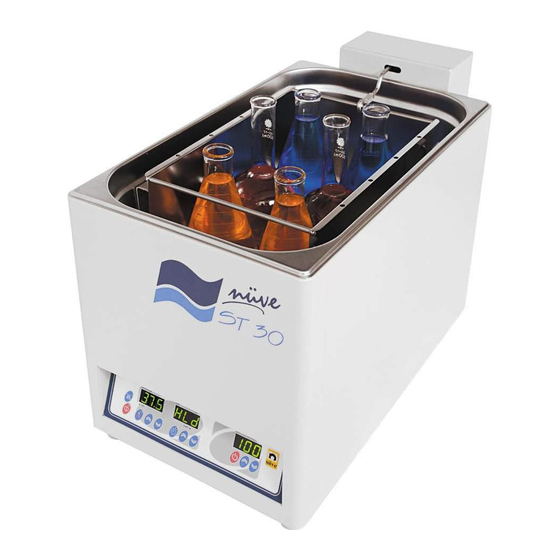

- Page 1 NÜVE SANAYİ MALZEMELERİ İMALAT VE TİCARET A.Ş ST 30 SHAKING WATER BATH USER’S MANUAL Z14.K 25 282 Rev.No: 02 Rev. Date: 01 / 2016...
- Page 2 Information contained in this document is the property of Nüve. It may not be duplicated or distributed without its permission SANAYİ MALZEMELERİ İMALAT VE TİCARET A.Ş. Saracalar Mah. Saracalar Kümeevleri No: 4/2 Akyurt 06750 Ankara-TURKEY : (90.312) 399 28 30-31-32 : (90.312) 399 21 97 Sales : sales@nuve.com.tr Technical Service: service@nuve.com.tr...
- Page 3 THE VALIDITY OF THE GUARANTEE IS SUBJECT TO THE OBSERVATION OF THE INSTRUCTIONS AND PRECAUTIONS DESCRIBED IN THIS MANUAL. PLEASE REGISTER ONLINE TO VALIDATE WARRANTY: To register your warranty online, please visit our web page www.nuve.com.tr and fill in Warranty Registration Form.
-
Page 4: Table Of Contents
TABLE OF CONTENTS SECTION 1 – INTRODUCTION ......................5 USE AND FUNCTION ......................5 SECTION 2 – TECHNICAL SPECIFICATIONS ................6 TECHNICAL SPECIFICATIONS TABLE ................6 OPTIONAL ACCESSORIES ....................6 SECTION 3 – PRECAUTIONS AND LIMITATIONS OF USAGE ..........7 SECTION 4 – SYMBOLS ........................7 SECTION 5 – INSTALLATION ......................8 ENVIRONMENTAL CONDITIONS ..................8... -
Page 5: Section 1 - Introduction
99.9 hours including hold position The tank of ST 30 is made of stainless steel and all the materials in contact with liquid are made of stainless material. The tank is insulated with glass wool for operating homogenous temperature distribution. -
Page 6: Section 2 - Technical Specifications
SECTION 2 TECHNICAL SPECIFICATIONS 2.1 TECHNICAL SPECIFICATIONS TABLE Technical Specifications ST 30 Ambient temperature +5ºC / 99.9ºC Temperature range Fe – Const. Temperature sensor 0.1ºC Temperature set and display sensitivity Temperature variation (37 ºC) < ± 0.3 ºC Temperature fluctuation (37 ° C) ±0.1 ºC... -
Page 7: Section 3 - Precautions And Limitations Of Usage
SECTION 3 PRECAUTIONS AND LIMITATIONS OF USAGE Do not operate the instrument for purposes other than its main purpose. The instrument should only be used by authorized and trained staff after the instruction manual has been read carefully. Only authorized technical staff can handle the product in case of a failure. -
Page 8: Section 5 - Installation
SECTION 5 INSTALLATION 5.1 ENVIRONMENTAL CONDITIONS The water bath is designed to operate safely under the following conditions: • Indoor use only • Ambient temperature: 5°C to 40°C. • Maximum relative humidity for temperature up to 22°C: 80%. • Maximum altitude: 2000 m. •... -
Page 9: General Presentation
5.6 GENERAL PRESENTATION Shaking tank Command and display panel Figure 1 5.7 CONTROL PANEL Figure 2 Heating process start/stop key Alarm mute key Heating led Temperature set key Temperature value increase key Temperature value decrease key Temperature display Alarm led Time set key Time value increase key Time value decrease key... - Page 10 1 – Heating Process Start/Stop Key The key is used to start the set heating program and stop the running program. 2 – Alarm Mute Key The alarm mute key may be used in order to mute the alarm when an error occurred during operation and to mute the alarm at the end of a run.
-
Page 11: Prior To Operation
5.8 PRIOR TO OPERATION 5.8.1 Filling Liquid Fill the tank with distilled water or liquid and put the samples up to the maximum line MAX (see Figure 3). Do not run the device unless distilled water or liquid is fılled up to max line. The distilled water or liquid level above the max level may cause unexpected problems. -
Page 12: Section 6 - Operating Princples
SECTION 6 OPERATING PRINCIPLES 6.1 OPERATING THE UNIT Switch on ST 30 shaking water bath by using the power switch and ensure that the power switch led is on. Observe that command and display panel is activated. ... -
Page 13: Completion Of The Operation
‘dly’ appears on the display. Use value increase and decrease keys in order to set the time for delaying the program start (1 minute – 99.9 hours) Push the time set key again in order to save the delay time to the memory. -
Page 14: Section 7 - Periodical Maintenance And Cleaning
SECTION 7 PERIODICAL MAINTENANCE AND CLEANING 7.1 PERIODICAL MAINTENANCE The shaking water bath does not require any periodical maintenance. 7.2 CLEANING Prior to cleaning please unplug the device and clean the device at the room temperature. A piece of wet cloth may be used in order to remove the dust and dirt from the device. ... -
Page 15: Fuse Replacement
Err0: Motor thermal is off. Contact to the authorized service. Err1: Communication failure between main PCB and display PCB. Contact to the authorized service. If an error occurs, please contact to an authorized NÜVE AGENT to seek technical help. -
Page 16: Section 10 - Electrical Circuit Diagram
SECTION 10 ELECTRICAL CIRCUIT DIAGRAM... -
Page 17: Section 11 - Warning Label
SECTION 11 WARNING LABEL ST 30 FUSES (2 x 10A)
