Summary of Contents for NUVE ST 30

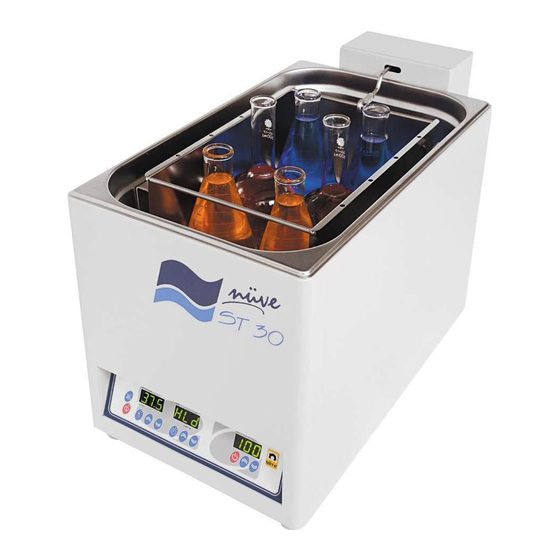

- Page 1 NÜVE SANAYİ MALZEMELERİ İMALAT VE TİCARET A.Ş ST 30 SHAKING WATER BATH USER’S MANUAL Z14.K 25 282 Rev.No: 03 Rev. Date: 10 / 2017...
- Page 2 Information contained in this document is the property of Nüve. It may not be duplicated or distributed without its permission. SANAYİ MALZEMELERİ İMALAT VE TİCARET A.Ş. Saracalar Mah. Saracalar Kümeevleri No: 4/2 Akyurt 06750 Ankara-TURKEY : (90.312) 399 28 30-31-32 : (90.312) 399 21 97 Sales : sales@nuve.com.tr Technical Service: service@nuve.com.tr...
- Page 3 THE VALIDITY OF THE GUARANTEE IS SUBJECT TO THE OBSERVATION OF THE INSTRUCTIONS AND PRECAUTIONS DESCRIBED IN THIS MANUAL. Lifetime of the device is 10 years. PLEASE REGISTER ONLINE TO VALIDATE WARRANTY: To register your warranty online, please visit our web page www.nuve.com.tr and fill in Warranty Registration Form.
-
Page 4: Table Of Contents
TABLE OF CONTENTS SECTION 1 ...............................5 INTRODUCTION ............................5 USE AND FUNCTION ........................5 SECTION 2 ...............................6 TECHNICAL SPECIFICATIONS......................6 TECHNICAL SPECIFICATIONS TABLE ..................6 OPTIONAL ACCESSORIES ......................6 SECTION 3 ...............................7 PRECAUTIONS AND LIMITATIONS OF USAGE ...................7 SECTION 4 ...............................7 SYMBOLS ..............................7 SECTION 5 ...............................8 INSTALLATION ............................8 ENVIRONMENTAL CONDITIONS .....................8 HANDLING AND TRANSPORTATION ..................8... -
Page 5: Section 1
The tank of ST 30 is made of stainless steel and all the materials in contact with liquid are made of stainless material. The tank is insulated with glass wool for operating homogenous temperature distribution. -
Page 6: Section 2
SECTION 2 TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS TABLE Technical Specifications ST 30 Ambient temperature +5ºC / 99.9ºC Temperature range Fe – Const. Temperature sensor Control System N-Prime 0.1ºC Temperature set and display sensitivity Temperature variation (37 ºC) < ± 0.3 ºC Temperature fluctuation (37 °... -
Page 7: Section 3
SECTION 3 PRECAUTIONS AND LIMITATIONS OF USAGE Do not operate the instrument for purposes other than its main purpose. The instrument should only be used by authorized and trained staff after the instruction manual has been read carefully. Only authorized technical staff can handle the product in case of a failure. -
Page 8: Section 5
SECTION 5 INSTALLATION ENVIRONMENTAL CONDITIONS The water bath is designed to operate safely under the following conditions: • Indoor use only • Ambient temperature: 5°C to 40°C. • Maximum relative humidity for temperature up to 22°C: 80%. • Maximum altitude: 2000 m. •... -
Page 9: General Presentation
Check that the water bath is stable on its four pads. Check that the positioning of the water bath prevents interference with other equipment in the near surrounding. 5.6 GENERAL PRESENTATION Shaking tank Display and Control Panel Input USB Figure 1 5.7 CONTROL PANEL Figure 2... -
Page 10: Explanations And Functions For Display And Control Panel
09- “End of the program” Lamp 01- Temperature display 02- Time display 10- Usb Lamp 03- Encoder Button 11- Back / Alarm Mute Button 04- Start / Stop Button 12- Shaking speed display 05- Heating Lamp 13- Shaking process start / stop button 06- “Operating the program”... -
Page 11: Prior To Operation
09-“End of The Program” Lamp It is a warning lamp that indicates that the running program is finished. 10-Usb Lamp This lamp is on when connected to a USB external memory. The device supports up to 8 GB of external memory. 11-Back / Alarm Mute Button This button is used to silence audible alarms in case of error and cancel the changes in the menu. -
Page 12: Section 6
Figure 3 SECTION 6 OPERATING PRINCIPLES 6.1 OPERATING THE UNIT Switch on ST 30 shaking water bath by using the power switch and ensure that the power switch led is on. Observe that display and control is activated. ... -
Page 13: Op Operator Menu Parameters
Wait by pressing the encoder button. Lift your hand when you see "oP" on the temperature display and again press the encoder button. If the device has a menu protection password, password screen “oPS” will come on the temperature display. You enter the set password to turn the encoder button right and left. -
Page 14: Programming Summary
6.3 PROGRAMMING SUMMARY You can set the steam sterilizer on stand-by. Follow the below steps to set and save the values. Push the encoder button By pushing the encoder button select SET menu. See that second LED flashes in the temperature display, again push the encoder button. - Page 15 Push the encoder button and save set value. Turn the encoder button to the right. See that second LED flashes in the time display, again push the encoder button. See the parameter flashing on the time display. By turning the encoder button set operating time value (01 minute to 99 hours 54 minutes or Hold).
-
Page 16: Completion Of The Operation
The set time start to count after the device reaches the set temperature. 6.4 COMPLETION OF THE OPERATION Observe that the set program is completed (See “End” and “End of the program lamp”). Push the heating process stop key in order to stop the heating. If the device functions with shaking, push the shaking process stop key to stop the shaking process. -
Page 17: Section 7
SECTION 7 PERIODICAL MAINTENANCE AND CLEANING 7.1 PERIODICAL MAINTENANCE The shaking water bath does not require any periodical maintenance. 7.2 CLEANING Prior to cleaning please unplug the device and clean the device at the room temperature. A piece of wet cloth may be used in order to remove the dust and dirt from the device. ... -
Page 18: Error Codes And Explanations
9.1 ERROR CODES AND EXPLANATIONS Err0: Motor thermal is off. Contact to the authorized service. Er1: The temperature sensor endings are broken. The error code flashes on the temperature display and an audible alarm sounds. Er2: An electronic failure occurs in the microprocessor. The error code flashes on the temperature display and an audible alarm sounds. -
Page 19: Section 10
SECTION 10 ELECTRICAL CIRCUIT DIAGRAM... -
Page 20: Section 11
SECTION 11 WARNING LABEL ST 30 FUSES (2 x 10A)
