Function
Setting the operating
mode
Sequence of operations
28

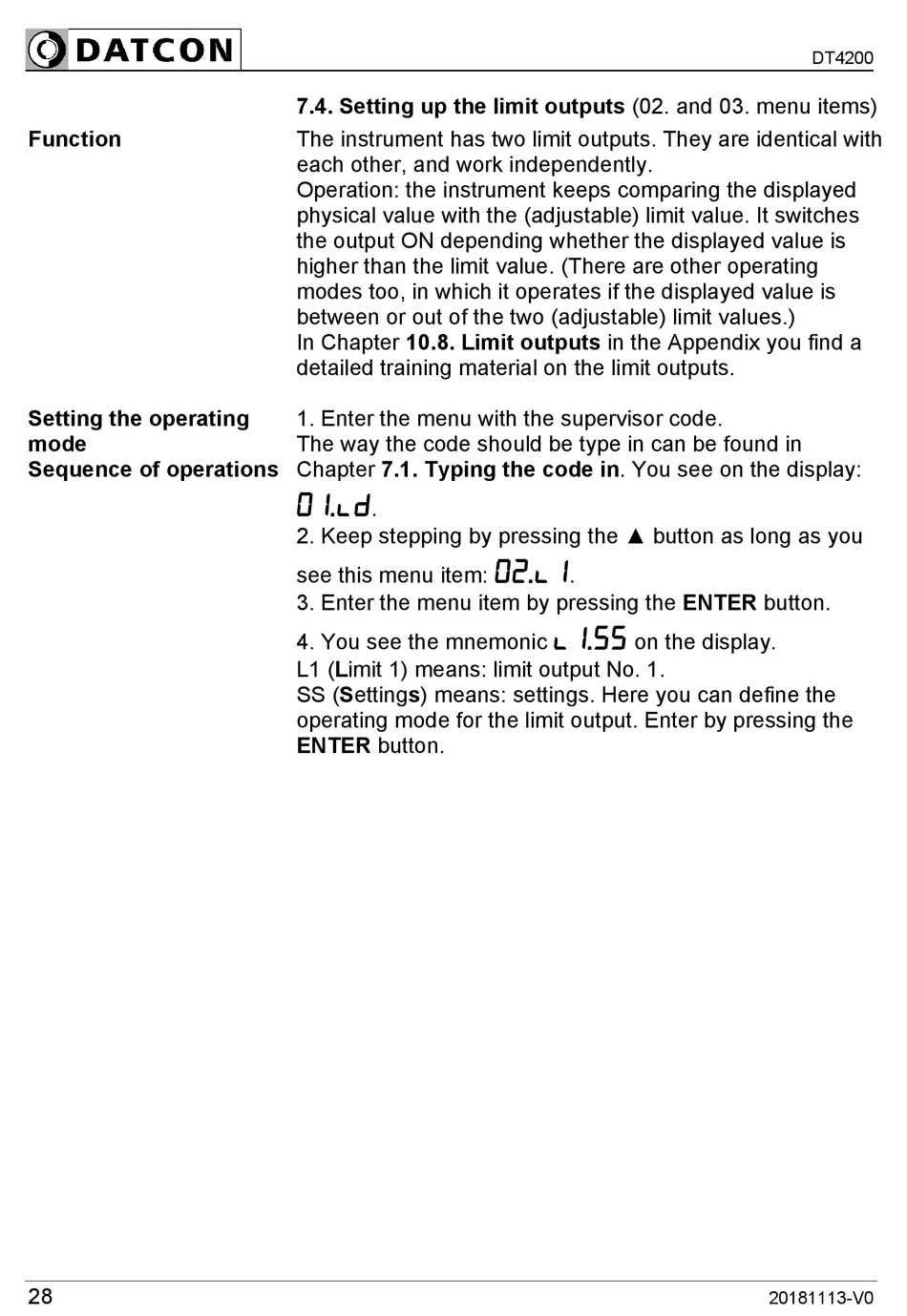

7.4. Setting up the limit outputs (02. and 03. menu items)

The instrument has two limit outputs. They are identical with
each other, and work independently.
Operation: the instrument keeps comparing the displayed
physical value with the (adjustable) limit value. It switches
the output ON depending whether the displayed value is
higher than the limit value. (There are other operating
modes too, in which it operates if the displayed value is
between or out of the two (adjustable) limit values.)
In Chapter 10.8. Limit outputs in the Appendix you find a
detailed training material on the limit outputs.
1. Enter the menu with the supervisor code.
The way the code should be type in can be found in
Chapter 7.1. Typing the code in. You see on the display:

.
2. Keep stepping by pressing the ▲ button as long as you
see this menu item:
3. Enter the menu item by pressing the ENTER button.
4. You see the mnemonic
L1 (Limit 1) means: limit output No. 1.
SS (Settings) means: settings. Here you can define the
operating mode for the limit output. Enter by pressing the
ENTER button.

.

on the display.
DT4200
20181113-V0
