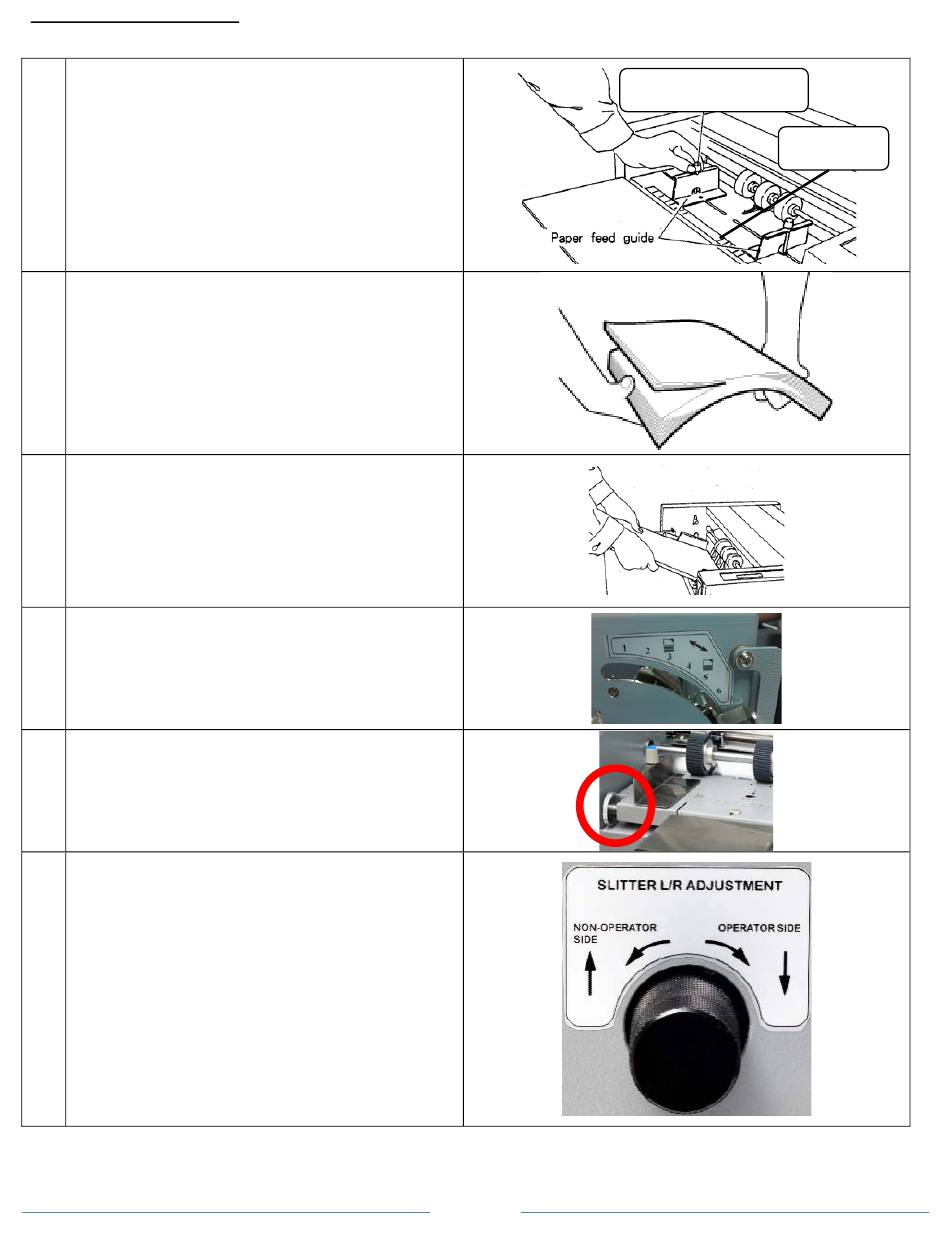

SETTING UP PROCEDURE

To set the width of paper, loosen thumbscrew
1 knob on the side guide and slide to position.
Use marking as reference point.
Fan paper before loading. This will reduce
2 static and toner adhesion due to printing.
For best result, the paper stack should be flat.
Push the feed tray down and load the paper.
3
Readjust paper guide if needed.
Adjust tray pressure. For thinner paper, the
4 number should be higher. For heavier paper
the number should be lower.
Use slitter registration adjustment knob to
5 compensate for printing registration. The
knob will allow ± 2mm of adjustment.
Rotate the sitter adjustment knob to align
6
with die module or printer variation
Page 9
Thumbscrew knob
Markings
