SLITTER ALIGNMENT

Adjust slitter to align with images when needed.
1. Loosen a bit the slitter lock thumbscrew.
2. Turn the slitter adjustment knob clockwise or counter-clockwise 1 full.
3. Run one sheet through to see if slitter is correction position by pressing start button.
4. If slitter alignment is worst, turn slitter adjustment knob in the opposite direction. Repeat step 2 & 3
until slitter alignment is at the desire position.
5. After the slitter is aligned, tighten the slitter lock thumbscrew.

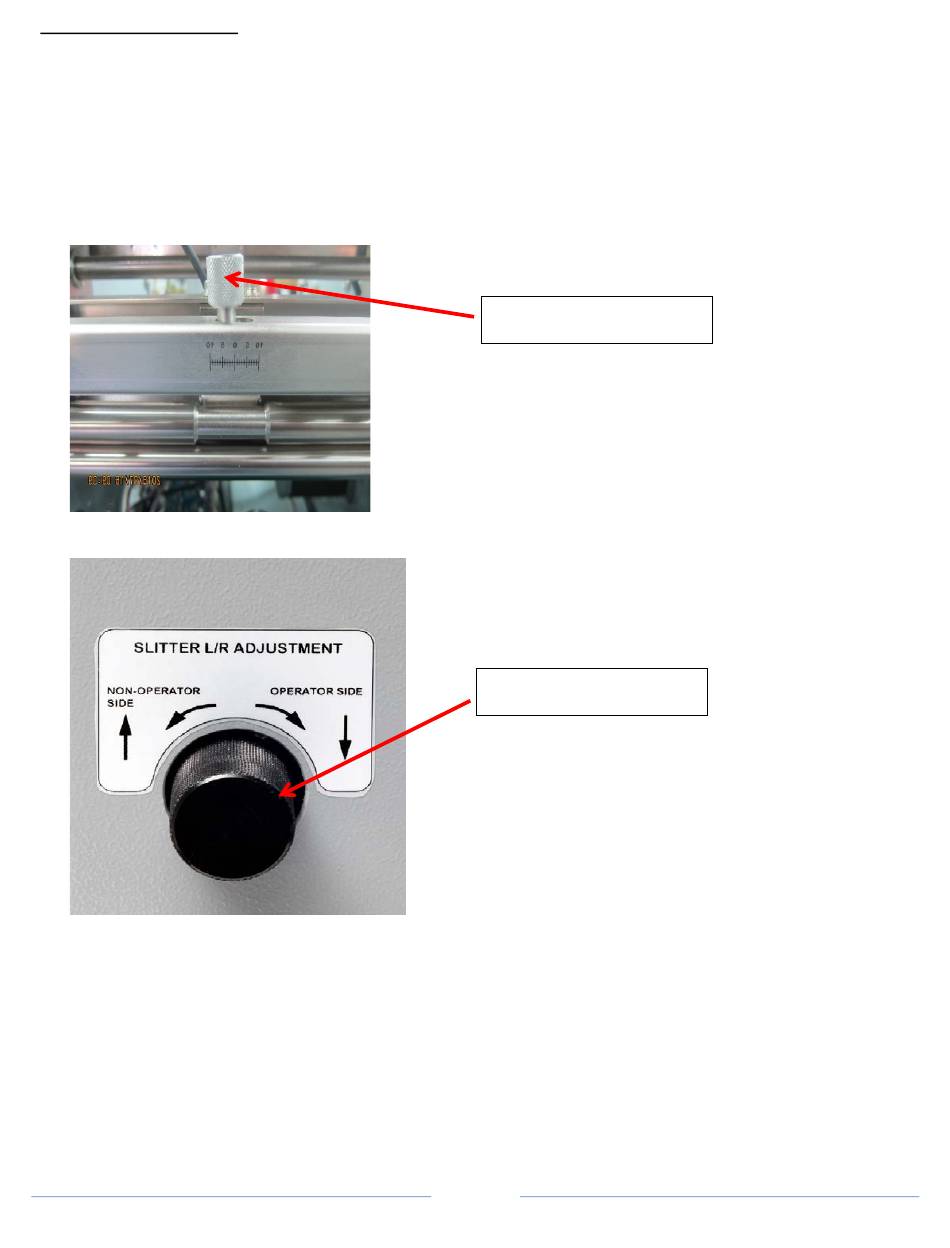

Slitter lock thumbscrew
Figure 7
Slitter adjustment knob
Figure 8
