CREASE SKEW ADJUSTMENT

Skew adjustment is needed only when folding finished paper is skew.

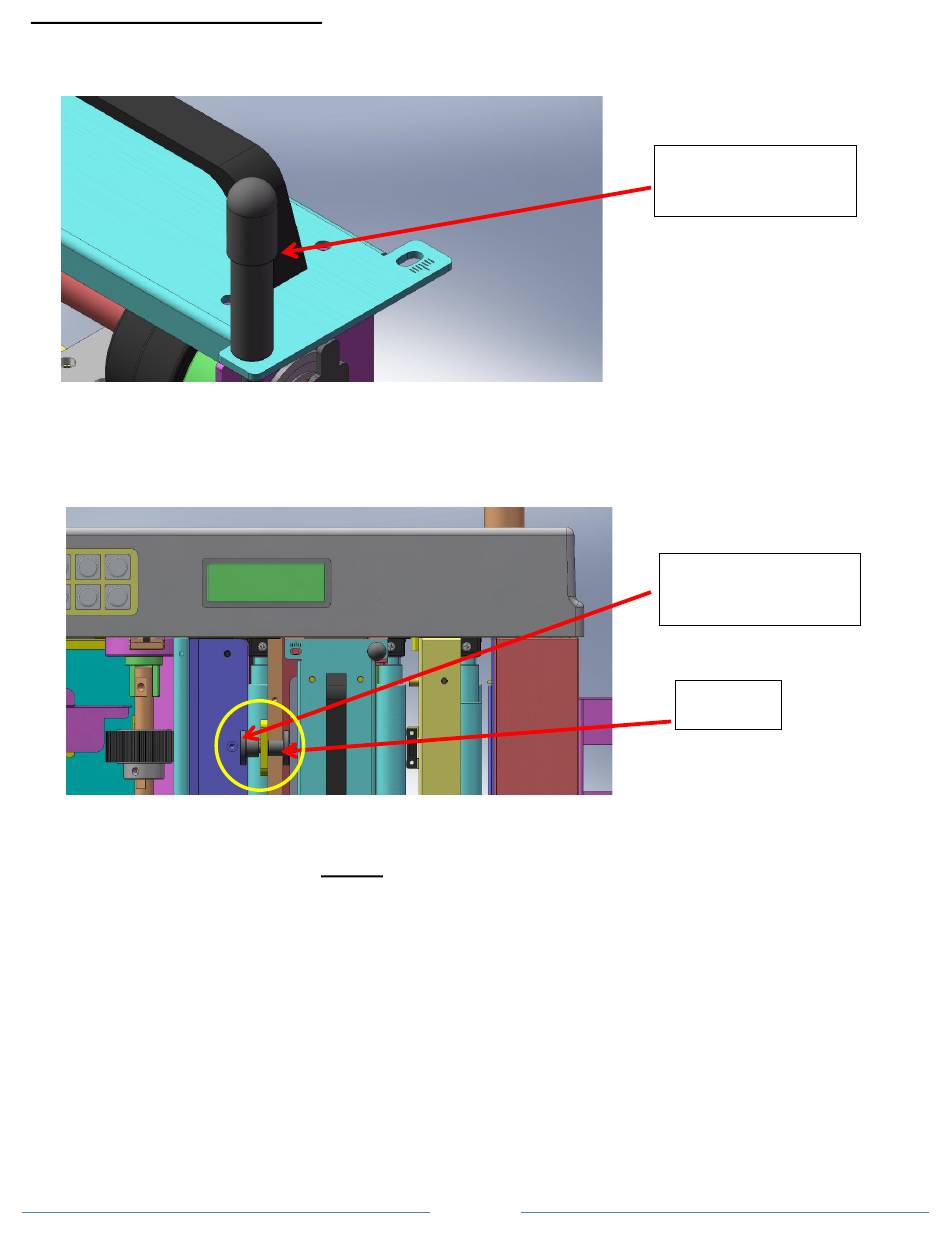

1. The crease module has 2 thumbscrews. Loosen thumbscrew on operator side only.
Figure 5
Loosen lock nut.
2.
Turn adjustment screw to ½ turns.
3.
Figure 6
4. Make sure the crease module is against the adjustment screw and press "Start" to test 1 sheet of paper.
5. Check fold to see if more adjustment needed. If skew is worst turn thumbscrew opposite direction. If
more adjustment needed, repeat step 3 and 4.
6. If skew has been corrected, turn the "Lock Nut" to hold adjustment skew in position.
Page 21
Loosen thumbscrew
on operator side.
Adjustment
thumbscrew
Lock nut
