Atlona AT-HDVS-150-TX-WP Installation Manual

Two-Input Wall Plate Switcher
for HDMI and VGA Inputs with
HDBaseT Output
AT-HDVS-150-TX-WP Installation Guide
Please check http://www.atlona.com/product/AT-HDVS-150-
TX-WP for the most recent firmware update or manual.

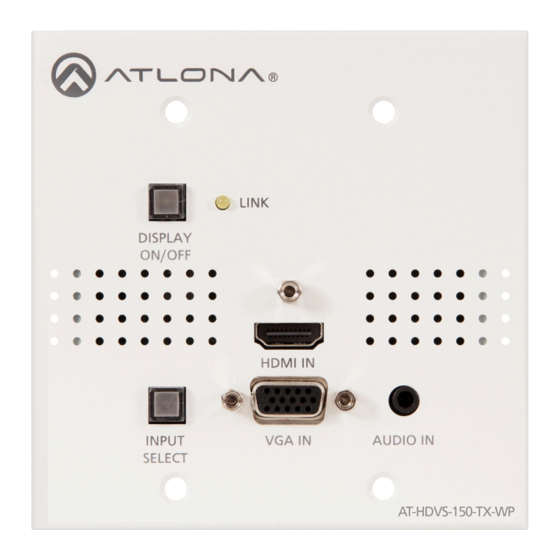

The Atlona AT-HDVS-150-TX-WP is a 2×1 wall plate switcher with display control for HDMI
and VGA transmission over HDBaseT™. It features an HDMI input plus VGA input with 3.5mm
audio connector and a two-gang, US or UK two-gang wall plate. Plates without buttons are also
available (AT-HDVS-TX-WP-NB). Designed as a remote input device for the AT-UHD-CLSO-824
matrix switcher, the AT-HDVS-150-TX-WP combines the benefits of a switcher with built-in auto-
switching and the advantages of long-distance HDBaseT signal extension over a single cable. HDMI
signals up to 4K/UHD @ 60Hz with embedded audio, VGA input signals up to 1920×1200 video,
and control signals can be extended up to 230 feet (70 meters). The switcher enables auto display
on/off, auto-switching, along with other features. The switcher receives power from the AT-UHD-
CLSO-824 using Power over Ethernet. The AT-HDVS-150-TX-WP fits inside any 40 mm deep two-
gang electrical box or mud ring and is ideal for long distance transmission and display control in
corporate or educational settings using analog and digital sources.

Package Contents

• 1 x AT-HDVS-150-TX-WP
• 1 x Wall plate covers (US)
• 4 x US wall plate screws
• 2 x UK wall plate screws
• 1 x Installation Guide
