Update Instructions

The following procedure is used for both the AT-HDVS-150-TX and the AT-HDVS-150-TX-PSK. The firmware file for

the AT-HDVS-150-TX is used for both models.

Requirements

•

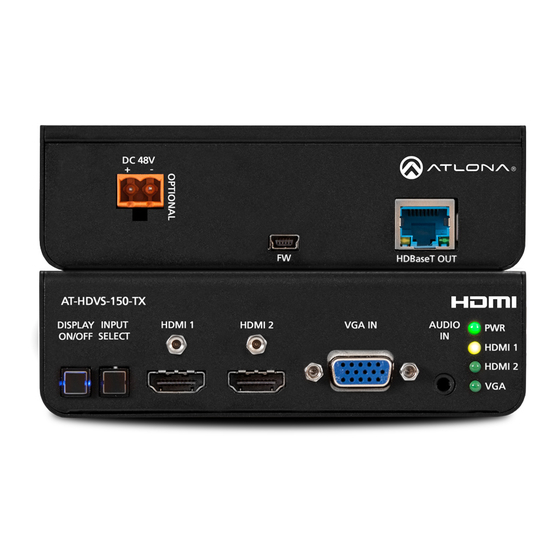

AT-HDVS-150-TX or AT-HDVS-150-TX-PSK

Firmware file: AT-HDVS-150-TX_[version].bin

•

USB Type A to Mini-USB Type B cable

•

Computer with USB port

1. Download the latest firmware from the Atlona web site.

2. Disconnect the power to the AT-HDVS-150-TX by disconnecting the Ethernet cable from the HDBaseT OUT port

on the AT-HDVS-150-TX.

3. Press and hold the DISPLAY ON/OFF button.

4. While pressing the DISPLAY ON/OFF button, connect the USB cable from the computer to the FW port on the

AT-HDVS-150-TX. When the USB cable is connected, the PWR LED indicator will glow solid green.

5. After a few seconds, a folder with the name USB UPDATER, will be displayed. Release the DISPLAY ON/OFF

button.

Atlona Technical Support: +1 877.536.3976 option 1

FW port

AT-HDVS-150-TX / TX-PSK

Table of Contents

Do you have a question about the AT-HDVS-150-TX and is the answer not in the manual?

Page 1 Computer with USB port 1. Download the latest firmware from the Atlona web site. 2. Disconnect the power to the AT-HDVS-150-TX by disconnecting the Ethernet cable from the HDBaseT OUT port on the AT-HDVS-150-TX. 3. Press and hold the DISPLAY ON/OFF button.
Page 2 8. Drag-and-drop the AT-HDVS-150-TX_[version].bin firmware file to the drive. 9. After the file has been copied, disconnect the USB cable from both the computer and the AT-HDVS-150-TX. 10. Reconnect the Ethernet cable to the HDBaseT OUT port on the AT-HDVS-150-TX.
