Atlona AT-HDVS-150-TX Installation Manual

Three-Input Switcher for
HDMI and VGA Inputs with
HDBaseT Output
AT-HDVS-150-TX Installation Guide
Please check http://www.atlona.com/product/AT-HDVS-150-
TX for the most recent firmware update or manual.

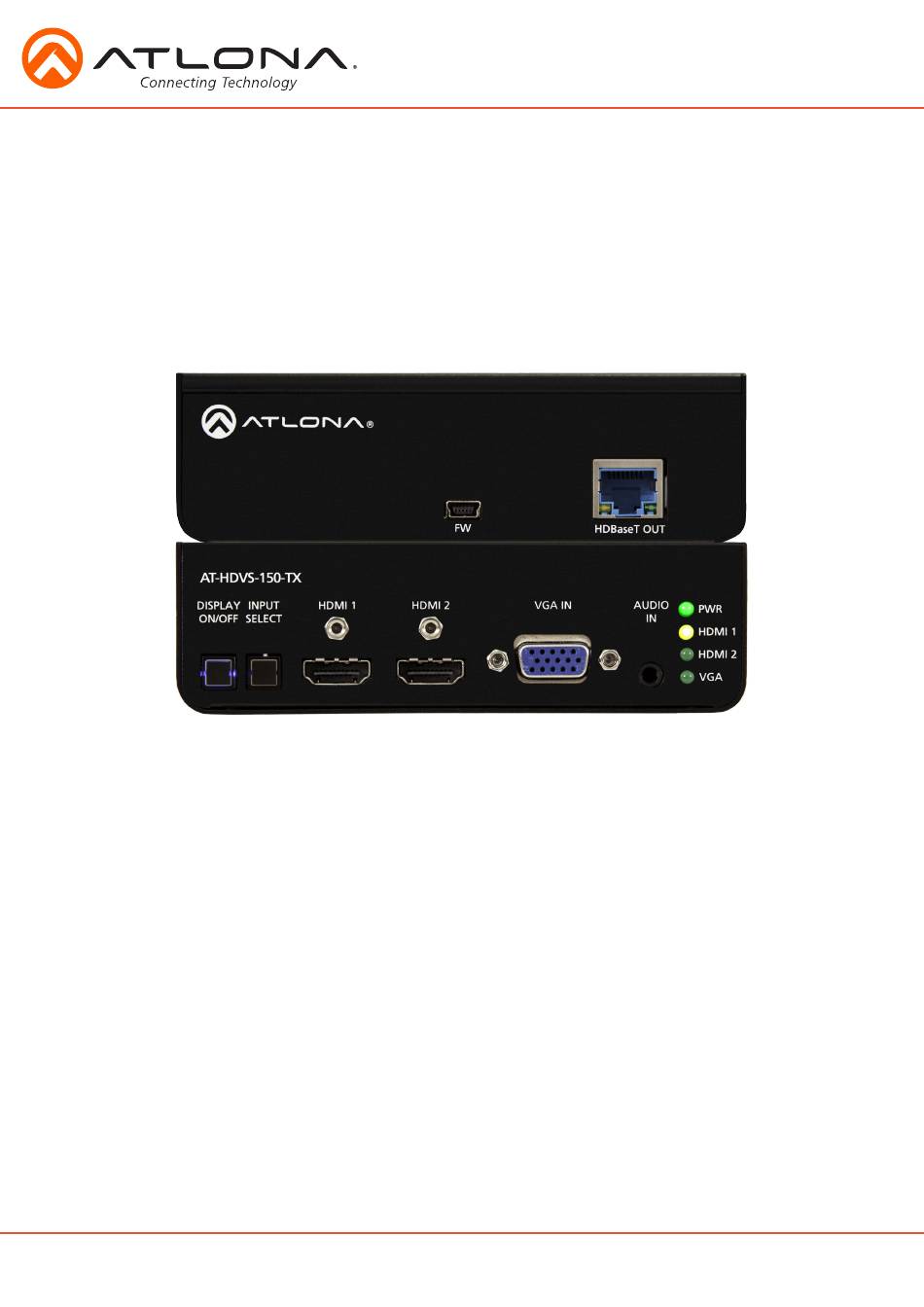

The Atlona AT-HDVS-150-TX is a 3×1 switcher with display control for HDMI and VGA transmission
over HDBaseT™. It features two HDMI inputs plus a VGA input with 3.5mm audio connector.
Designed as a remote input device for the AT-UHD-CLSO-824 matrix switcher, the AT-HDVS-
150-TX combines the benefits of a switcher with built-in auto-switching and the advantages of
long-distance HDBaseT signal extension over a single cable. HDMI signals up to 4K/UHD @ 60Hz
with embedded audio, VGA input signals up to 1920×1200 video, and control signals can be
extended up to 230 feet (70 meters). The switcher enables auto display on/off, auto-switching,
along with other features. The switcher receives power from the AT-UHD-CLSO-824 using Power
over Ethernet. The AT-HDVS-150-TX is ideal for long distance transmission and display control in
corporate or educational settings using analog and digital sources.
Package Contents
• 1 x AT-HDVS-150-TX
• 1 x Pair of undertable mount ears
• 1 x Installation Guide
