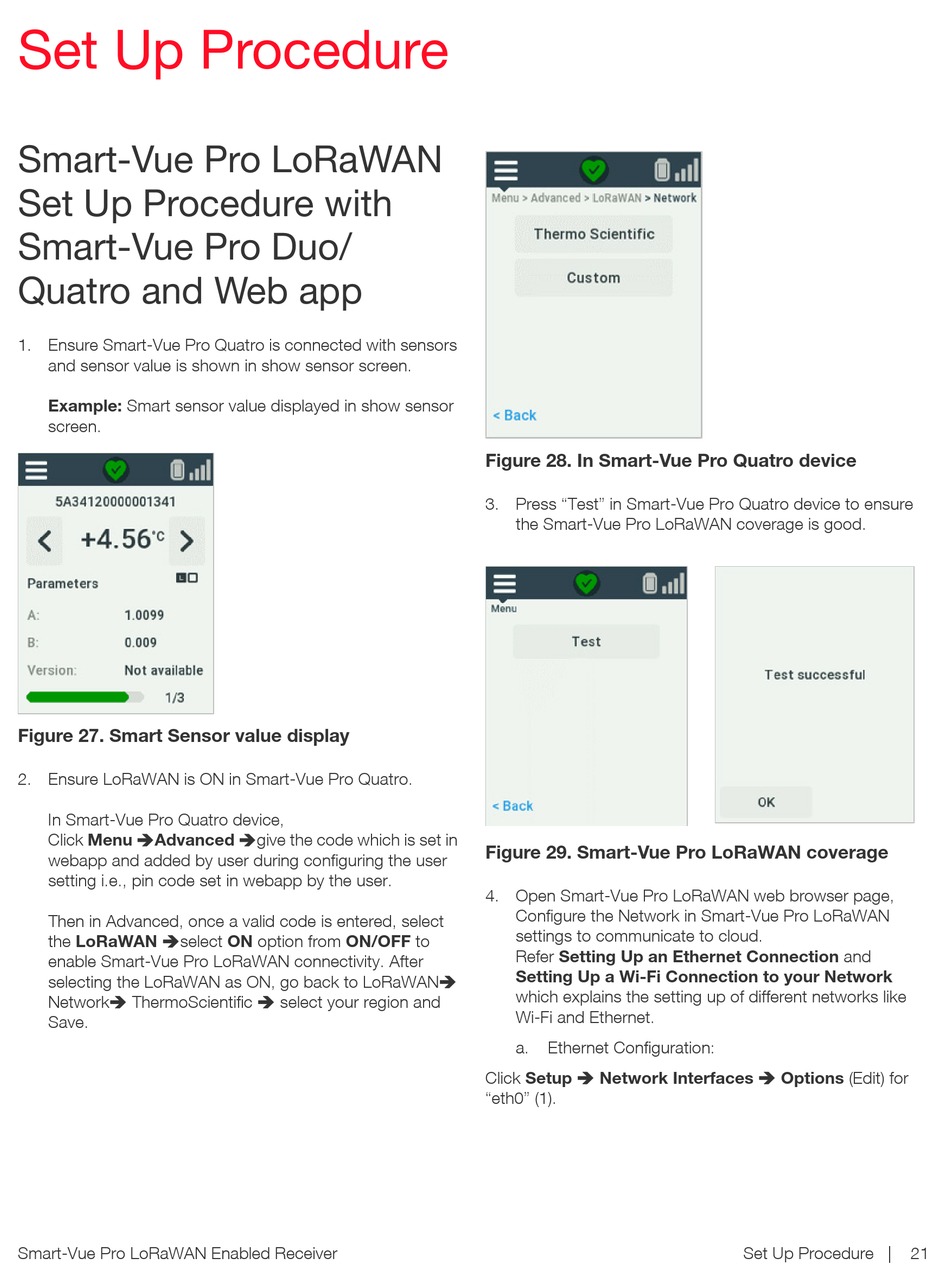

Set Up Procedure

Smart-Vue Pro LoRaWAN
Set Up Procedure with
Smart-Vue Pro Duo/
Quatro and Web app
1. Ensure Smart-Vue Pro Quatro is connected with sensors
and sensor value is shown in show sensor screen.
Example: Smart sensor value displayed in show sensor
screen.
Figure 27. Smart Sensor value display
2. Ensure LoRaWAN is ON in Smart-Vue Pro Quatro.
In Smart-Vue Pro Quatro device,
Click Menu Advanced give the code which is set in
webapp and added by user during configuring the user
setting i.e., pin code set in webapp by the user.
Then in Advanced, once a valid code is entered, select
the LoRaWAN select ON option from ON/OFF to
enable Smart-Vue Pro LoRaWAN connectivity. After
selecting the LoRaWAN as ON, go back to LoRaWAN
Network ThermoScientific  select your region and
Save.
Smart-Vue Pro LoRaWAN Enabled Receiver
Figure 28. In Smart-Vue Pro Quatro device
3. Press "Test" in Smart-Vue Pro Quatro device to ensure
the Smart-Vue Pro LoRaWAN coverage is good.
Figure 29. Smart-Vue Pro LoRaWAN coverage
4. Open Smart-Vue Pro LoRaWAN web browser page,
Configure the Network in Smart-Vue Pro LoRaWAN
settings to communicate to cloud.
Refer Setting Up an Ethernet Connection and
Setting Up a Wi-Fi Connection to your Network
which explains the setting up of different networks like
Wi-Fi and Ethernet.
a. Ethernet Configuration:
Click Setup  Network Interfaces  Options (Edit) for
"eth0" (1).
