Connect to the Configuration
Interface
1. Plug the ethernet network cable into the ethernet port
behind the receiver.

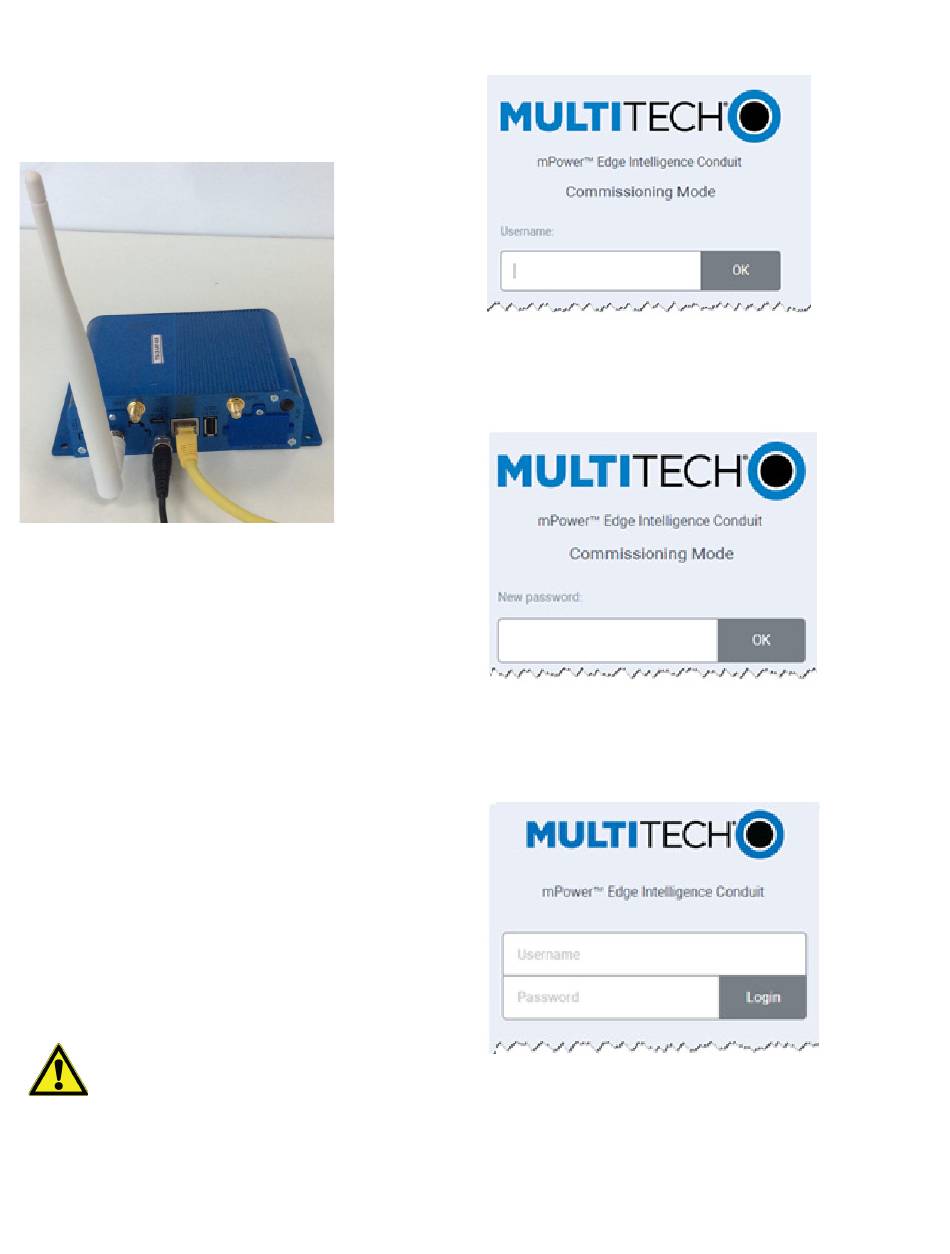

Figure 6. Receiver with ethernet cable
2. Plug the other end of the cable into either your:
a. Local Area Network
If your Local Area Network uses the following IP
addresses: 192.168.2.x, you may skip to step 3.
Otherwise or if you are unsure, see step (b).
b. Computer
The receiver does not have a DHCP server which
means you must manually set an IP address on your
computer to communicate with the receiver.
In your computer's network settings, assign the
following IP information temporarily (ensure you
change it back when done configuring your receiver):
IP: 192.168.2.199
Mask: 255.255.255.0
Do not change the Default Gateway or DNS
3. Use your web browser to connect to the receiver's
default IP address: http://192.168.2.1
IMPORTANT NOTE: We recommend to use
Google Chrome as your web browser. Internet
Explorer is not supported.
Upon first boot, the gateway is in "commission mode" and
you will be prompted to create a new user-name and
password. There is no default user-name or password.
6 | Setting Up your Receiver
4. Assign user-name in commissioning mode and press
OK.
Figure 7. Assign user-name in commissioning
mode
5. Assign a password for that user-name and press OK:
Figure 8. Assign a password for the user-name
6. You may then login using the information you just
entered.
Figure 9. Enter Login Credentials
Note: User-name and Password
While performing the initial configuration of the device for the
network, an administrative user-name and password is set.
