Summary of Contents for Thermo Scientific Smart-Vue Pro Duo

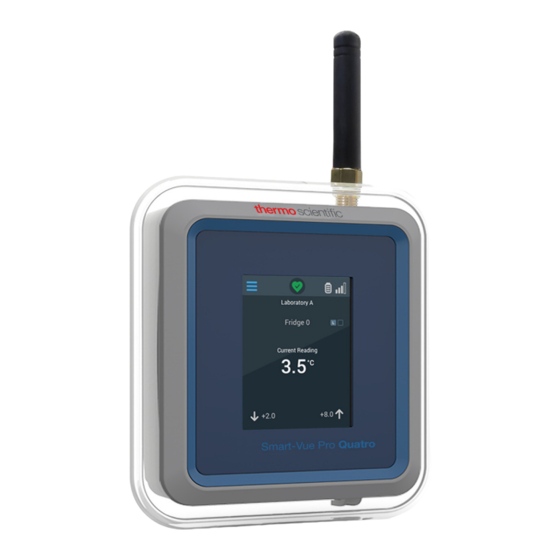

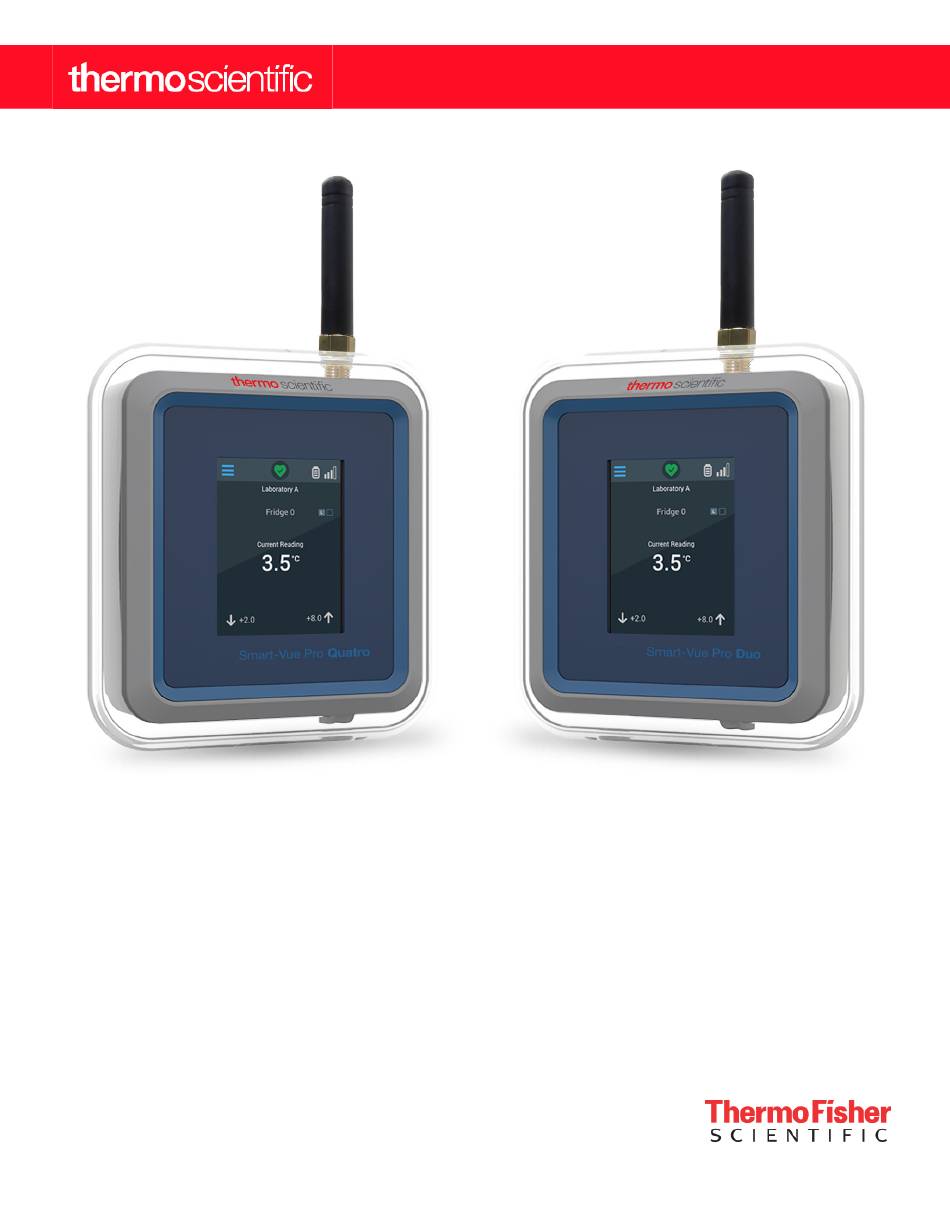

- Page 1 Smart-Vue Pro Duo/Quatro User Guide 331676H05 • Revision A • 6/18/2020...
- Page 2 IMPORTANT Read this instruction manual. Failure to follow the instructions in this manual can result in damage to the unit, injury to operating personnel, and poor equipment performance. CAUTION All internal adjustments and maintenance must be performed by qualified service personnel. Material in this manual is for informational purposes only.
-
Page 3: Table Of Contents
Characteristics ............11 Dimensions .............. 12 Power Options ............13 Getting Started ............14 Prerequisites for Getting Started....... 14 Activating the Smart-Vue Pro Duo/Quatro Data Logger for LoRaWAN........14 Installing the Smart-Vue Pro Duo/Quatro Data Logger..............16 Optimizing Wireless Performance ......16 Preparing the Mounting Kit........ - Page 4 Alarm Actions............38 Maintaining your Data Loggers........41 Replacing Batteries ..........41 Cleaning Instructions ..........42 Appendix 1 – Smart-Vue Pro Duo/Quatro Battery Life.. 43 Estimated Battery Life ..........43 Appendix 2 - Troubleshooting ........44 WEEE Compliance............45 Contact Information ............. 48...
-
Page 5: Safety Notices
If the device shows signs of leakage. Use only batteries recommended by improper operation, disconnect it immediately from its power Thermo Scientific. Do not use a different type of source or remove the battery and contact Thermo Scientific battery such as rechargeable, alkaline and technical services. -
Page 6: Device Maintenance
CAUTION: Using accessories, such as antennas, that Thermofisher has not authorized or that are not compliant with Thermofisher accessory specifications may invalidate the warranty. Safety Notices Smart-Vue Pro Duo / Quatro User Guide... -
Page 7: Regulatory Information
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, Smart-Vue Pro Duo / Quatro User Guide Regulatory Information |... - Page 8 Directive 2011/65/EU (Restriction of the Use of Certain Hazardous Substances in Electronic and Electrical Equipment) and the amendment of (EU) 2015/863. Do not dispose of this product with household trash. Thermo Scientific recycles this product under certain conditions. Contact us for more information. Regulatory Information...
-
Page 9: Introduction
Introduction Smart-Vue Pro Duo/Quatro is the new generation of wireless Equipment: Refers to the equipment or space (such as a data logger by Thermo Scientific. refrigerator, freezer, incubator or cold room) which monitors one or more physical parameters. This user guide presents an overview of Smart-Vue Pro... -
Page 10: Intended Use
(Smart-Vue Pro), additionally, Smart Connect permits the user The architecture is based on a “star” topology in which to push the data to the cloud. The Smart-Vue Pro Duo/Quatro wireless data loggers connect to a gateway communicating data logger and the Smart-Vue Pro Web application enables bi-directionally with a server that collects and analyzes the user to manage the entire Smart-Vue Pro solutions. - Page 11 • Internal data logger memory for upto 4,000 readings per Figure 3. Smart-Vue Pro Duo/Quatro data loggers channel (8,000 total on Smart-Vue Pro Duo; 16,000 total communicate with the Web platform on Smart-Vue Pro Quatro). either via a LoRaWAN receiver or a •...
- Page 12 Use the data logger’s touch screen to connect wirelessly to your on-premises LoRaWAN™ receiver or a public network. Login to the Smart-Vue Pro Duo/Quatro web application. The Smart-Vue Pro web application authenticates users, Set up the data logger and configure data logging configures alarm settings, programs data logging, settings such as upper and lower limit values.
-
Page 13: Hardware Overview
Side View Hardware Overview The right side of the Smart-Vue Pro Duo/Quatro data logger features a USB port to power your data logger using the 5 V Front View micro USB adapter (provided). The front of the Smart-Vue Pro Duo/Quatro data logger is comprised of two user interface elements, the touch screen LCD and the clear plastic LED status ring around the casing. -
Page 14: Package Contents
Compatible Sensor Types Optional Smart-Vue Pro Duo/Quatro data loggers supports a range of • 5 V AC/DC adapter with micro USB cable. Thermo Fisher external digital temperature sensors and • Padlock to lock the data logger onto its holder for smart-sensors. -
Page 15: Technical Specifications
Data storage: • Number of sensor channels (simultaneous data logging • Unlimited on Smart-Vue Pro web platform. sessions): Smart-Vue Pro Duo: 2 channels, Smart-Vue Pro Quatro: 4 channels. • 4,000 readings (per sensor channel) stored in internal data logger memory. -
Page 16: Dimensions
Dimensions Data Logger (in mm) Figure 9. Smart-Vue Pro Duo/Quatro data logger dimensions Mounting Kit Figure 10. Smart-Vue Pro Duo/Quatro mounting kit details 12 | Technical Specifications Smart-Vue Pro Duo / Quatro User Guide... -
Page 17: Power Options
Power Options The Smart-Vue Pro Duo/Quatro data logger can be powered by two replaceable internal batteries (3.6 V) located behind your device or by AC power using the provided 5 V DC adapter. Battery Characteristics • 2 x SAFT LS17500 batteries: Lithium thionyl chloride A-size bobbin cell. -
Page 18: Getting Started
Figure 12. Ensure battery polarity indications enabled receiver is up and running and within wireless range inside battery cavity of the Smart-Vue Pro Duo/Quatro data logger you are trying to connect or that you have access to a carrier-operated 4. Replace the battery compartment cover. - Page 19 LoRaWAN Frequency Note: If you are using your data logger with Smart-Vue Pro LoRaWAN connectivity, you After you turn on the power of the Smart-Vue Pro Duo/Quatro must use the Smart-Vue Pro web data logger, specify your geographical region to determine...
-
Page 20: Installing The Smart-Vue Pro Duo/Quatro Data Logger
Make sure the data logger is not placed on an electrical conduit or cable tray (such as those used for computer The Smart-Vue Pro Duo/Quatro data logger can be mounted network cables). easily on various surfaces. The data logger holder can be •... - Page 21 CAUTION: It is not necessary to use the security padlock when wall-mounting the data logger. 4. To remove the data logger from the holder, proceed in the reverse order. Smart-Vue Pro Duo / Quatro User Guide Installing the Smart-Vue Pro Duo/Quatro Data Logger |...
-
Page 22: Using External Sensors
Pt100 Smart-Sensors the Smart-Sensor where all sensor readings are adjusted for maximum accuracy. The following image shows a Smart-Vue Pro Duo/Quatro data • It is a simple plug and play functionality with no special logger with an external Pt100 sensor connected via the configuration or manual update required. - Page 23 Place the cable under the tank gasket utilizing the notch at the 12 o’clock position. It is recommend to install Pergamum sealant where the cable passes through the notch. Smart-Vue Pro Duo / Quatro User Guide Using External Sensors |...
-
Page 24: Digital Temperature Sensors
Figure 20. Pt100 (-200 °C to + 50 °C) for nitrogen/cryogenic tank Digital Temperature Sensors Thermo Scientific external digital sensors do not connect to data loggers via the smart-sensor interface which means calibration parameters needs to be configured manually. Note: Use the Smart-Vue Pro web application which loads the parameters onto the data logger over the network. -
Page 25: Temperature/Humidity Smart-Sensors
Placing the Sensor Figure 24. Smart-Vue Pro Duo/Quatro data logger 1. If you have a Smart-Vue Pro Duo/Quatro data logger with mounted on the refrigerator door one or more external sensors, the best solution is to use your equipment’s access port or specific opening to... - Page 26 Placing the Sensor Mount the Smart-Vue Pro Duo/Quatro data logger in the desired location using the holderprovided. Choose the attachment method that works best for your situation and place the Smart-Vue Pro Duo/Quatro data logger as described in Installing the Smart-Vue Pro Duo/Quatro Data Logger.
-
Page 27: Smart-Vue Pro Duo/Quatro User Interface
Smart-Vue Pro Duo/Quatro User Interface The Smart-Vue Pro Duo/Quatro data logger offers a highly visible color LCD screen and a simple menu system.You can easily navigate through data logging pages and menu settings using the data logger’s touch screen even while wearing protective gloves. -
Page 28: Sensor Display And Control
Simultaneous display of data logging sessions Status bar Figure 26. Smart-Vue Pro Duo/Quatro with two data logging sessions in progress Status Bar Smart-Vue Pro LoRaWAN: The Status bar across the top of Smart-Vue Pro Duo/Quatro screen includes the menu icon and shows wireless status, battery status and the data logger name. - Page 29 If any alarms are detected, the icon turns red. Battery level indicator displays the power level of the Smart-Vue Pro Duo/Quatro. Smart-Vue Pro LoRaWAN network status: Indicates wireless network status with signal strength bars (4 bars for best signal, 1 bar if signal is weak).
-
Page 30: Screen Backlight
You may check the current reading at any time without affecting stored information. When the Smart-Vue Pro Duo/Quatro is on battery power, the To perform an instant reading backlight is managed to preserve battery life. The backlight turns off after 30 seconds of inactivity following the last user 1. -
Page 31: Screen Saver
AC adapter and replace the batteries. Screen Saver The Smart-Vue Pro Duo/Quatro data logger also features a screen saver that is enabled when the device is using AC power (via the USB charger) and there are no alarms in progress. -
Page 32: Configuration Menus
Configuration Menus The Smart-Vue Pro Duo/Quatro data logger includes configuration menus to interact with the data logger and setting specific parameters. Tap the menu bars to open configuration menus. Figure 33. Accessing Smart-Vue Pro Duo/Quatro configuration menus 28 | Configuration Menus... - Page 33 LoRaWAN or bluetooth wireless communication. Features are described in the following sections: Menu structure of data logger using Smart-Vue Pro LoRaWAN Figure 34. Menu structure for Smart-Vue Pro LoRaWAN wireless operation Smart-Vue Pro Duo / Quatro User Guide Configuration Menus |...
- Page 34 The structure is the same as for Smart-Vue Pro LoRaWAN operation, but some options that are not available in bluetooth mode are grayed out. Figure 35. Menu structure for Bluetooth wireless operation 30 | Configuration Menus Smart-Vue Pro Duo / Quatro User Guide...
-
Page 35: Settings
4. Tap the menu icon ( ) to return to the home screen. Settings Language. Figure 37. Choosing display language 2. Tap the up/down arrows ( ) to select the display language. Smart-Vue Pro Duo / Quatro User Guide Configuration Menus |... -
Page 36: Sensors
Pro LoRaWAN wireless frequency and remaining battery capacity can be found in the information screen. This information is useful in case you need technical support and are asked to provide specific details. 32 | Configuration Menus Smart-Vue Pro Duo / Quatro User Guide... - Page 37 5. Progress bar shows how long the screen will be shown before displaying the next sensor. With your Smart-Vue Pro Duo/Quatro data logger, you may directly swap wired sensors that are physically connected to 6. Counter shows total number of sensors and current your data logger, such as recalibration or to replace damaged sensor.
-
Page 38: Advanced Menu
Advanced menu is protected by a personal access code and recommended for qualified It is imperative to replace Smart-Vue Pro Duo/Quatro data personnel only. Enter your PIN code and tap OK to continue. logger batteries when the battery indicator is down to one Contact your system administrator if you do not know your bar, before data logging becomes unreliable. - Page 39 You may use the range test feature in the Advanced menu to secure web services. Data loggers communicate with the ensure that your Smart-Vue Pro Duo/Quatro data loggers are receiver to exchange data with the Smart-Vue Pro web within wireless range of the configured Smart-Vue Pro application and services.
-
Page 40: Quick Server Connection Test
This information can help you troubleshoot data logger Quick Server Connection problems. If the test fails, it indicates that the outside network cannot be reached from either your Smart-Vue Pro Duo/ Test Quatro data logger or your local Smart-Vue Pro LoRaWAN receiver. -
Page 41: Using The Data Logger In Bluetooth-Only Mode
3. Tap the menu icon ( ) to return to the home screen. Using the Data Logger in Bluetooth-only Mode The Smart-Vue Pro Duo/Quatro data logger may be used in “Bluetooth-only” mode, that is, without any LoRaWAN functionality. The data logger can be accessed using the Smart Connect mobile application for smart-phones and tablets. -
Page 42: Alarm Management
When the sensor value returns to its normal range or when detected by your system. the user has manually acknowledged the alarm, the Smart-Vue Pro Duo/Quatro is displayed with its default When your system detects an alarm, whether a limit alarm or background theme. -
Page 43: Alarm Actions
Acknowledging an Alarm Snoozing an Alarm When an alarm is in progress the Smart-Vue Pro Duo/Quatro data logger remains in an alarm state as long as the alarm conditions are present. If an alarm condition is encountered and the buzzer is... - Page 44 1. Tap the Acknowledge button (1). In that case, if a reading on your Smart-Vue Pro Duo/Quatro data logger goes over a programmed limit value, a stopwatch (1) is displayed in the upper left-hand corner to indicate that the data logger is in a “pre-alarm”...
-
Page 45: Maintaining Your Data Loggers
Maintaining your Data Loggers Replacing Batteries The Smart-Vue Pro Duo/Quatro data logger runs on batteries and/or AC power (via an adapter plugged into the USB port). Batteries are not installed prior to delivery. CAUTION: Data in data logger memory is lost if you remove both batteries. -
Page 46: Cleaning Instructions
2. Do not use any aggressive cleaning agents or scratching cleansers that might damage your data logger. 3. Do not submerse the data logger in any liquid, as the casing is not waterproof. 42 | Maintaining your Data Loggers Smart-Vue Pro Duo / Quatro User Guide... -
Page 47: Appendix 1 - Smart-Vue Pro Duo/Quatro Battery Life
3. Screen backlight: The backlight is activated each time you press the Smart-Vue Pro Duo/Quatro screen but also when the data logger enters into an alarm condition. Extended use of the screen backlight reduces battery life considerably when the data logger is running on battery power. -
Page 48: Appendix 2 - Troubleshooting
If you modify data logging settings in Smart-Vue Pro, the values on the Smart-Vue Pro Duo/Quatro screen will be updated when the next reading interval occurs. Wait for the next transfer interval to get your data updated. -
Page 49: Weee Compliance
Ulteriori informazioni sulla conformità di Thermo Fisher Scientific con queste Direttive, l’elenco delle ditte di riciclaggio nel Vostro paese e informazioni sui prodotti Thermo Scientific che possono essere utili alla rilevazione di sostanze soggette alla Direttiva RoHS sono disponibili sul sito www.thermofisher.com in Servizi e Supporto. -
Page 50: Contact Information
Contact Information Thermo Fisher Scientific products are backed by a global technical support team ready to support your applications. We offer cold storage accessories, including remote alarms, temperature recorders, and validation services. Visit www.thermofisher.com or call: Countries Sales Services North America +1 866 984 3766 (800) 438-4851 India...
