USER GUIDE
COMe Ref. Carrier-i T6 TMI
Doc. User Guide Rev. 1.4
Doc. ID: 1059 4224
www.kontron.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COMe Ref. Carrier-I T6 TMIP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kontron COMe Ref. Carrier-I T6 TMIP

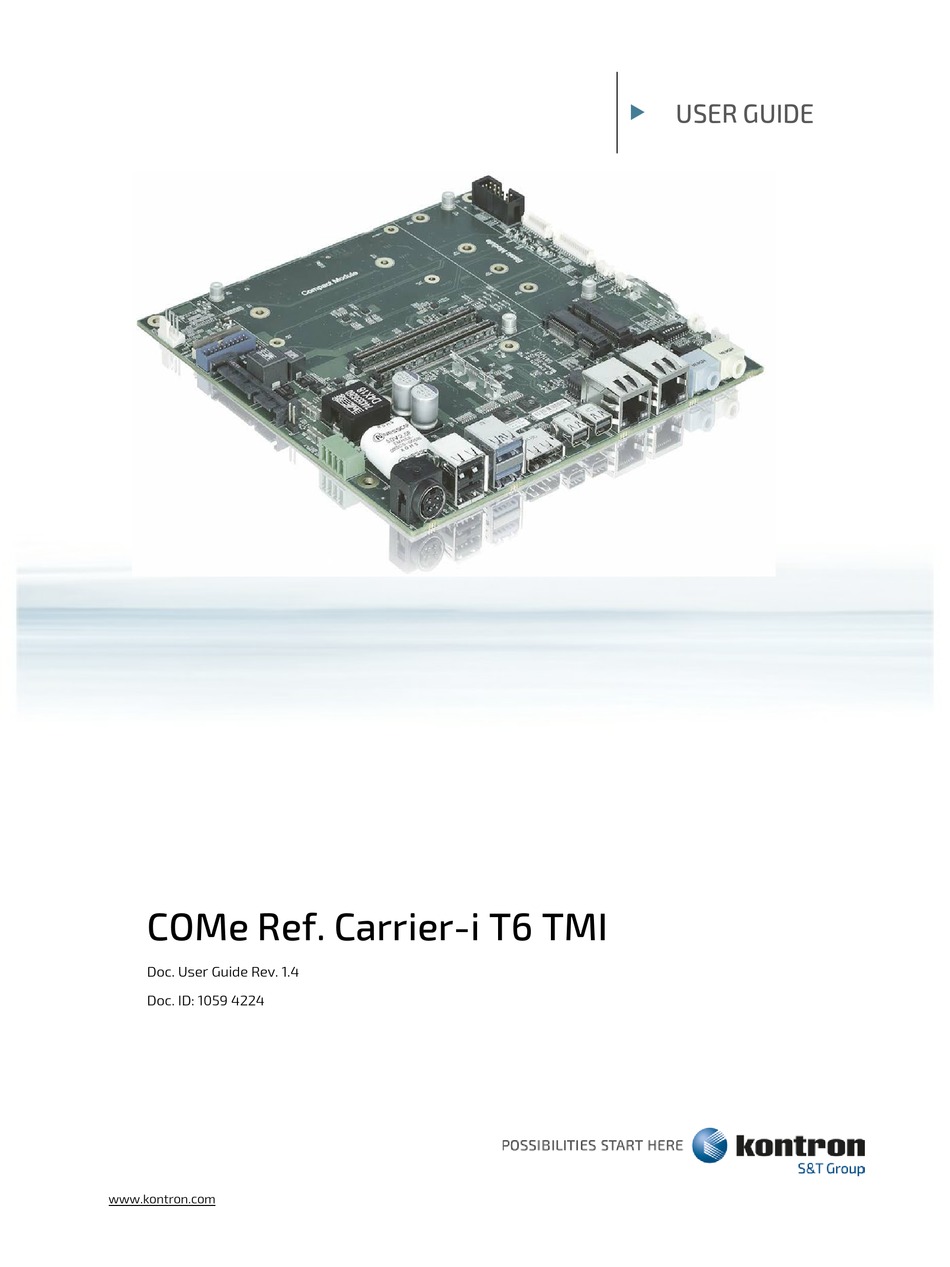

  • Page 1  USER GUIDE COMe Ref. Carrier-i T6 TMI Doc. User Guide Rev. 1.4 Doc. ID: 1059 4224 www.kontron.com...
  • Page 2 COMe Ref. Carrier-i T6 TMI - User Guide Rev. 1.4 This page has been intentionally left blank www.kontron.com // 2...
  • Page 3 In cases of doubt, please contact Kontron. This user guide is protected by copyright. All rights are reserved by Kontron. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), without the express written permission of Kontron.
  • Page 4 ENVIRONMENTAL DAMAGE (COLLECTIVELY, "HIGH RISK APPLICATIONS"). You understand and agree that your use of Kontron devices as a component in High Risk Applications is entirely at your risk. To minimize the risks associated with your products and applications, you should provide adequate design and operating safeguards.
  • Page 5 If you have any difficulties using this user guide, discover an error, or just want to provide some feedback, contact Kontron support. Detail any errors you find. We will correct the errors or problems as soon as possible and post the revised user guide on our website.
  • Page 6: Symbols

    Eye protection per manufacturer notice shall review before servicing. This symbol indicates general information about the product and the user guide. This symbol also indicates detail information about the specific product configuration. This symbol precedes helpful hints and tips for daily use. www.kontron.com // 6...
  • Page 7: For Your Safety

    Therefore, in the interest of your own safety and of the correct operation of your new Kontron product, you are requested to conform with the following guidelines.
  • Page 8: Lithium Battery Precautions

    General Instructions on Usage In order to maintain Kontron’s product warranty, this product must not be altered or modified in any way. Changes or modifications to the product, that are not explicitly approved by Kontron and described in this user guide or received from Kontron Support as a special handling instruction, will void your warranty.
  • Page 9: Table Of Contents

    2.3.8. UART Interfaces ....................................27 2.3.9. GPIO Interfaces ..................................... 27 2.3.10. SIM Interface ......................................28 2.3.11. SYS_Signals / Embedded Interfaces ............................28 2.3.12. CPU Fan Interface ....................................29 2.3.13. Front Panel Interface ..................................29 2.3.14. DIP Switch ......................................30 www.kontron.com // 9...
  • Page 10: List Of Tables

    Figure 1: COMe Ref. Carrier-i T6 TMIP Functional Block Diagram ....................12 Figure 2: COMe Ref. Carrier-i T6 TMIP Rear Panel ..........................13 Figure 3: COMe Ref. Carrier-i T6 TMIP Layout - Top View ........................14 Figure 4: COMe Ref. Carrier-i T6 TMIP Layout - Bottom View ......................15 www.kontron.com...
  • Page 11: 1/ Introduction

    Type 6 COM Express® Computer-on-Module compliant with the PICMG COM.0 specification Rev 2.1. COMe Ref. Carrier-i T6 TMIP refers to the COMe Reference Carrier-i Type 6 Thin-MiniITX Professional (P/N 38115-0000-00-0). The following table lists the COMe Ref. Carrier-i T6 TMIP features.
  • Page 12: Board Diagrams

    COMe Ref. Carrier-i T6 TMI - User Guide Rev. 1.4 1.2. Board Diagrams The following diagrams provide additional information concerning board functionality and component layout. 1.2.1. Functional Block Diagram Figure 1: COMe Ref. Carrier-i T6 TMIP Functional Block Diagram www.kontron.com // 12...
  • Page 13: Rear Panel

    COMe Ref. Carrier-i T6 TMI - User Guide Rev. 1.4 1.2.2. Rear Panel Figure 2: COMe Ref. Carrier-i T6 TMIP Rear Panel Voltage Input USB 2.0 USB 3.0/2.0 Audio Line-in Audio Line-out www.kontron.com // 13...
  • Page 14: Board Layout

    COMe Ref. Carrier-i T6 TMI - User Guide Rev. 1.4 1.2.3. Board layout Figure 3: COMe Ref. Carrier-i T6 TMIP Layout - Top View www.kontron.com // 14...
  • Page 15: Component Overview

    COMe Ref. Carrier-i T6 TMI - User Guide Rev. 1.4 Figure 4: COMe Ref. Carrier-i T6 TMIP Layout - Bottom View 1.2.4. Component Overview Table 2: Component Overview Component Decsription Goldcap Status LED: SUS_S3 Status LED: SUS_S4 Status LED: SUS_S5 Status LED: V12_S5 Status LED: V5.0_V3.3_PGOOD...
  • Page 16 Redriver IC for SATA interfacing (SATA#1) Redriver IC for SATA interfacing (SATA#1) HD Audio Codec IDT / Tempo Semi 92HD73C Intel® Ethernet Controller I210-IT Carrier EEPROM (FRUPROM) Redriver IC for SATA interfacing (SATA#2) Redriver IC for SATA interfacing (SATA#2) www.kontron.com // 16...
  • Page 17: Technical Specification

    COMe Ref. Carrier-i T6 TMI - User Guide Rev. 1.4 1.3. Technical Specification Table 3: COMe Ref. Carrier-i T6 TMIP Main Specifications Features Specification Processor & Chipset Via COMe basic/compact Type 6 module Memory System Memory Via COMe basic/compact Type 6 module...
  • Page 18 Operational: -40°C to +85°C Storage: -40°C to +85°C Note: When additional components are installed, refer to their operational specifications as this will influence the operational and storage temperature of the COMe Ref. Carrier-i T6 TMIP Climatic Humidity 93% RH at 40 °C, non-condensing (acc. to IEC 60068-2-78) Form Factor COM Express®...
  • Page 19: Accessories

    COMe Ref. Carrier-i T6 TMI - User Guide Rev. 1.4 1.4. Accessories The following accessories are available for the COMe Ref. Carrier-i T6 TMIP. Table 4: COMe Ref. Carrier-i T6 TMIP Accessories Part Number Part Name Decsription 96006-0000-00-2 COMe Post T6...
  • Page 20: Standards

    6 directions 5 (s) recovery time Customers desiring to perform further environmental testing of the COMe Ref. Carrier-i T6 TMIP must contact Kontron for assistance prior to performing any such testing. Boards without conformal coating must not be exposed to a change of temperature that can lead to condensation, as it may cause irreversible damage especially when the board is powered up again.
  • Page 21: Releated Publications

    Display Port 1.1a Standard Display Port 1.2 Standard Universal Serial Bus (USB) 2.0 Specification Rev 2.0 Universal Serial Bus (USB) 3.0 Specification Rev 1.0 I2C Bus Specification Version 4.0 SMBus SMBus Specification Version 2.0 ACPI ACPI spec Rev 5.0 www.kontron.com // 21...
  • Page 22: 2/ Functional Description

    2.1.1. SPI Flash The COMe Ref. Carrier-i T6 TMIP provides one SPI BIOS socket, J19, for SPI flash ICs with up to 16 MB flash memory for use with an external Carrier BIOS. Depending on the COMe module used the recommended SPI flash ICs include: ...
  • Page 23: Graphics Inter Faces

    LVDS_B1- +12V If eDP support is required, the COMe Ref. Carrier-i T6 TMIP may optionally be equipped with a Mini DisplayPort++ connector, J9, instead of the LVDS/JILI connector, J8. To use the eDP interface, the COMe module installed must also support eDP.
  • Page 24: Peg Lanes

    COMe Ref. Carrier-i T6 TMI - User Guide Rev. 1.4 2.2.3. PEG Lanes The COMe Ref. Carrier-i T6 TMIP provides four PEG lanes (PEG#[0-3]) used for the M.2 socket, J34. PEG#0 is muxed with SATA#2. www.kontron.com // 24...
  • Page 25: System Interfaces

    SATA#3 via the 22-pin SATA receptacle connector, J33, through the redriver ICs, U6 and U8, for the SATA 2.5” HDD mounting. 2.3.3. M.2 Interface The COMe Ref. Carrier-i T6 TMIP provides an M.2 socket, J34, via PEG#[0-3] and SATA#2 (muxed with PEG#0), which supports 3M key pinning and 2242, 2260 and 2280 M.2 modules 2.3.4. Gigabit Ethernet Interfaces The COMe Ref.
  • Page 26: Usb 3.0

    USB3- USB3+ 2.3.7. HD Audio Interfaces The COMe Ref. Carrier-i T6 TMIP provides HD Audio via the industrial grade HD Audio Codec IDT / Tempo Semi 92HD73C (U13) through the following analog and digital audio connectors:  Rear panel line-in connector, J25 ...
  • Page 27: Uart Interfaces

    SER1_TX 2.3.9. GPIO Interfaces The COMe Ref. Carrier-i T6 TMIP provides four GPIs and four GPOs via a 10-pin GPIO pin header, J32. The following table provides pinout information for the GPIO pin header J32. Table 12: GPIO Pin Header J32 Pinout...
  • Page 28: Sim Interface

    COMe Ref. Carrier-i T6 TMI - User Guide Rev. 1.4 2.3.10. SIM Interface The COMe Ref. Carrier-i T6 TMIP provides a SIM card socket, J35, connected to both Mini PCIe interfaces, PCIe#0 and PCIe#1, to support radio-based services on Mini PCIe.
  • Page 29: Cpu Fan Interface

    COMe Ref. Carrier-i T6 TMI - User Guide Rev. 1.4 2.3.12. CPU Fan Interface The COMe Ref. Carrier-i T6 TMIP provides a 4-pin PWM fan connector, J4, directly controlled by the module fan output. The following table provides pinout information for the PWM fan connector J4.
  • Page 30: Dip Switch

    2.3.15. Power Supply and Management The COMe Ref. Carrier-i T6 TMIP supports fixed input voltage (12V only) as a standard feature via the DC jack, J6.and also supports a wide input voltage range (8.5V - 30V) by default via a wired power connector, J1. The COMe Ref.
  • Page 31: Rtc

     TE Connectivity AMP Connectors, Part Numbers: 284506-4 / 1986692-4 / 1986693-4 2.3.16. RTC The COMe Ref. Carrier-i T6 TMIP provides a 2-pin connector, J36, for an external CMOS battery and provides a 2.5F goldcap, (C35), for RTC backup. www.kontron.com...
  • Page 32: 3/ Technical Support

    RMA number. The buyer accepts responsibility for all freight charges for the return of goods to Kontron's designated facility. Kontron will pay the return freight charges back to the buyer's location in the event that the equipment is repaired or replaced within the stipulated warranty period. Follow these steps before returning any product to Kontron.
  • Page 33: 4/ Warranty

    4.1. Limitation/Exemption from Warranty Obligation In general, Kontron shall not be required to honor the warranty, even during the warranty period, and shall be exempted from the statutory accident liability obligations in the event of damage caused to the product due to failure to observe the following: ...
  • Page 34: Appendix: List Of Acronyms

    Equipement ( directive) IPMI Intelligent Platform Management Interface Industry Standard Architecture Local Area Network Low Pin-Count Interface: LVDS Low Voltage Differential Signaling Multi Level Cell MTBF Mean Time Before Failure Not Available Not Connected Negative Temperature Coefficient Operating System www.kontron.com // 34...
  • Page 35: About Kontron

    COMe Ref. Carrier-i T6 TMI – User Guide Rev. 1.4 About Kontron Kontron is a global leader in IoT/Embedded Computing Technology (ECT). As a part of technology group S&T, Kontron, together with its sister company S&T Technologies, offers a combined portfolio of secure hardware, middleware and services for Internet of Things (IoT) and Industry 4.0 applications.
