Summary of Contents for UNIS Ultra Moto VR

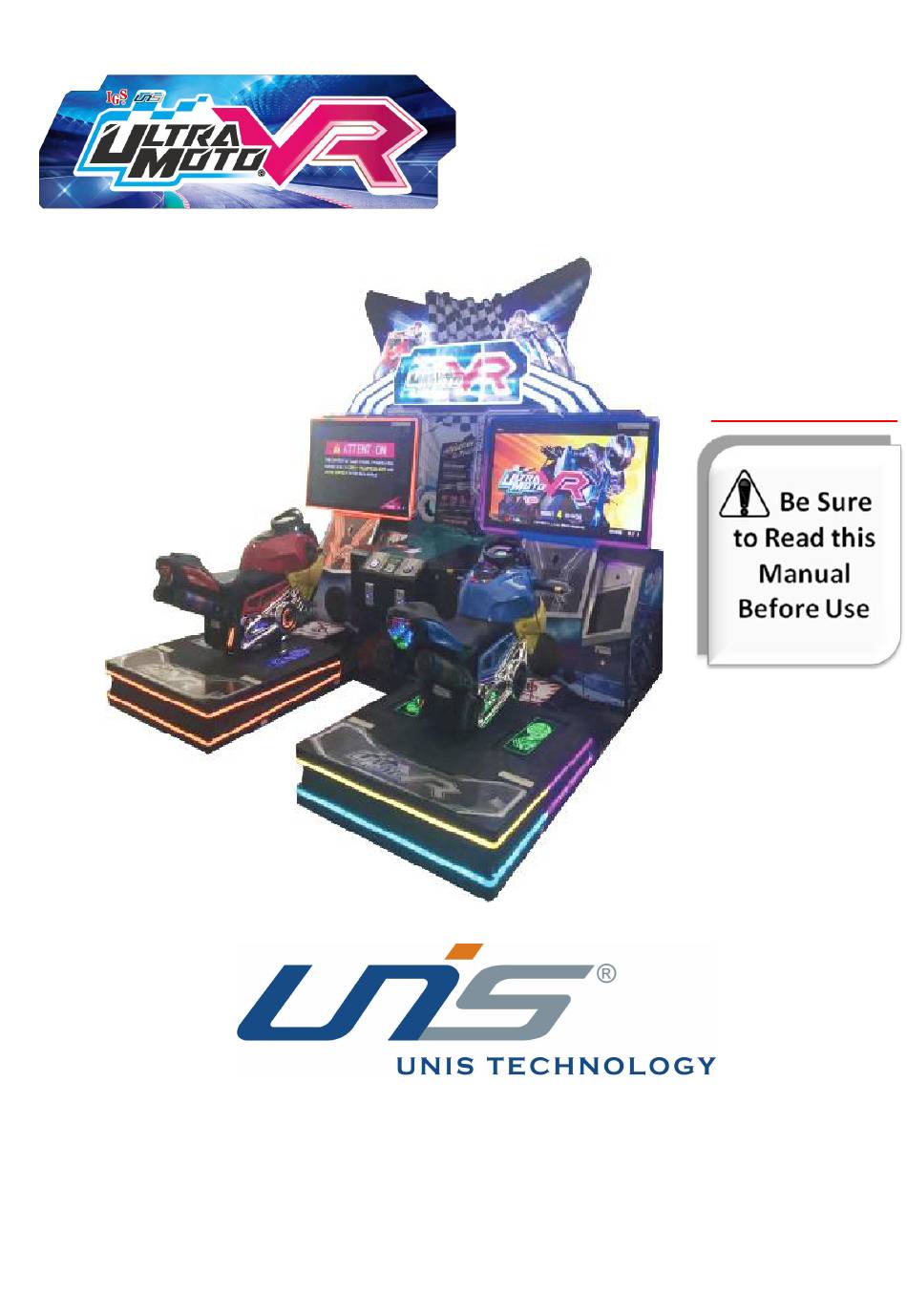

  • Page 1 IMPORTANT Operation Manual...
  • Page 2 Ultra Moto VR Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com When contacting Service, you will need the following information and the name of your authorized distributor.

  • Page 3: Table Of Contents

    Ultra Moto VR Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ............... 3 1. SPECIFICATIONS ....................5 2. CONTENTS OF THE ACCESSORY KIT ..............8 3. PART NAME ......................9 4. SET UP & INSTALLATION ..................10 5. HOW TO PLAY ...................... 19 6.

  • Page 4: Important Safety Instructions

    Ultra Moto VR Manual Thank you for purchasing Ultra Moto VR. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Ultra Moto VR Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 6: Specifications

    Ultra Moto VR Manual 1. SPECIFICATIONS Rated power supply: AC110V~ 50/60Hz; AC220V-240V~ 50/60Hz Min. Power consumption: 800W Max. Power consumption: 2300W Dimension: W104.56×D84.72×H93.78 in W2656 ×D2152 ×H2367 mm Weight：Approximately 2204 lb/1000 kg Part No: U110 Model No: V-017 NOTICE: After turning off the game, please wait at least 1 minute before restarting again.
  • Page 7 Ultra Moto VR Manual This machine will be divided into four parts during transportation. L Monitor Assembly: W42.63×D24.73×H60.86in W1083 ×D629 ×H1546 mm 42.63in 24.73in R Monitor Assembly: W42.63×D24.73×H60.86in W1083 ×D629 ×H1546 mm 42.63in 24.73in 03/03/2020...
  • Page 8 Ultra Moto VR Manual Moto Assembly: W39.52×D61.10×H40.18in W1004 ×D1552 ×H1019mm 61.10in 39.52in Middle Cabinet: W23.89×D42.55×H32.16 in W607 ×D1081 ×H817mm 23.89in 42.55in Note: Game specifications are subject to change without notice. 03/03/2020...

  • Page 9: Contents Of The Accessory Kit

    Ultra Moto VR Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: Following accessories Part No. Code Name SPEC Picture U110-801-000 25300171002 U110-802-000 25300172002 171B U110-803-000 41440000288B Manual SJT 3x14AWG U110-804-000...

  • Page 10: Part Name

    Ultra Moto VR Manual 3. PART NAME Key Components Marquee Assembly Monitor Button Headset Moto Coin mechanism 03/03/2020...

  • Page 11: Set Up & Installation

    Ultra Moto VR Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid.
  • Page 12 Ultra Moto VR Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 20 in/500mm Service area Play area NOTICE Your unit must be leveled to operate properly.
  • Page 13 Ultra Moto VR Manual 4.4 Machine Installation Before processing with assembly assure you have the following tools. Name Picture Phillips screwdriver Spanner Allen wrench Step 1 Remove Pedal sensor covers. Utilize Phillips screwdriver to loosen the screws on the Pedal sensor cover, take Pedal sensor cover off and keep it.
  • Page 14 Ultra Moto VR Manual Step 3 Install Monitor side plastic and Pedal sensor covers. Kit list: Name/Spec. Picture Hexagon flat round head screw 7×2 M4×20 stainless steel Utilize Allen wrench to tighten 7 screws (M4×20) to secure 2 Monitor side plastics to the right monitor.
  • Page 15 Ultra Moto VR Manual Step 4 Connect Main cabinets with Middle cabinet. Kit list: Name/Spec. Picture Qty Cross recessed hexagon screw set M8×20 black Step 4-1 Utilize Phillips screwdriver to tighten 4 screws (M8×20) on the mounting metal plates indicated by circles to secure Main Cabinets to Middle Cabinet.
  • Page 16 Ultra Moto VR Manual Step 5 Connect blue tubes to valves. Connect 4 blue tubes on both sides indicated tightly as shown below. Note: The size of 2 valves is different. The outer valve is larger. Please insert the thick tube to the larger valve.
  • Page 17 Ultra Moto VR Manual Step 6-3 Open front door on the Main cabinet right side. Route the headset cable into the Main cabinet through the hole. Locate the back box. Connect cables to the PC as shown below. Note: It is the same installation method on the other Moto assembly Step 7 Install Middle plastic and Router.
  • Page 18 Ultra Moto VR Manual Step 8 Install Marquee assembly. Kit list: Name/Spec. Picture Cross recessed hexagon screw set M6×30 black Flange nut Step 8-1 L Marquee: Marquee installation should be moved to the right. Step 8-2 R Marquee: Marquee installation should be moved to the left.
  • Page 19 Ultra Moto VR Manual Step 8-5 Place POP plate on the POP bracket. Utilize Spanner to tighten 6 flange nuts on the POP plate. POP plate Step 9 Install DBV box to Middle cabinet (As customer’s requirement). Kit list: Name/Spec.

  • Page 20: How To Play

    Ultra Moto VR Manual 5. HOW TO PLAY 5.1 Insert coins to play. Put the headset on. Turn the headset and move to the desired option. 5.2 Hold the throttle to begin. Lean to the left or right to make the moto turn.

  • Page 21: Game Option

    Ultra Moto VR Manual 6. GAME OPTION 6.1 Adjustment button instruction Coin Open the coin door and there is a meter panel. Press Test button to enter the setting menu. Sound Test Service Down Select Mode Non-VR 6.2 Setting menu 6.2.1 Main menu...
  • Page 22 Ultra Moto VR Manual 6.2.3 I/O Test I/O Test Coin 0 VR Version/Arcade Version Test Service Coin Box Up Coin Box Down Calibrate View Button Emergency Stop Button Start Left Headset Sensor Left Headset Sensor Left Foot panel Seat Right Foot panel Throttle 0.000...
  • Page 23 Ultra Moto VR Manual 6.2.6 Lamp Test Moto Side Light Auto Test Brake Light Screen Side Light Tail Light Acrylic Light Foot Panel Light Calibrate View Button Upper Platform Lights Start Lower Platform Lights Emergency Back 6.2.7 Connection Test 6.2.8 Counter Test...
  • Page 24 Ultra Moto VR Manual 6.2.12 Drain Value Test 6.2.13 Jets Test Drain Value Test Testing... Jets Left Test Testing... Back Jets Right Test Testing... Back 6.2.14 Electric Jack Test Electric Jack Test ...Discharge Air spring Back 6.2.15 System Settings 6.2.16 Time Settings...
  • Page 25 Ultra Moto VR Manual 6.2.20 VR Headset Environment Calibration (VR Only) Turn the headset to the Left and Right until the calibration is complete. After the calibration is complete, the option to [Reboot] will appear. This setting will only take effect after restarting the machine. If [Re-Calibration] is selected, the calibration...

  • Page 26: Troubleshooting

    Ultra Moto VR Manual 7. TROUBLESHOOTING 7.1 Common Problem Please confirm that all connectors fit tightly. Symptom Possible Cause Recommended action Frame assembly connector Check connector. Game will not start is loose. Frame assembly fault Contact with UNIS Service. Turn on power SW again. If appeared...
  • Page 27 Ultra Moto VR Manual 7.2 Troubleshooting Troubleshooting Possible Cause Influence Recommended action 1. Motion 1. Check and reconnect the platform will not loose cable on the middle move cabinet Air compressor AC IS OFF 2.Motion platform 2. If no jet sound is heard power supply is off calibration fail.
  • Page 28 Ultra Moto VR Manual Troubleshooting Possible Cause Influence Recommended action Coin mechanism, 1.Check whether I/O 2-1 Cannot identify I/O monitor lighting, board is faulty. I/O2-1 ERROR 2-1 board signal air compressor 2.Check whether fuse board and fan will faulty. is faulty.
  • Page 29 Ultra Moto VR Manual 7.3.2 Error Code: HT 01, KL 01 Step 1 Please check whether the Dongle is loose or Dongle light is on. Step 2 If Dongle light is off, please check whether Cable 2, 4 ,5 is loose.
  • Page 30 2.2060S adapter can not be supported video card. before this version. 1.Hide the WMR calibration window. 2.Update Jack mechanism function. Store name can not call ”UNIS” before this M104CN 3.Store name can call “UNIS”. version. 4.Fixed helmet detection fail problem. Fixed headset black screen M105CN problem.
  • Page 31 Ultra Moto VR Manual 7.5 System Recovery Operation (NOTE: Do not disconnect power during this process.) 1. Turn off the game. Remove the recovery stick from the machine. (Note: This process may take up to 60 minutes) Insert the recovery stick into the port at the back of the computer.

  • Page 32: Maintenance & Inspection

    Ultra Moto VR Manual 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition.
  • Page 33 Ultra Moto VR Manual 8.4 Speaker Replacement Instruction Step 1 Utilize Phillips screwdriver to loosen the Speaker cover screws to remover Speaker cover. Speaker Cover Step 2 Utilize Phillips screwdriver to loosen the Speaker screws to remover Speaker. Replace with new Speaker and install it in reverse order.
  • Page 34 Ultra Moto VR Manual Step 2 Utilize Phillips screwdriver to loosen Frame screws to remove Monitor assembly. Screw Step 3 Utilize Phillips screwdriver to loosen Monitor pressing plate screws to remove Monitor pressing plate and Glass. Glass Monitor pressing plate Step 4 Place Monitor downside.
  • Page 35 Ultra Moto VR Manual 8.6 Pedal Sensor Replacement Instruction Step 1 Loosen Pedal sensor cover screws and remove Pedal sensor cover. Pedal sensor cover Step 2 Loosen Pedal sensor assembly screws and remove Pedal sensor assembly. Pedal sensor assembly Step 3 Loosen Pedal fixing screws and remove Light strip.
  • Page 36 Ultra Moto VR Manual 8.7 Software Installation Instruction Step 1 Install File decompressing software. Step 2 Download these Files and Zip file in Baiduyun. Step 3 Decompressing 5 files by using 7z. Decompress Enter password:igs2020 03/03/2020...
  • Page 37 Ultra Moto VR Manual Step 4 Install Hard disk to the PC. Right click“My computer”→ Left click” Manage”. My computer Manage Step 5 Click”Disk management ” → Delete two partitions. Delete 03/03/2020...
  • Page 38 Ultra Moto VR Manual Step 6 Right click“SelfImage”→ “Run as administrator” →”File” Run as administrator Step 7 Select document and open. Open 03/03/2020...
  • Page 39 Ultra Moto VR Manual Step 8 Select”Decompress Source”→”Drive”→”\Device\Harddisk2(entire disk)”→”Start”. Note:memory is 59+G. Step 9 Press “Yes”. wait the Status to 100% and close. 03/03/2020...
  • Page 40 Ultra Moto VR Manual 8.8 Motor of Jack Mechanism Replacement Instruction Note: Pictures are for reference only. Step 1 Power off the game. Utilize Phillips screwdriver to loosen 3 screws to remove Skirt fixing plate. Moto Skirt Skirt fixing plate Screw Step 2 Open the Skirt and Jack mechanism will show.
  • Page 41 Ultra Moto VR Manual Step 4 Utilize Socket wrench to loosen 4 screws on the Motor fixing plate to remove Motor assembly. Jack mechanism Jack mechanism Screw Motor assembly Step 5 Utilize Allen wrench to loosen tapping screw to remove Rotation shaft.
  • Page 42 Ultra Moto VR Manual 8.9 Air Compressor Pressure Control Valve Replacement Instruction Step 1 Power off the game. Eliminate all the gas in the Air compressor. Utilize Phillips screwdriver to loosen the screw to remove Top cover. Screw Top cover Step 2 Utilize Phillips screwdriver to loosen 3 screws to remove Wirings.
  • Page 43 Ultra Moto VR Manual 8.10 PC Power Supply Replacement Instruction(Headset Calibration Fail Many Times) Step 1 Utilize Phillips screwdriver to loosen screws on the PC side board and Remove PC side board. Step 2 Unplug all the connectors as shown below.
  • Page 44 Ultra Moto VR Manual Step 3 Utilize Phillips screwdriver to loosen screws and remove Power supply. Step 4 Locate the new Power supply. Plug Connector to the PC Power supply. Connector 1 Power 03/03/2020...
  • Page 45 Ultra Moto VR Manual 8.12 VR Headset Replacement Instruction Note: We recommend to choose HP VR Headset to replace. (Model Number:VR1000-121cn) Step 1 Open the back door. Locate the PC. Unplug 2 cables indicated by circle. Open front door on the right side of the Main cabinet . Remove the Headset cable.
  • Page 46 If the game version number is M101FA, please contact the dealer to replace the hard disk. Please contact with UNIS Service to replace Hard disk to update. Step 4 Software update progress can be seen in the Setting menu - System reset - Update progress.
  • Page 47 Ultra Moto VR Manual 8.13 Linking Connection Instruction The cabinets to be connected must have the same group number and different ID value in order to be connected. Up to 4 cabinets can be connected at the same time.If there are four cabinets, it is recommended to set the ID number to 1P, 2P, 3P, 4P.
  • Page 48 Ultra Moto VR Manual 8.14 VR Headset Calibration Instruction. Headset Calibration Video: https://www.bilibili.com/video/av74866503 Before power on the machine, please place the VR Headset on the Headset storage. Headset storage Headset Note: 1.The Headset camera cannot be blocked. 2.The surrounding light should not be too dark or too bright. Otherwise the calibration will fail.
  • Page 49 Ultra Moto VR Manual 8.14.2 Headset Calibration Instruction (In Game Time) Step 1 Pick up the Headset from the Headset storage, and wait for 3 seconds. Headset Step 2 Place the Headset back on the Headset storage, and wait for the Calibration window to appear.
  • Page 50 Ultra Moto VR Manual 8.14.3 Headset Environment Calibration Instruction  Please perform VR Headset Environment Calibration for the following 5 situations: 1. Machine first setting. 2. The machine is moved. 3. Update Game version. 4. Hard disk is replaced. 5. Headset calibration(In Game Time) fail many times.
  • Page 51 Ultra Moto VR Manual 8.14.4 Headset Instruction (VR Detection Error/Headset has no image) Step 1 Turn off the machine, and replug the VR Headset 2 cables as circle indicated. Restart the machine. If the Headset still fail, exchange the other machine headset and check. If the other Step 2 machine headset still fail, please replace the hard disk.
  • Page 52 Ultra Moto VR Manual 8.15.1 Motion Platform Calibration Instruction Note: Utilize left and right brakes to choose and press the Start button to enter and set. Step 1 Go to [Main Menu] → [System Settings] → [Air Spring Adjustment]. Step 2 Select [Adjustment] to begin the adjustment.
  • Page 53 Ultra Moto VR Manual 8.16 Foot Panel Pressure Sensor Adjustment Instruction Caution: Do not stand on the Motion platform Note: Utilize left and right brakes to choose and press the Start button to enter and set. Step 1 Go to [Main Menu] → [System Settings] → [Pressure Calibration Adjustment].

  • Page 54: Overall Construction

    Ultra Moto VR Manual 9. OVERALL CONSTRUCTION 9.1 General Assembly Part No. Code No. name 1 U110-917-000 20241801022 Connective plate 2 U110-916-000 20241801021 Central connective plate 2 9.2 Monitor Assembly Part No. Code No. name 1 U110-112-000 20641801055 Glass 1×2 2 U110-111-000 20241801028 Monitor pressing plate 1×2...
  • Page 55 Ultra Moto VR Manual 9.3 Marquee Assembly Part No. Code No. name U110-701-000 20541801A001 Marquee plastic U110-152-000 20641801067 Marquee L plastic U110-151-000 20641801066 Marquee upper plastic 1 U110-149-000 20641801064 Marquee light plate U110-145-000 20641801061 L light plate U110-142-001 20241801224A L light cover...
  • Page 56 Ultra Moto VR Manual 9.4 1P Bottom Cabinet Part No. Code No. Name U110-521-000 20341801B022 Door board U110-403-000 25300171001 Lock 2 U110-501-000 20341801B011 Front board 3 U110-507-000 20341801B016 Blower fixing board 4 U110-402-000 25102000098 Handle 5 U110-502-000 20341801B012 1P L side board...
  • Page 57 Ultra Moto VR Manual Part No. Code No. Name 23 U110-509-000 20341801B003 Speaker support board 24 U110-503-000 20341801B013 1P R side board 25 U110-103-000 20241801024 Side connective plate 26 U110-104-000 20241801025 Base strengthen plate U110-105-000 20241801026 Adjust metal plate U110-106-000 20251301035...
  • Page 58 Ultra Moto VR Manual 9.6 2P Bottom Cabinet Part No. Code No. Name U110-521-000 20341801B022 Door board U110-403-000 25300171001 Lock U110-501-000 20341801B011 Front board U110-507-000 20341801B016 Blower fixing board U110-402-000 25102000098 Handle U110-530-000 20341801B030 2P L side board U110-520-000 20341801034...
  • Page 59 Ultra Moto VR Manual Part No. Code No. Name U110-509-000 20341801B003 Speaker support board U110-531-000 20341801B031 2P R side board U110-103-000 20241801024 Side connective plate U110-104-000 20241801025 Base strengthen plate U110-105-000 20241801026 Adjust metal plate U110-106-000 20251301035 3'' leveller U110-401-000...
  • Page 60 Ultra Moto VR Manual 9.8 L Cabinet Part No. Code No. Name 1 U110-408-000 25101030080 3 Port connector 2 U110-407-000 25106020194 8mm pipe 1500mm(59.05in) 3 U110-136-000 20641801054 Protective angle Part No. Code No. Name 1 U110-134-000 20241801036 1P Decoration plate(horizontal) 1...
  • Page 61 Ultra Moto VR Manual Part No. Code No. Name U110-717-000 20541801001 Blower decal U110-130-000 20641801047 Blower acrylic 15 U110-132-000 20241801034 L side plate 16 U110-718-000 20541801002 L jet decal 17 U110-125-000 20241801219 Blower net plate Part No. Code No. Name...
  • Page 62 Ultra Moto VR Manual 9.9 R Cabinet Part No. Code No. Name 1 U110-408-000 25101030080 3 Port connector 2 U110-407-000 25106020194 8mm pipe 1500mm(59.05in) 3 U110-136-000 20641801054 Protective angle Part No. Code No. Name 1 U110-139-000 20241801039 2P Decoration plate(horizontal) 1...
  • Page 63 Ultra Moto VR Manual Part No. Code No. Name 12 U110-124-000 20241801031 Middle cabinet frame 1 13 U110-120-000 20241801029A L speaker plate U110-717-000 20541801001 Blower decal U110-130-000 20641801047 Blower acrylic 15 U110-132-000 20241801034 L side plate 16 U110-718-000 20541801002 L jet decal...
  • Page 64 Ultra Moto VR Manual 9.10 Air Compressor Cabinet Part No. Code No. Name 1 U110-702-001 20541801B006 Player Instruction plate 2 U110-154-000 20241801228 POP support plate 3 U110-159-002 20241801B001B Cabinet box 4 U110-178-001 20241801072A Setting plate 5 U110-160-001 20241801167A Coin hopper...
  • Page 65 Ultra Moto VR Manual Part No. Code No. Name 1 U110-534-000 20341801B033 Circuit board 2 U110-176-000 20641801041 Dust-free cover 3 U110-163-000 20241801173 Fan fixing plate 4 U110-162-000 20241801172 Blower limited plate 5 U110-533-000 20341801B010 Blower side board 6 U110-184-000 20211605043...
  • Page 66 Ultra Moto VR Manual Part No. Code No. Name 1 U110-536-000 25101034008 T-connector(12mm) 2 U110-423-000 25106020196 PU pipe 1860mm(73.22in) 3 U110-415-000 25101130074 Filter regulator 4 U110-419-000 25101113012 Connector(12mm pipe) 5 U110-170-000 20241801174 Filter plate(L) 6 U110-413-000 25101110058 12mm pipe 7 U110-416-000 25101130075...
  • Page 67 Ultra Moto VR Manual 9.12 Air Compressor Part No. Code No. Name 1 U110-165-001 20241801065A Blower fixing plate 2 U110-166-000 20241801066 Blower locking plate 3 U110-167-000 20241801067 Blower pressing plate U110-451-001 40611010199 Air compressor(For 220V) 1 U110-452-001 40611010200 Air compressor(For 110V) 1...
  • Page 68 Ultra Moto VR Manual 9.14 R Pedal Assembly Pedal sensor Part No. Code No. Name 1 U110-725-000 20541801010 Pedal plastic R 1×2 2 U110-218-000 20641801048 Pedal acrylic 1×2 3 U110-217-000 20641801035 Pedal POM 2×2 4 U110-216-000 20641801059 Pedal PVC 2×2 5 U110-215-000 20241801015 Sensor support plate 1×2...
  • Page 69 Ultra Moto VR Manual 9.16 Base Plate Assembly Part No. Code No. Name 1 U110-198-000 20241801180 Sensor plate 2 1×2 2 U110-196-000 20641801042 Sensor pin 2×2 3 U110-433-000 25101211001 Spring 2×2 4 U110-201-000 20641801033 Limited mat 2×2 5 U110-203-000 20241801091 Universal coupling base plate 1×2...
  • Page 70 Ultra Moto VR Manual Part No. Code No. Name 1 U110-423-000 25106020196 PU pipe 1000mm×2(39.37in×2) 2 U110-429-000 25101113017 12mm pipe(1/4) 1×2 U110-428-000 25101123009 One-way valve 1×2 U110-194-000 20241801178 One-way valve fixing plate 1×2 4 U110-418-000 25101034006 T type 3 port 1×2...
  • Page 71 Ultra Moto VR Manual 9.18 DBV Box Part No. Code No. Name U110-185-002 20241801B007B L DBV box 1 U110-186-002 20241801B008B R DBV box 1 2 U110-189-000 20241801B012 R hanger 2 3 U110-188-002 20241801B010B DBV hinge 2 4 U110-187-002 20241801B009B DBV door 2...
  • Page 72 Ultra Moto VR Manual 9.20 Red Moto Part No. Code No. Name 1 U110-297-000 20641801018 L front side cover 1 2 U110-907-000 20241801130 L side tube 3 U110-729-000 20541801014 L1 tube decal 4 U110-730-000 20541801015 L2 tube decal 5 U110-731-000 20541801016...
  • Page 73 Ultra Moto VR Manual 9.21 Blue Moto Part No. Code No. Name U110-297-000 20641801018 L front side cover U110-914-000 20241801132 L side tube U110-729-000 20541801014 L1 tube decal U110-730-000 20541801015 L2 tube decal U110-731-000 20541801016 L3 tube decal U110-299-000 20641801020...
  • Page 74 Ultra Moto VR Manual 9.22 Red Moto Gas Cover Assembly Part No. Code No. Name U110-267-000 20641801052 Sensor cover U110-264-000 20641801017 Gas cover U110-265-000 20241801193 Connective plate U110-266-000 20241801194 SW pressing plate U110-268-000 20241801195 STOP button plate U110-269-000 20641801036 Button POM ring...
  • Page 75 Ultra Moto VR Manual 9.24 Moto Body Assembly Part No. Code No. Name 1 U110-292-000 20241801208 PCB fixing plate 1×2 2 U110-281-000 20641801057 Moto body 1×2 3 U110-285-000 20241801202 Middle cover fixing plate 2×2 4 U110-287-000 20241801129 Body outside fixing plate 4×2...
  • Page 76 Ultra Moto VR Manual 9.25 Shaking Assembly Part No. Code No. Name 1 U110-443-000 20106000108 Bearing 2×2 2 U110-277-000 20241801197 Pressing plate 1×2 3 U110-275-000 20241801150 Wheel gear pin 1×2 4 U110-279-000 20241801151 Wheel gear 1×2 5 U110-278-000 20241801198 Sensor supporting plate 1×2...
  • Page 77 Ultra Moto VR Manual Part No. Code No. Name 1 U110-263-000 20241801218 Aluminum handle 2×2 2 U110-445-000 25102000044 Handle cap 2×2 3 U110-260-000 20641801032 Handle rubber 2 2×2 4 U110-444-000 25102000037 Handle protective rubber2×2 5 U110-261-000 20241801217 Washer 2×2 6 U110-258-000 20641801031 Handle rubber 1 2×2...
  • Page 78 Ultra Moto VR Manual 9.27 Decal 03/03/2020...
  • Page 79 Ultra Moto VR Manual Part No. Code No. Name 1 U110-737-000 20541801023 Top POP plastic 2 U110-718-000 20541801002 L jet decal 3 U110-719-000 20541801003 R jet decal 4 U110-729-000 20541801014 L1 tube decal 5 U110-730-000 20541801015 L2 tube decal 6 U110-731-000 20541801016...
  • Page 80 Ultra Moto VR Manual 03/03/2020...
  • Page 81 Ultra Moto VR Manual Part No. Code No. Name 1 U110-716-000 20541801B005 Air compressor decal 1 2 U110-714-000 20541801B003 Warning decal 3 U110-710-001 20541801A012A PC instruction 4 U110-706-001 20541801A008A Wiring decal 5 U110-753-000 20541801A017 Headset instruction 2 6 U110-713-000 20541801B002...
  • Page 82 Ultra Moto VR Manual 9.28 Electrical Component Part No. Code No. Name 1 U110-466-000 22002015021 BG5050RGB light strip 1650mm×2(64.96in×2) 2 U110-604-000 22002015019 BG5050W light strip 6150mm(242.12in) U110-470-000 21201043003 43'' monitor U110-475-001 23307050011 DVI cable U110-469-000 23301018002 Power cord 4 U110-485-000 22002019001 LPD6803S light strip 3150mm×2(124.01in×2) 5 U110-466-000 22002015021 BG5050RGB light strip 400mm×2(15.74in×2)
  • Page 83 Ultra Moto VR Manual Part No. Code No. Name 1 U110-806-000 21108000009 Router U110-612-000 22702010033 Fan(for 220V) U110-610-000 22702010032 Fan(for 110V) U110-482-000 22702000010 Fan net U110-492-000 22702010025 DC fan 3×2 U110-482-000 22702000010 Fan net 6×2 U110-612-000 22702010033 Fan(for 220V) U110-610-000 22702010032...
  • Page 84 Ultra Moto VR Manual Part No. Code No. Name 1 U110-922-000 20741801005 IO control board 1×2 2 U110-404-000 25101120053 3 way 2 position solenoid valve 2×2 3 U110-484-000 22803010016 Amplifier 1×2 4 U110-455-000 21601000093 Transformer 1×2 5 U110-473-000 21714000148D Fuse board(green holder) 1×2...
  • Page 85 Ultra Moto VR Manual Headset cable Headset cable Part No. Code No. Name U110-453-000 21107270009 PC shell(with power supply and fan)1×2 U110-918-000 26601101670 Mainboard 1×2 U110-919-000 26601101672 1×2 U110-920-000 26601101673 1×2 U110-925-000 26601101674 Video card 1×2 U110-926-000 26601101675 Protect board 1×2...
  • Page 86 Ultra Moto VR Manual Part No. Code No. Name 1 U110-491-000 23000000006 Counter U110-488-000 29750882003 POT board U110-490-000 22403000001 POT knob 3 U110-478-001 22402010001 Button 4 U110-463-000 22606000050 Toggle switch 2 5 U110-600-000 22801000078 Woofer 6 U110-494-000 29741801009 Pedal PCB 1×4...
  • Page 87 Ultra Moto VR Manual Part No. Code No. Name 1 U110-923-000 20741801007 Hardware control board 2×2 2 U110-924-000 20741801008 Sensor 4×2 Part No. Code No. Name 1 U110-620-000 29741801013 Motor drive board 1×2 2 U110-621-000 21903000002 Fuse 1×2 03/03/2020...
  • Page 88 Ultra Moto VR Manual Part No. Code No. Name Headset wire 1 U110-537-000 408090011 5000mm(196.85in) shield Anti-theft iron 2 U110-538-000 25108020005 1 bag wire www.universal-space.com 03/03/2020...

  • Page 89: Air Compressor Instruction

    Ultra Moto VR Manual 10. AIR COMPRESSOR INSTRUCTION 10.1.Introduction Our company’s oil free air compressor to use of high-quality, the big flow of oil-free piston compressor swing as a power source, can provide a stable source of oil free gas, avoid the oil patches into the human body, and can avoid terminal machines because of the non-oil pipeline caused a breakdown of oil.
  • Page 90 Ultra Moto VR Manual 10.3 Overall Construction 03/03/2020...
  • Page 91 Ultra Moto VR Manual 1 covery 17 valve 33 stator 49 nut 2 left fan 18 valve 34 bearing 6203-2Z 50 wheel 3 left crankcase 19 valve plate 35 adjustment washer 51 bolt 4 connecting rod 20 washer 36 vibration column...
  • Page 92 Ultra Moto VR Manual compressor. It should be add power stabilizer or booster, to make the use voltage up to standard voltage. 4.6 By using, the air holder of the air compressor will condense a small amount of moisture content, so must be drained regularly, generally drainage once a week. Switch off...
  • Page 93 Ultra Moto VR Manual 10.6 Malfunction Analysis And Preserve Fault characteristic Possible cause Exclude method Plug has no power Open the power. Air compressor can't Check whether the Over-current running electrical connections of the protection or motor have no abuzz...
  • Page 94 Ultra Moto VR Manual Fault characteristic Possible cause Exclude method The air of the Check each joint have compressor and steam leakage the pipeline phenomenon or not. system is (Can use suds to divulged. check.) When the compressor keep Open the cylinder running, but the pressure can’t...
  • Page 95 Ultra Moto VR Manual 10.7 Gas Circuit Elementary Diagram 03/03/2020...

  • Page 96: Wiring Diagram

    Ultra Moto VR Manual 11. WIRING DIAGRAM 03/03/2020...
  • Page 97 Ultra Moto VR Manual 03/03/2020...
  • Page 98 Ultra Moto VR Manual 03/03/2020...
  • Page 99 Ultra Moto VR Manual 03/03/2020...
