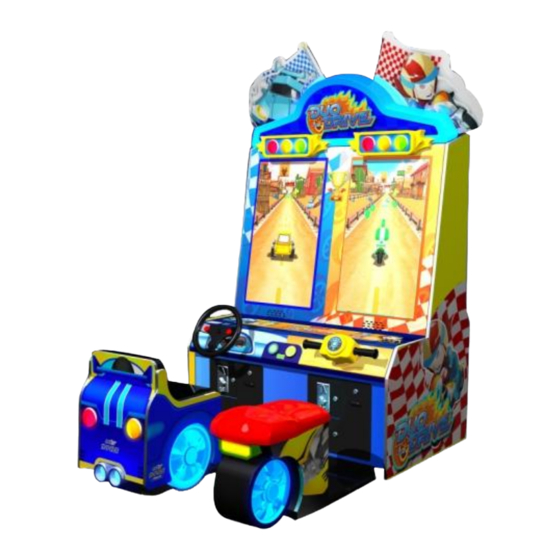

UNIS DUO DRIVE Operation Manual
  1. Manuals
  2. Brands
  3. UNIS Manuals
  4. Arcade Game Machines
  5. DUO DRIVE
  6. Operation manual

UNIS DUO DRIVE Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Operation Manual
www.universal-space.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DUO DRIVE and is the answer not in the manual?

Questions and answers

Chris
May 29, 2025

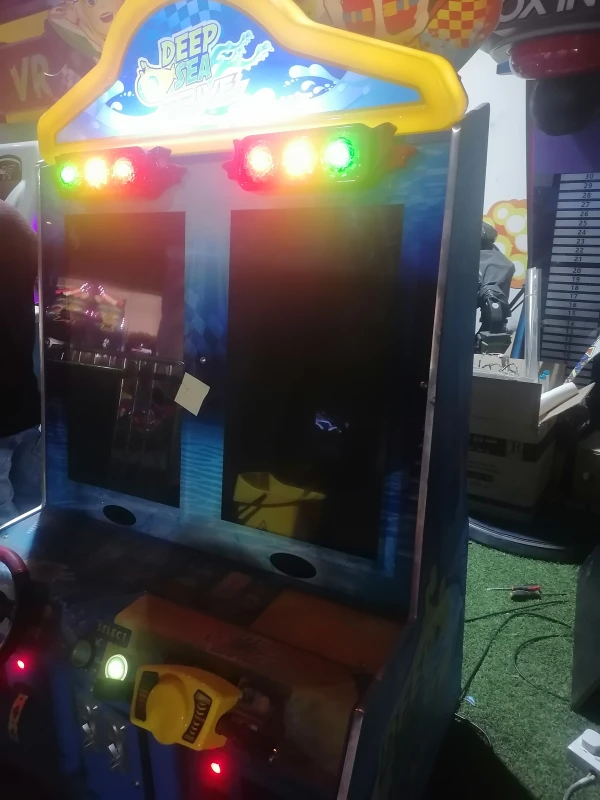

Hello Sir Mam We have a Duo Drive Machine we just want to ask if what was the AMD EYEFINITY settings coz we replaced a new monitor, it doesn't view the display accurately, if its possible for us to share the default settings on it as well as the display settings.. Thank you

User image 6837cfd176dac
0

Related Manuals for UNIS DUO DRIVE

Summary of Contents for UNIS DUO DRIVE

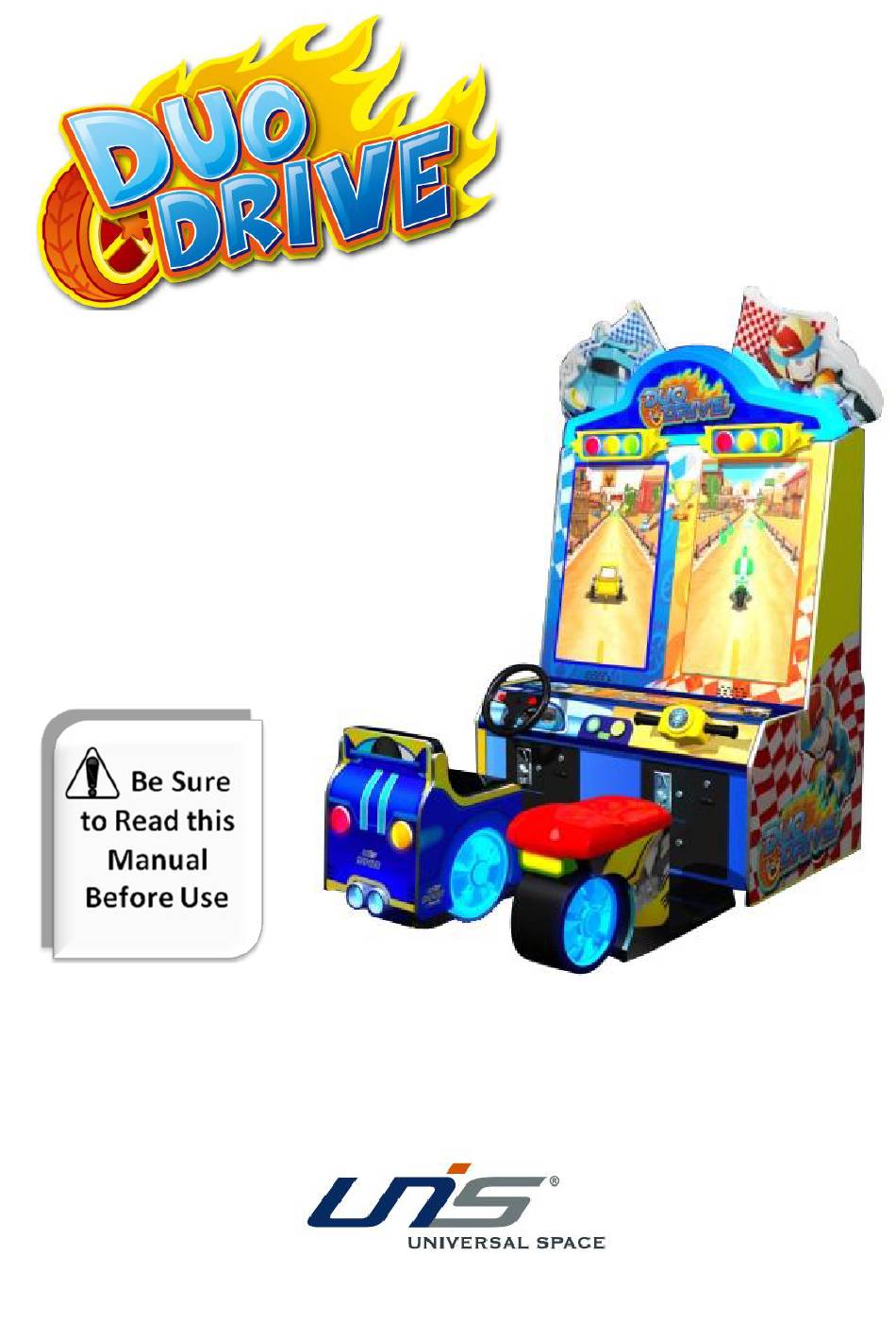

  • Page 1 Operation Manual www.universal-space.com...

  • Page 2: Table Of Contents

    DUO DRIVE CONTENT IMPORTANT SAFETY INSTRUCTIONS............2 1. SPECIFICATIONS..................4 2. PACKAGE CONTENTS................5 3. PART NAME....................6 4. SET UP & INSTALLATION.................7 5. HOW TO PLAY..................11 6. GAME OPTION..................11 7. ERROR MESSAGE AND RECOVERY............. 14 8. MAINTENANCE & INSPECTION.............17 9.

  • Page 3: Important Safety Instructions

    DUO DRIVE Thank you for purchasing DUO DRIVE. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 4 DUO DRIVE Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 5: Specifications

    DUO DRIVE 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz; Min. Power consumption: 320W Max. Power consumption：360W Dimensions： W43.50×D 58.07×H 78.93 in Weight： Approximately 485.01 lb Part No: D120 Model No: C-419 NOTICE: After turning off the game, please wait at least 1 minute before restarting again.

  • Page 6: Package Contents

    DUO DRIVE 2. PACKAGE CONTENTS Open the package and make sure all the items are included:  1 x Body Assembly  Following accessories Part NO. Code No. Name Spec. Illustration English D120-801-000 Manual (170401) Φ5×20mm D120-802-000 21901000012 Fuse(220V) T5A 250VAC Φ5×20mm...

  • Page 7: Part Name

    DUO DRIVE 3. PART NAME Marquee Assy. Monitor Assy. Speaker Coin mech. Control panel Assy. Seat Assy. Wooden box Assy. Ticket dispenser 06/15/2019...

  • Page 8: Set Up & Installation

    DUO DRIVE 4. SET UP & INSTALLATION This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid  Place the unit on a dry level surface  Ventilation openings in the back of the unit must not be obstructed by objects or by wall.
  • Page 9 DUO DRIVE Before processing with assembly assure you have the following tools. Name Picture Cross screwdriver Step 1 Connect cables 2. Find the cable from the base at the right corner. 1. Use the key to open the right ticket door.
  • Page 10 DUO DRIVE Step 2 Connect the L&R POP board to the main cabinet. Step 3 Connect the seat assembly to the main cabinet. 4.4 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation:...
  • Page 11 DUO DRIVE 4.5 Connecting Power WARNING: Check the voltage rating before you connect the equipment to an electrical outlet to ensure that the required voltage and frequency match the available power source. Please refer the label of the machine.  Do not plug the equipment power cables into an electrical outlet if the power cable is damaged.

  • Page 12: How To Play

    DUO DRIVE 5. HOW TO PLAY 1. Insert coin(s) to start. 2. Select 1 player or 2 players. 3. Use the steering wheel to dodge obstacles and pick up special props. 6. GAME OPTION 6.1 Adjustment button instruction Open the coin door there is a meter panel.
  • Page 13 DUO DRIVE 6.2.2 Game Mode Free Play Tickets Out Attract Mode Save Coins Volume Coins Per Game Reward Tickets Mercy Tickets Game time(s) Game Difficulty easy Score mode star Ticket mode call Attendant Back Note: Item Option Explanation Free Play ON/OFF Play game without credit in.
  • Page 14 DUO DRIVE 6.2.4 Game reset Reset Game Setting Note: Delete A1 Record Reset Game setting: Reset all settings to default. Clear Tickets Delete All Record: Clear all bookkeeping data, Back Clear Ticket: Clear owed tickets. 6.2.5 Select Language English 中文...

  • Page 15: Error Message And Recovery

    DUO DRIVE 7. TROUBLE SHOOTINGS 7.1 Common Problem Please confirm whether every connector connected tightly. Symptom Possible Cause Recommended action Frame assembly connector fell or Game will not Plug in connector tightly. is loose start Frame assembly fault Contact with CEC technical support.
  • Page 16 DUO DRIVE Symptom Possible Cause Recommended action Update the driver of the video card or Software problem. Display blue screen reinstall the system. when playing Hardware problem. Check the hardware one by one. Video card is loose or poor Playing normal, but Plug video card again.
  • Page 17 DUO DRIVE If you see following error signs showing on the display, please try the recommended action. Display Possible Cause Recommended action Check and reconnect the The connection part of the loose ports of the PC or IO IO board and PC are loose.

  • Page 18: Maintenance & Inspection

    DUO DRIVE 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components ensure good working condition 3.

  • Page 19: Overall Construction

    DUO DRIVE 9. OVERALL CONSTRUCTION 9.1 Assembly drawing 06/15/2019...
  • Page 20 DUO DRIVE Part No. Code No. Name SPEC. D120-001-000 29941317B001 Wooden cabinet 748×1203×1739 D120-002-000 29941317002 PC assembly Assembly D120-003-000 29941317B003 Control panel assembly Assembly D120-101-000 20641317B001 Console plate δ1 black EVA D120-102-000 20541317B003 Console level decal Transparent plastic D120-103-000 20541317B002...
  • Page 21 DUO DRIVE 9.2 Indicator light Assembly Part NO. Code NO. Name D120-218-000 20241317B044 Plastic upper press plate Q235 δ15 D120-219-000 20241317B045 Indicator light seat bottom plate Q235 δ15 D120-220-000 20101020037 Indicator light seat ABS δ3 D120-221-000 20241317B054 Indicator light mounting plate SECCδ1.5...
  • Page 22 DUO DRIVE 9.3 Control panel Assembly Part NO. Code NO. Name SPEC. D120-114-000 20241317B009 Mounting base δ2 /δ1.5 blue D120-115-000 26300000001 Double curved hinge 4” Automotive dynamic D120-013-000 29941317B006 Assembly assembly Motorcycle dynamic D120-014-000 29941317B007 Assembly assembly D120-116-000 20241317B021 Sleeve...
  • Page 23 DUO DRIVE 9.4 Motorcycle steering wheel Assembly Part NO. Code NO. Name SPEC. D120-121-000 20241317B015 Steering wheel base Q235 D120-201-000 20241518D024A Left handlebar Q235 D120-123-000 20641317006 Gloves D120-124-000 20241317031 Washer 202 stainless steel D120-125-000 20641317B005 Block column Polyurethane D120-126-000 20641317B006...
  • Page 24 DUO DRIVE 9.5 Automotive dynamic Assembly 06/15/2019...
  • Page 25 DUO DRIVE Part NO. Code NO. Name SPEC. D120-134-000 20241317015 Mounting base δ2.5 black Q235 D120-135-000 20106000175 Deep groove ball bearing 6004-2Z D120-136-000 20241317B012 Automobile shaft Black 45# D120-137-000 20241317B012 Mounting cover δ2.5 Black Q235 Automobile positioning D120-138-000 20241317025 δ3 Black Q235...
  • Page 26 DUO DRIVE 9.6 Motorcycle dynamic Assembly 06/15/2019...
  • Page 27 DUO DRIVE Part NO. Code NO. Name SPEC. D120-151-000 20241317015 Mounting base δ2.5 black Q235 D120-152-000 20106000175 Deep groove ball bearing 6004-2Z D120-153-000 20241317B012 Automobile shaft Black 45# D120-154-000 20241317B012 Mounting cover δ2.5 Black Q235 Motorcycle positioning D120-155-000 20241317027 δ3 Black Q235...
  • Page 28 DUO DRIVE 9.7 Display Assembly Part NO. Code NO. Name SPEC. D120-409-001 21201032018 32”display LT32BN82 D120-165-000 20241317032 Monitor mounting plate δ1.5 SECC Cross recessed pan M4×12 D120-304-000 20101020035 head screw suite Color zinc D120-166-000 20641317011 Display vertical plate 720×15 D120-167-000...
  • Page 29 DUO DRIVE 9.8 Automotive seat Assembly 06/15/2019...
  • Page 30 DUO DRIVE Part NO. Code NO. Name SPEC. D120-170-001 20241317B029A Automobile seat frame δ1.5 blue Q235 M8×15Adjustable feet M8×15 white D120-171-000 25900022001 D120-172-000 20641317B010 Antiskid plate Black D120-173-000 20241317B030 Connecting plate Black Q235 D120-174-000 20241317B031 Left side press plate Black Q235...
  • Page 31 DUO DRIVE 9.9 Motorcycle seat Assembly Part NO. Code NO. Name SPEC. D120-186-000 20241317B038 Motorcycle seat frame δ1.5 blue Q235 M8×15 white D120-187-000 25900022001 M8×15Adjustable feet D120-188-000 20641317B014 Antiskid plate Black D120-189-000 20241317B039 Connecting plate Black Q235 D120-190-000 20241317B031 Left side press plate...
  • Page 32 DUO DRIVE 9.10 Coin door Assembly Part NO. Code NO. Name SPEC. D120-315-000 20210911042 Door frame δ2 black Q235 D120-316-000 20210911047 Coin door δ1.5 black Q235 D120-317-000 25300171001 171A lock 171A D120-418-000 22301000001 Coin mech. Electronic comparison D120-319-000 20210911046 Inner coin box δ1.2 black Q235...
  • Page 33 DUO DRIVE 9.11 Dongle Fixed Assembly Part NO. Code NO. Name SPEC. D120-325-000 20241317B004 Dongle seat Q235 δ1 D120-326-000 20241317011 Dongle plate SECCδ1 D120-327-000 41300000003 U disk D120-328-000 20102100010 Hexagon nuts with flange stainless steel M3 Cross recessed pan head...
  • Page 34 DUO DRIVE 9.12 Electrical parts1. 】 Part NO. Code NO. Name SPEC. D120-401-002 22002015017 BG5050B light strip-blue RXBG5050B-BB60Z/M D120-402-001 22003080028 5630 light W5630-LC30cm-60z/m D120-403-001 22003080031 5630 light W5630-LC5cm-60z/m D120-404-000 22003070005 Mushroom lamp L-025 red D120-405-000 22003070006 Mushroom lamp L-025 yellow...
  • Page 35 DUO DRIVE Electrical parts2. 06/15/2019...
  • Page 36 DUO DRIVE Part NO. Code NO. Name SPEC. D120-428-001 21102000051 A4 CPU:A4-6300 D120-412-000 23301000001 Power cord 10A/250V-1.8M 15PVGA Video D120-431-000 23307000006 DB15M-DB15M Cable D120-482-001 22702010032 4” 110V D120-483-000 22702000003 3” 110V D120-429-001 41300000005 U disk Stereo audio D120-437-000 23305000003 1.8M...
  • Page 37 DUO DRIVE 9.13 Decals1. Part NO. Code NO. Name Spec. D120-701-000 20541317B001 Marquee decal 974×243×5 D120-702-000 20541317B002 Display decal 1068×920×5 D120-703-000 20541317B003 Control panel decal 1093×191×3 D120-704-000 20541317B004 POP L-side decal 437×473×5 D120-705-000 20541317B005 POP R-side decal 437×473×5 D120-706-000 20541317B006...
  • Page 38 DUO DRIVE Decals2. Part NO. Code NO. Name Spec. D120-718-000 25601000037 High voltage (big) 62×88 D120-719-000 25600000100 English counter decal B 88X35 D120-720-000 25600000091 Line mark decal 12X12 D120-721-000 25601000017 SW decal B 8×18 D120-722-000 25601000074 Fuse T5A/250V 33X6 D120-723-000...
  • Page 39 DUO DRIVE 06/15/2019...
  • Page 41 WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com...
