Summary of Contents for UNIS Pirate’s Hook 4p

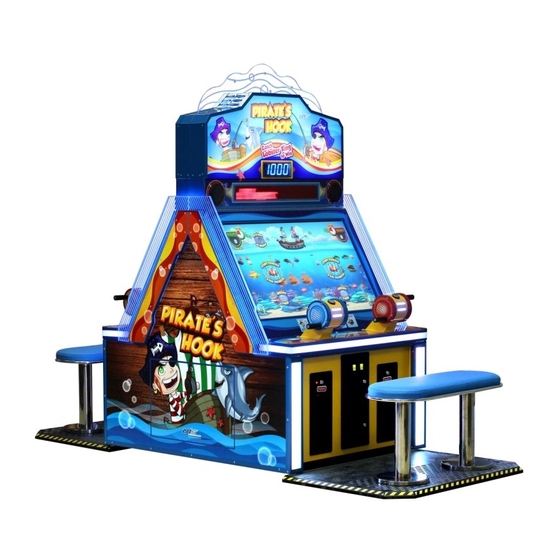

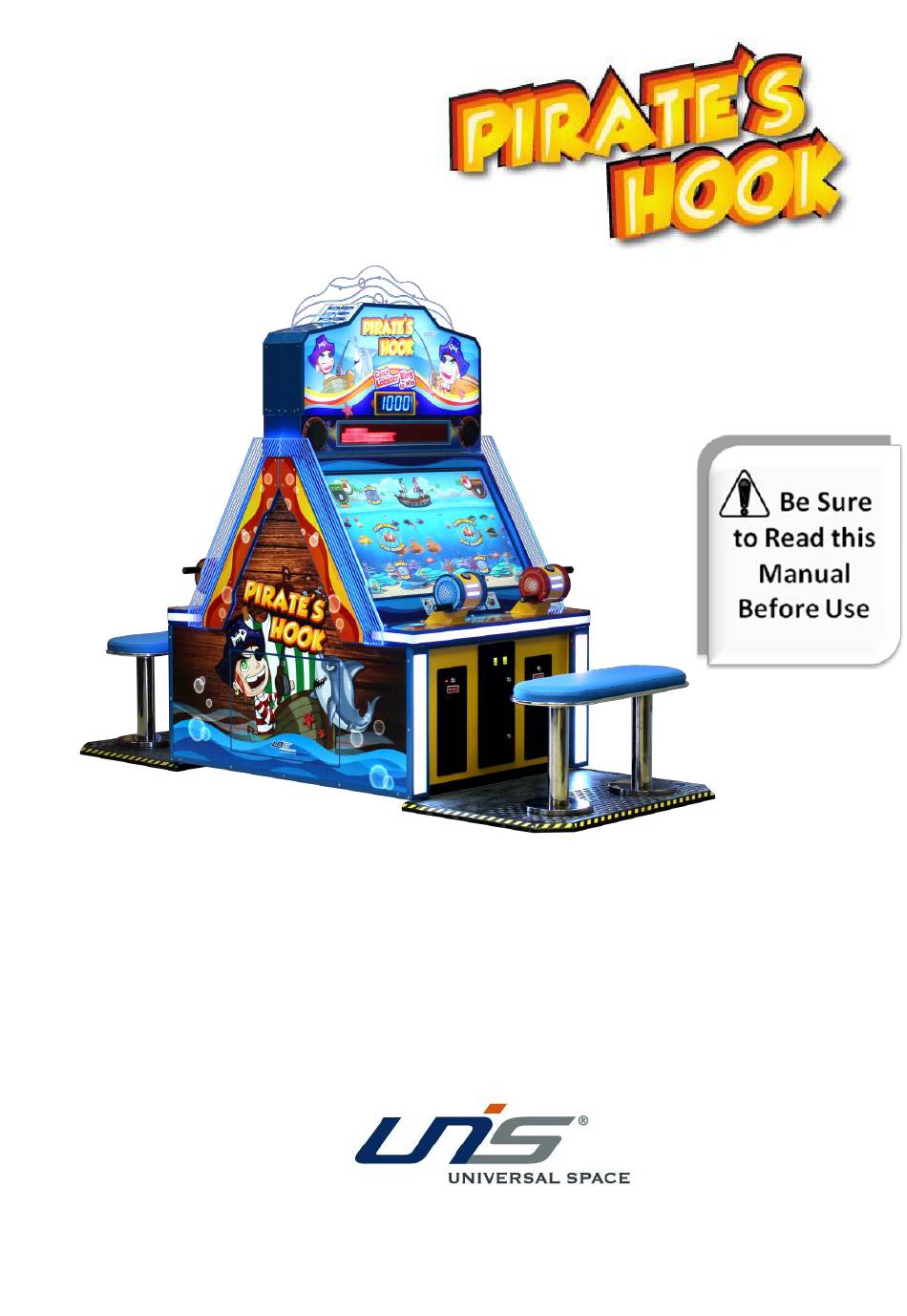

  • Page 1 Operation Manual www.universal-space.com...
  • Page 2 Pirate’s Hook 4p Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com 06/25/2019...

  • Page 3: Table Of Contents

    Pirate’s Hook 4p Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ............... 3 1. SPECIFICATIONS ....................5 2. PACKAGE CONTENTS .................... 6 3. PART NAME ......................7 4. SET UP & INSTALLATION ..................8 5. HOW TO PLAY ...................... 11 6. GAME OPTIONS ....................12 7.

  • Page 4: Important Safety Instructions

    Pirate’s Hook 4p Manual Thank you for purchasing Pirate’s Hook. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Pirate’s Hook 4p Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 6: Specifications

    Pirate’s Hook 4p Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; AC220-240V 50/60Hz Min. Power consumption: 210W Max. Power consumption: 380W Dimension: W 106.57×D 42.29×H 80.43 in Weight：Approximately 705.48lb Part No: P113 Model No: C-363 NOTICE: After turning off the game, please wait at least 1 minute before restarting again.

  • Page 7: Package Contents

    Pirate’s Hook 4p Manual 2. PACKAGE CONTENTS Open the package and make sure all the items are included: 1. Following accessories Part No. Code Name Picture P113-451-000 25300171002 (171) P113-452-000 25300172002 (171B) P113-450-000 23301010020 Power cord Fuse P113-446-000 21901000013 (Φ5×20mm T10A) Manual P113-740-000 41460837083 (170829)

  • Page 8: Part Name

    Pirate’s Hook 4p Manual 3. PART NAME Marquee Monitor Control panel Cabinet Fishing mech. Ticket payout Coin door Stool assembly 06/25/2019...

  • Page 9: Set Up & Installation

    Pirate’s Hook 4p Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid. ...
  • Page 10 Pirate’s Hook 4p Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Play area: 20 in Service area:10in Service area 10 in 10 in Play area 06/25/2019...
  • Page 11 Pirate’s Hook 4p Manual 4.4 Connecting Power WARNING: Check the voltage rating before you connect the equipment to an electrical outlet to ensure that the required voltage and frequency match the available power source. Please refer the label of the machine. ...

  • Page 12: How To Play

    Pirate’s Hook 4p Manual 5. HOW TO PLAY 5.1 Game Interface Current tickets Play time Main play zone Current coins 5.2 How To Play The machine provides for 4 players at the same time. 1. Insert coin(s). 2. aim for your target, press the button to lower the hook.

  • Page 13: Game Options

    Pirate’s Hook 4p Manual 6. GAME OPTIONS 6.1 Testing Button Distribution: Open the coin door and there is a meter panel. Press Settings button to enter the setting menu. Settings button 6.2 Main Menu Options: Main Menu Game Mode Input Test Output Test Game Reset Language...
  • Page 14 Pirate’s Hook 4p Manual Name Option Description Score Board Please refer to 6.2.1.3 Game Difficulty 1 is the easiest, 4 is the hardest. Auto Play Game 5-20 seconds Time for player to play before auto play 10,20,30,40,50,60,70,80,90 Game Duration Play time setting seconds Resistance Setting Please refer to 6.2.1.4...
  • Page 15 Pirate’s Hook 4p Manual 6.2.1.2 Target Point Setting: Target Ticket Adjustment Range SM fish 0-100 point M fish 0-100 point LG fish 0-200 point Junk 0-10 point Target Ticket Adjustment Range Shark 0-500 point Octopus 0-500 point Lobster Mega Bonus 0-2000 point Note: When Fixed Ticket is 0 and target is defined as Ticket, Lobster Mega Bonus can be manual adjusted.The rest of the targets tickets are adjusted automatically base on the play...
  • Page 16 Pirate’s Hook 4p Manual 6.2.2 Input Test Input test Output test Player1 Resistance CoinMech 1 ON/OFF Player2 Resistance CoinMech 2 ON/OFF Player3 Resistance CoinMech 3 ON/OFF Player4 Resistance CoinMech 4 ON/OFF Player1 vibration ON/OFF CoinMech 5 ON/OFF Player2 vibration ON/OFF CoinMech 6 ON/OFF Player3 vibration...

  • Page 17: Trouble Shootings

    Turn on power SW again. If appeared Circuit protector make power SW again and again, machine has Power cutting in cutting state anomaly. Please contact with UNIS Service. Coin mech. fault or sample coin Change coin mech. or sample coin. Game will not not installed.
  • Page 18 Pirate’s Hook 4p Manual Symptom Possible Cause Recommended action Update the driver of the video card or Software problem. Display blue screen reinstall the system. when playing Hardware problem. Check the hardware one by one. Playing normal, but Video card is loose or poor Plug video card again.
  • Page 19 Pirate’s Hook 4p Manual 7.2 System Recovery Operation (NOTE: Do not disconnect power during this process.) 1. Turn off the game. Remove recovery stick from the machine. (Note: This process may take up to 60 minutes) Insert the recovery stick into the port at the back of the computer. 2.

  • Page 20: Maintenance & Inspection

    Pirate’s Hook 4p Manual 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components ensure good working condition 3.

  • Page 21: Overall Construction

    Pirate’s Hook 4p Manual 9. OVERALL CONSTRUCTION 9.1 Wooden Part Assembly 06/25/2019...
  • Page 22 Pirate’s Hook 4p Manual Part No. Draw No. Name Material 1 P113-001-000 29941122S001A Wooden frame Assembly 2 P113-103-000 20241122S021 Hinge plate Metal plateδ1.5 3 P113-104-000 20241122S020 Light bar mounted plate Metal plateδ0.8 4 P113-105-000 20241122S019 Button light mounted plate Metal plateδ1.0 5 P113-106-000 20241122S001 Case lock assembly plate Q235 δ1.5 black 6 P113-107-000 20241122S002...
  • Page 23 Pirate’s Hook 4p Manual Sided board R supported 33 P113-917-000 20341122S015 MDF blue JQ11038 board 34 P113-918-000 20341122S016 computer partition MDF blue JQ11038 9.2 Marquee Assembly Part No. Draw No. Name Material 1 P113-002-000 29941122S002A Marquee frame Assembly 2 P113-120-000 20241122S018 Display board fixed plate1 Metal plateδ1.0 3 P113-121-000 20241122S013...
  • Page 24 Pirate’s Hook 4p Manual 19 P113-924-000 20341122S022 speaker front board 20 P113-925-000 20341122S023 Wind tunnel partition 1 MDF blue JQ11038 21 P113-926-000 20341122S024 Wind tunnel partition 2 MDF blue JQ11038 9.3 Control Panel Assembly Part No. Draw No. Name material Control panel P113-130-000 20241122S026 Q235 δ1.5 blue...
  • Page 25 Pirate’s Hook 4p Manual 9.4 Monitor Assembly Material Part No. Draw No. Name Q235 δ1.5 blue P113-134-000 20241122S030 Monitor front plate P113-135-000 20241122S031 Monitor side fixed plate Metal plate δ1.2 Monitor side fixed plate P113-180-000 20241122S071 Foam δ2 black P113-136-000 20241122S032 Monitor upper fixed plate Metal plateδ1.5 P113-608-000 20641122S008...
  • Page 26 Pirate’s Hook 4p Manual 9.1.5 Fishing mechanism assembly Part No. Draw No. Name Material P113-140-000 20241122S036 Fishing mech. frame Q235 δ1.5 yellow P113-143-000 20241122S039 Bearing seat Aluminum P113-144-000 20241122S040 Wheel 1 Stainless steel(201) P113-144-001 20241122S041 Wheel 2 Stainless steel(201) P113-144-002 20241122S042 Wheel 3 Stainless steel(201)
  • Page 27 Pirate’s Hook 4p Manual 9.6 Stool Assembly Part No. Draw No. Name Material P113-158-000 20241122S057 Stool base Welding black P113-157-000 20241122S056 Stool connected plate Q235 δ2 black P113-156-000 20241122S052 Stool rod 201 stainless steel P113-149-000 20241122S058 Strip light cover plate Q235 δ1 P113-150-000 20241122S059...
  • Page 28 Pirate’s Hook 4p Manual 9.7 Electrical Equipment Part: Part No. Draw No. Name Material P113-454-003 21102000051B Computer A4CPUA4-6300 1723, connector PCI Express P113-414-000 20741122S003 Sound card P113-456-000 23303030002 Serial wire 35cm P113-419-001 20841122007 Dongle Dongle for pirate’ s hook P113-437-000 23307010001 Video cable 1 (3.0M)
  • Page 29 Pirate’s Hook 4p Manual Part No. Draw No. Name Material P113-447-000 21412000001 Terminal 10A/15A/250V black P113-445-000 22601000005 Small rocket SW T125/55 P113-444-000 21902000006 Fuse socket R3-11 110V/250V/10A P113-446-000 21901000013 Fuse Φ5×20mmT10A 250VAC P113-442-000 23201000001 Filter YB10A1 10A/250V P113-441-000 23301018002 Power cord 3x18AWG 0.5M UL P113-429-000 23000000006...
  • Page 30 Pirate’s Hook 4p Manual Part No. Draw No. Name Material 12V white light Coin mech. indicating light P113-425-000 22201000028 socket socket P113-426-000 22003000018 LED bulb DC12V white 3LED P113-810-000 297441122S004 Side light PCB LED5050RGB-NC 21LED P113-422-000 22301000007 Coin mech. TW-800 II Ticket converted P113-811-000 21712000001...
  • Page 31 Pirate’s Hook 4p Manual 9.8 Decals Material Part No. Draw No. Name P113-701-000 20541122S001 Marquee decal Plastic Plastic P113-702-000 20541122S002 Control decal 1 Plastic P113-703-000 20541122S003 Control decal 2 P113-704-000 20541122S004 Both side decal 0.3PVC P113-705-000 20541122S005 Monitor decal 0.3PVC P113-706-000 20541122S006 L side decal 0.3PVC...
  • Page 32 Pirate’s Hook 4p Manual Part No. Draw No. Name Material P113-718-001 20541122S018A Uncertified 110V nameplate 1mmPVC P113-719-001 20541122S019A Uncertified 220V nameplate 1mmPVC P113-720-001 20541122S020A Certificated 220V nameplate 1mmPVC P113-721-001 20541122S021A Certificated 110V nameplate 1mmPVC P113-724-000 25600000001 Coin counter label White PVC100u P113-725-000 25600000002 Ticket counter label...
  • Page 33 Pirate’s Hook 4p Manual Part No. Draw No. Name Material P113-722-000 20541122S022 Power converted label White PVC100u P113-723-000 20541122S023 Computer label White PVC100u P113-341-000 25600000091 GND wire label White PVC100u 06/25/2019...
  • Page 34 Pirate’s Hook 4p Manual WIRING DIAGRAM 06/25/2019...
  • Page 35 Pirate’s Hook 4p Manual 06/25/2019...
