ITW SIMCO ION IQ Power Installation And Operating Instructions Manual page 11

Pin
1 Remote on/off optocoupler (-)
14 Remote on/off optocoupler (+)
2 Clean Bar Relay (common)*
3 Clean Bar Relay (norm close)*
16 Clean Bar Relay (norm open)*
8 Fault Relay (common)
4 Fault Relay (normally closed)*
17 Fault Relay (normally open)*
9 Bar On Relay (common)*
5 Bar On Relay (normal closed)*
18 Bar On Relay (normally open)
*30V 1A Rating on Contacts.
**1.6A Rating, Connect pins 12 & 24 in parallel and 13 & 25 in parallel.
IQ Power BPS
Description

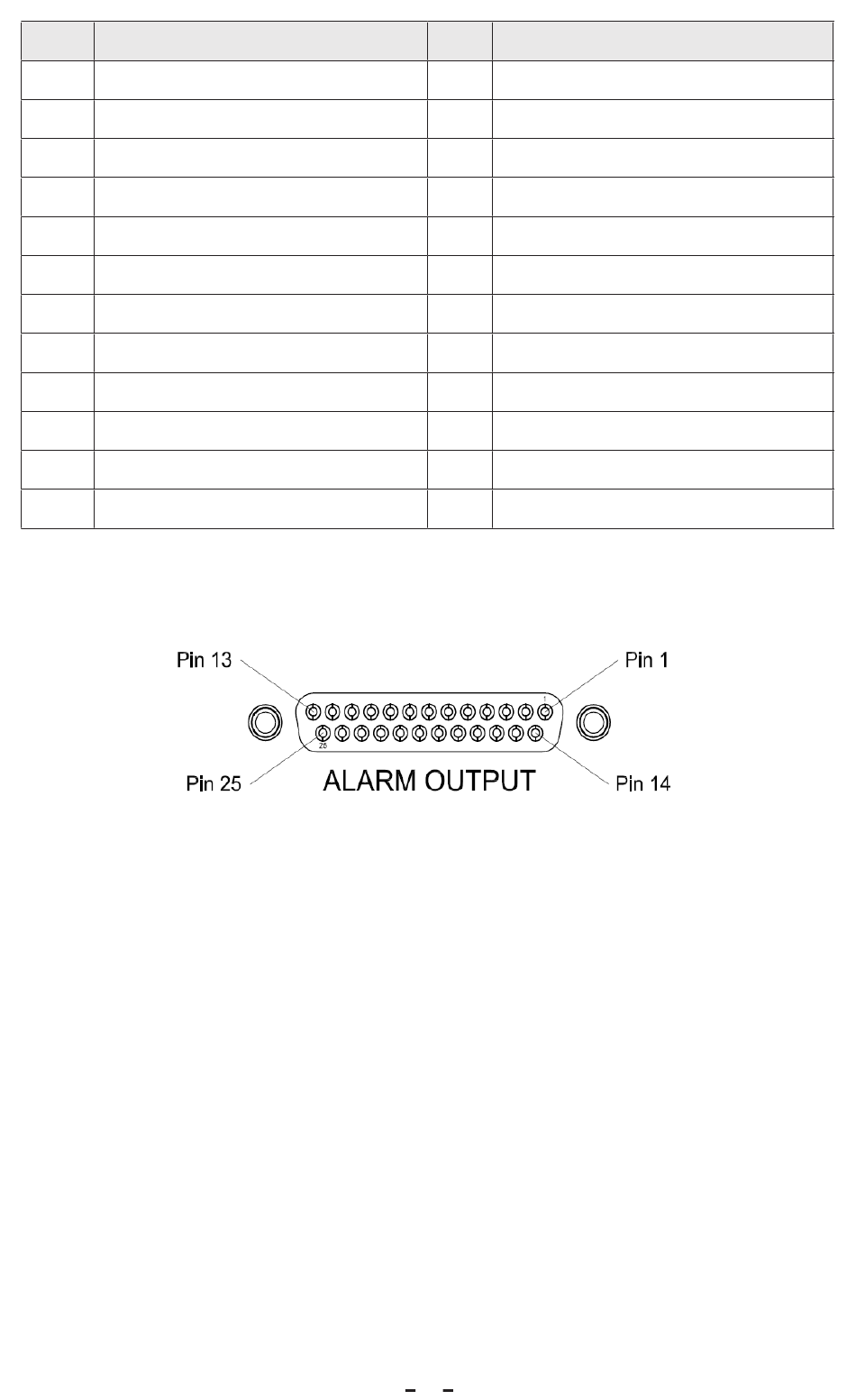

Figure 8. IQ Power BPS Power Supply Alarm Output Connections
Pin
10 No connection
6 No connection
19 No connection
11 Power Relay (common)*
7 Power Relay (normal closed)*
20 Power Relay (normally open)*
12 Power in (ground)**
24 Power in (ground)**
13 Power in (+24 VDC)**
25 Power in (+24 VDC)**
9
Description
5201249 Rev. D
