- Page 1 IQ Power Nozzle Static Neutralizing Nozzle INSTALLATION AND OPERATING INSTRUCTIONS 5201242 Rev. E IQ Power Nozzle...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. SAFETY WARNINGS ....................1 2. DESCRIPTION ......................2 Features ........................2 3. SPECIFICATIONS .....................2 4. INSTALLATION ......................3 Unpacking ......................3 Determining Nozzle Location ................3 Routing the High Voltage Cable ................3 Terminating the Nozzle(s) on the Cable ..............3 Making Air Connection and Mounting Nozzle(s) ..........6 5. -
Page 3: Safety Warnings
1. SAFETY WARNINGS NOTE – Statements identified with a NOTE indicate precautions necessary to avoid potential equipment failure. CAUTION – Statements identified with a CAUTION indicate minor or moderate injury is possible. WARNING – Statements identified with a WARNING indicate serious injury is possible. -
Page 4: Description
2. DESCRIPTION Electrostatic charges occurring during production processes often result in dust and debris being attracted to work in process, resulting in defects or contamination. The IQ Power Nozzle, used in conjunction with an IQ Power supply, provides static neutralization and cleaning ability. By neutralizing static charges, dust and debris are released from surfaces. -
Page 5: Installation
4. INSTALLATION Unpacking Carefully remove equipment from the carton and inspect the contents. NOTE: If any damage has occurred during shipment, notify the local carrier at once. A report should also be forwarded to Simco-Ion, 2257 North Penn Road, Hatfield PA 19440. See Section 9 (Warranty) for Return Shipment information. - Page 6 WARNING – Once the white insulation of the wires has been pierced by the pins in the back of the nozzle, that section of cable CAN NOT be reused and must be removed. After determining where each nozzle will be placed on the cable, the black outer jacket of the cable must be removed.

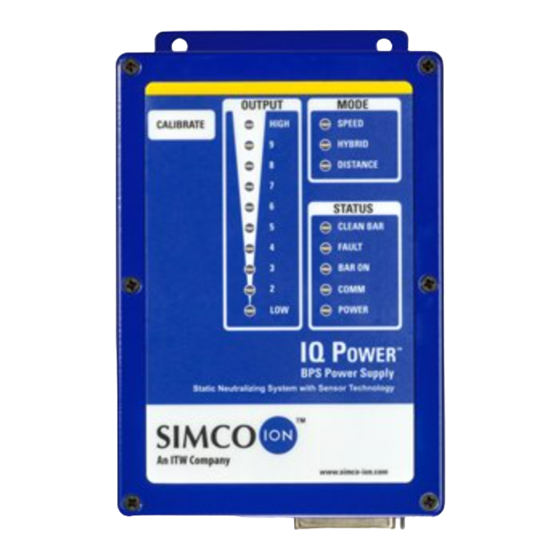

- Page 7 Figure 1. IQ Power BPS and Nozzles Figure 2. IQ Power Control Station, BPS and Nozzles 5201242 Rev. E IQ Power Nozzle...
-
Page 8: Making Air Connection And Mounting Nozzle(S)
Making Air Connection and Mounting Nozzle(s) To install the mounting bracket, place bracket over the air inlet on the back of the nozzle. Install desired air fitting through hole in bracket and thread firmly into the back of the nozzle. If using the right angle fitting, install the provided spacer over the threads of the fitting and thread firmly into place. -
Page 9: Maintenance
6. MAINTENANCE NOTE – Only qualified service personnel are to perform maintenance tasks. CAUTION – Electrical Shock Hazard De-energize all power supplies and lock out, if possible, before performing any maintenance tasks. WARNING – Fire Hazard Do not turn on power supply with any trace of alcohol or mineral spirits on the equipment. -
Page 10: Replacement Parts
With an IP-66 rating, the nozzle body may also be sprayed down without risk of moisture entering the high voltage region. NOTE – Do not soak nozzle or related components in alcohol or mineral spirits. Do not use harsh solvents such as lacquer thinner, naphtha or acetone. -
Page 11: Warranty
8. WARRANTY This product has been carefully tested at the factory and is warranted to be free from any defects in materials or workmanship. Simco-Ion will, under this warranty, repair or replace any equipment that proves, upon our examination, to have become defective within one year from the date of purchase. - Page 12 Simco-Ion 2257 North Penn Road Hatfield, PA 19440 (215) 822-6401 (800) 203-3419 www.Simco-Ion.com customerservice@Simco-Ion.com © 2019 Simco-Ion. Printed in the U.S.A. 5201242 Rev. E IQ Power Nozzle...
