Re-attaching the Original Stand

Reverse the process in the previous section to re-attach stand.

OOTEN:
Match "TOP SIDE" mark on stand to top side of the monitor when re-attaching stand.

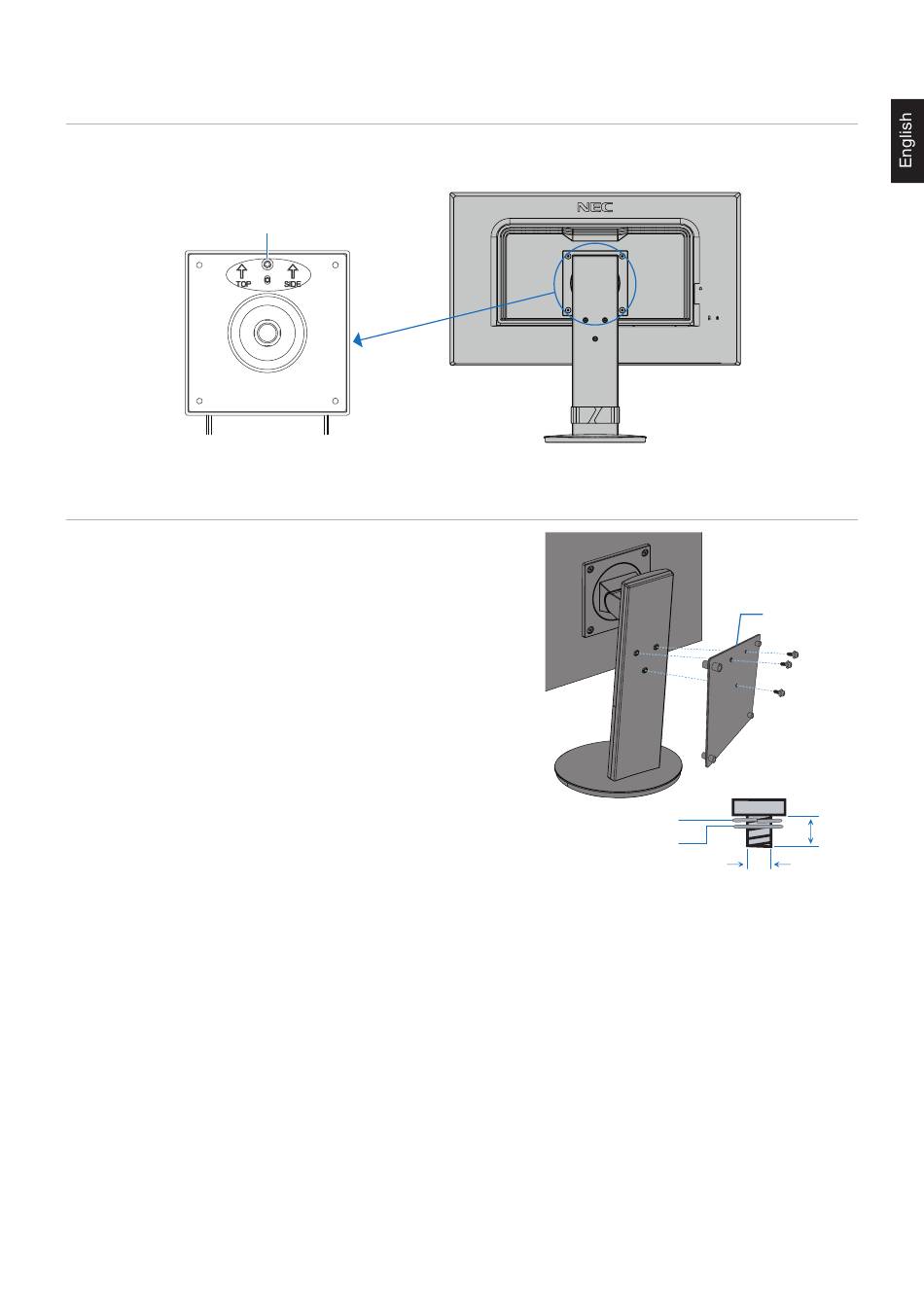

"TOP SIDE" mark
Please match top side
of the monitor

Attaching VESA Plate for Thin Client Computer

This LCD monitor is designed for mounting a thin client computer by using
a VESA plate and screws.
When attaching the VESA plate, use all included screws and fully
tighten them.
For mounting a thin client computer, please refer to the computer's manual.

OOTEN:  •
Make sure the monitor does not fall after attaching a thin client
computer.
 •
Do not mount a flexible arm on the VESA plate.
 •
Please make sure a thin client computer does not cover
ventilation holes on the monitor.
 •
Mounting on a thin client computer is the customer's
responsibility.
 •
Only use the screws that were attached the monitor or the
specified screws (Figure V.1).
Specifications of a thin client computer with bracket for mounting:
Maximum size: 184 (W) x 184 (H) x 63 (D) mm
Maximum weight: 2.5 Kg
Spring washer
English−19
VESA plate
Flat washer
M4
Figure V.1
Screws
16 mm
